2000 Yamaha Super JET (SJ700AY) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2000 Yamaha Super JET (SJ700AY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

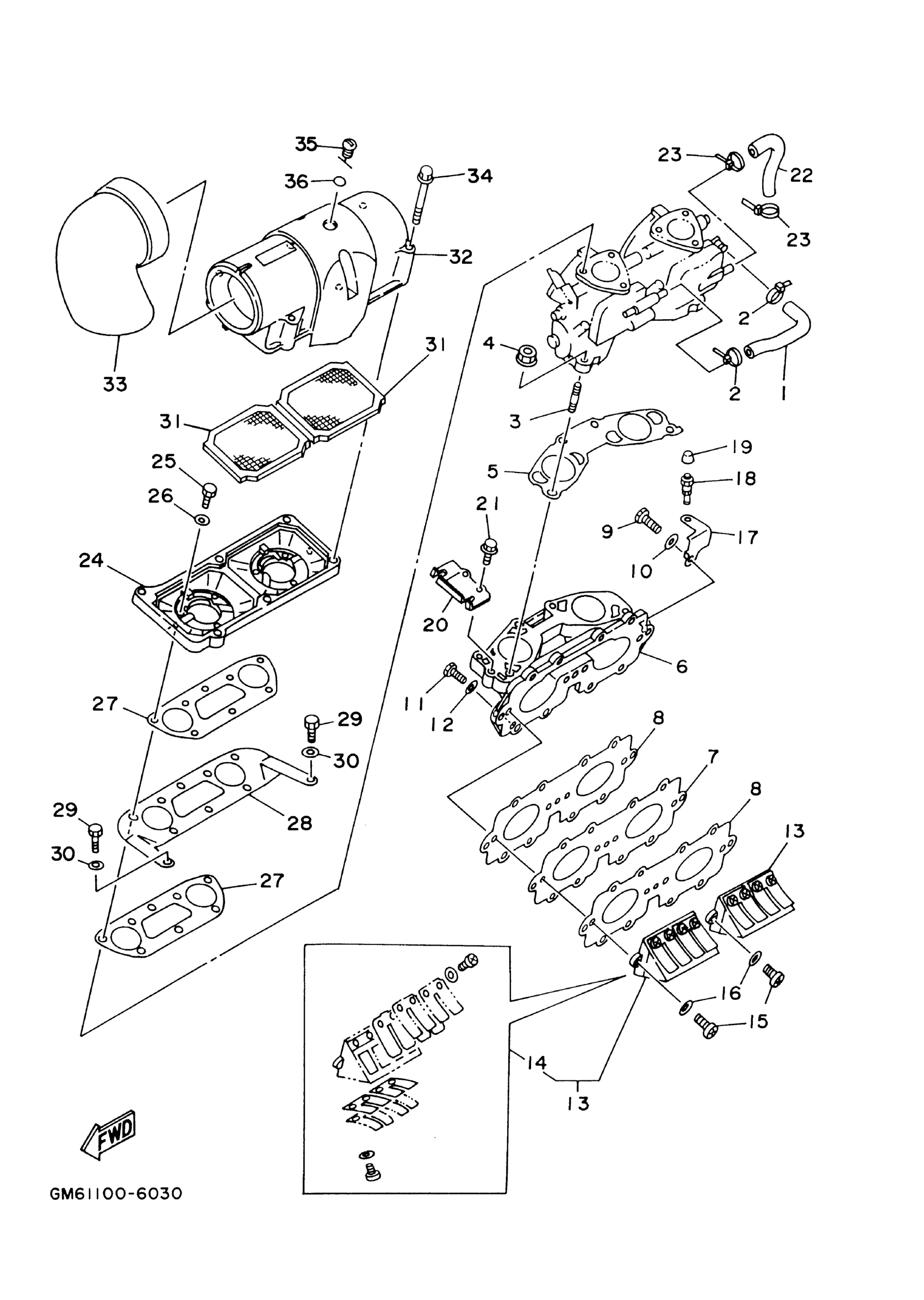

2000 Yamaha Super JET (SJ700AY) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 3

62T-24313-01-00

1

$11.49

In stock

2

CLAMP

90465-10098-00

1

$2.24

In stock

3

BOLT, STUD

90116-08M60-00

1

$4.62

In stock

4

NUT

90179-08M15-00

1

$8.99

In stock

5

. GASKET, MANIFOLD

62T-13556-00-00

1

$12.66

In stock

6

MANIFOLD, INTAKE

62T-13555-00-00

1

$133.49

In stock

7

. PLATE,REED VALVE

62T-13624-00-00

1

$19.98

In stock

8

. GASKET

62T-13566-00-00

1

$9.49

In stock

9

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

BOLT(62Y)

97013-06025-00

1

$1.37

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

REED VALVE ASSY

62T-13610-00-00

1

$163.99

In stock

14

. REED SET

62T-W0004-00-00

1

$98.99

In stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

16

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

17

PLATE

62T-14243-01-00

1

$18.49

In stock

18

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock

19

CAP, GREASE NIPPLE

663-45119-01-00

—

$1.86

In stock

20

PLATE

62T-14527-02-00

1

$18.49

In stock

21

BOLT, WITH WASHER(61B)

97513-06516-00

—

$1.66

In stock

22

PIPE 4

62T-24314-01-00

1

$9.22

In stock

23

CLAMP

90465-10098-00

1

$2.24

In stock

24

COVER, CARBURETOR 2

62T-14284-10-8S

1

$118.99

In stock

25

BOLT(62Y)

97013-06020-00

—

$1.31

In stock

26

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

27

1

$5.93

In stock

28

PLATE

62T-14255-00-00

1

$45.49

In stock

29

BOLT (661)

97013-06012-00

—

$4.71

In stock

30

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

31

ELEMENT, AIR CLEANER

62T-14451-00-00

1

$38.49

In stock

32

COVER, CARBURETOR 1

62T-14283-01-00

1

$50.99

In stock

33

PIPE

62T-14419-00-00

1

$78.99

In stock

34

BOLT, WITH WASHER

90119-05M02-00

1

$3.16

In stock

35

GROMMET

62T-14435-00-00

1

$3.95

In stock

36

. O-RING

93210-13M63-00

1

$3.84

In stock
