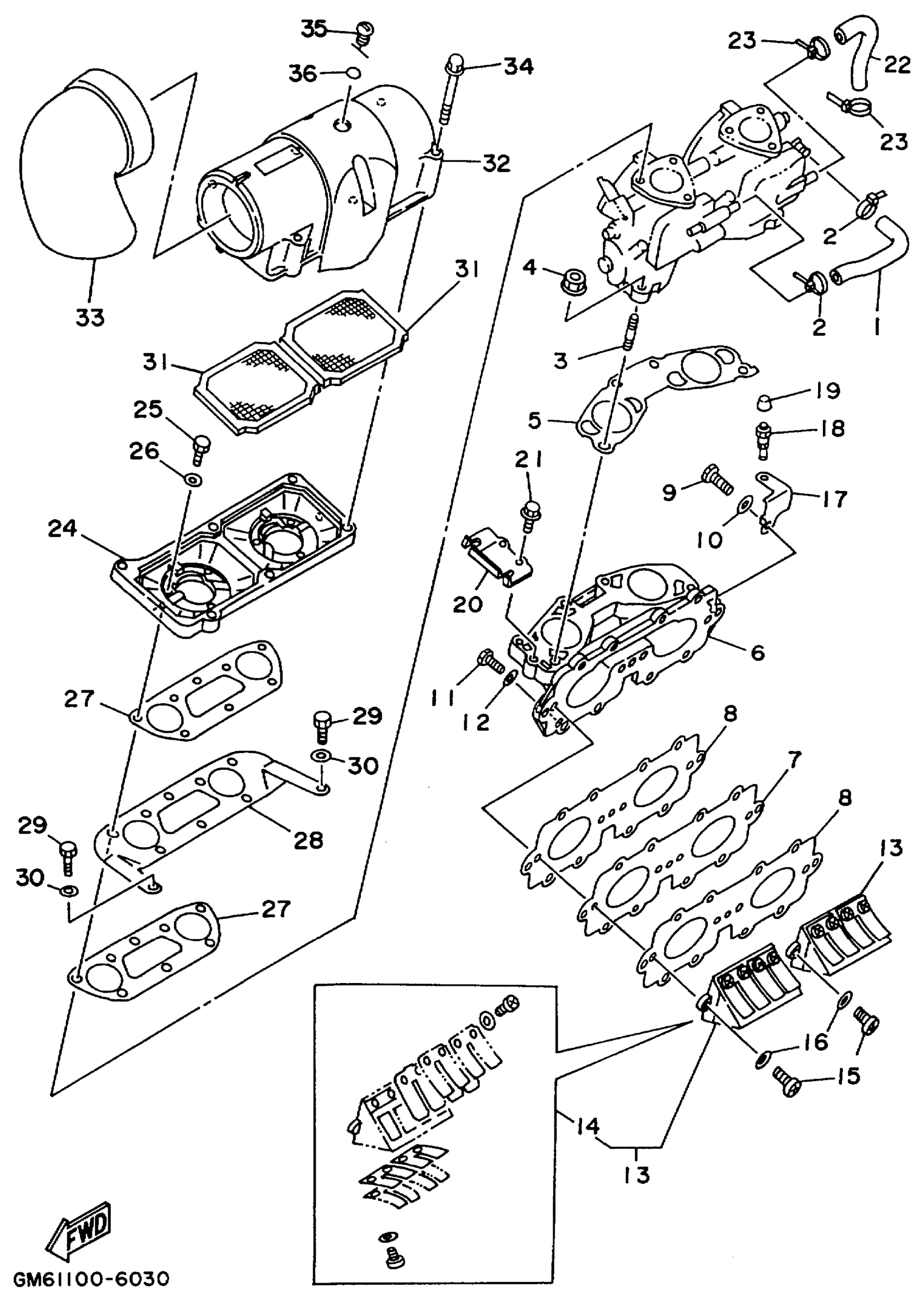

Yamaha SJ700AX (SUPER JET) GM6D 1999 INTAKE Diagram

#

Description
Price

1

PIPE 3

62T-24313-01-00

$9.82

2

CLAMP

90465-10098-00

$2.24

3

BOLT, STUD

90116-08M60-00

$4.41

4

NUT

90179-08M15-00

$6.83

5

. GASKET, MANIFOLD

62T-13556-00-00

$12.15

6

MANIFOLD, INTAKE

62T-13555-00-00

$127.93

7

. PLATE,REED VALVE

62T-13624-00-00

$19.10

8

. GASKET

62T-13566-00-00

$9.11

9

BOLT(3RV)

97014-06035-00

$1.54

10

WASHER, PLAIN (646)

92990-06600-00

$2.38

11

BOLT(62Y)

97013-06025-00

$1.31

12

WASHER, PLAIN (646)

92990-06600-00

$2.38

13

REED VALVE ASSY

62T-13610-00-00

$157.34

14

. REED SET

62T-W0004-00-00

$75.23

15

SCREW, PAN HEAD(6B0)

97885-05016-00

$3.80

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

PLATE

62T-14243-01-00

$18.37

18

NIPPLE, GREASE

61L-5169A-00-00

$8.81

19

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

20

PLATE

62T-14527-02-00

$18.37

21

BOLT, WITH WASHER(61B)

97513-06516-00

Unavailable

22

PIPE 4

62T-24314-01-00

$8.81

23

CLAMP

90465-10098-00

$2.24

24

COVER, CARBURETOR 2

62T-14284-10-8S

$114.69

25

BOLT(62Y)

97013-06020-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

$2.38

27

. GASKET, AIR COOLER COVER 1

62T-13674-00-00

$5.69

28

PLATE

62T-14255-00-00

$44.10

29

BOLT (661)

97013-06012-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

$2.38

31

ELEMENT, AIR CLEANER

62T-14451-00-00

$38.22

32

COVER, CARBURETOR 1

62T-14283-01-00

$49.99

33

PIPE

62T-14419-00-00

$76.46

34

BOLT, WITH WASHER

90119-05M02-00

$3.03

35

GROMMET

62T-14435-00-00

$3.79

36

. O-RING

93210-13M63-00

$3.69
