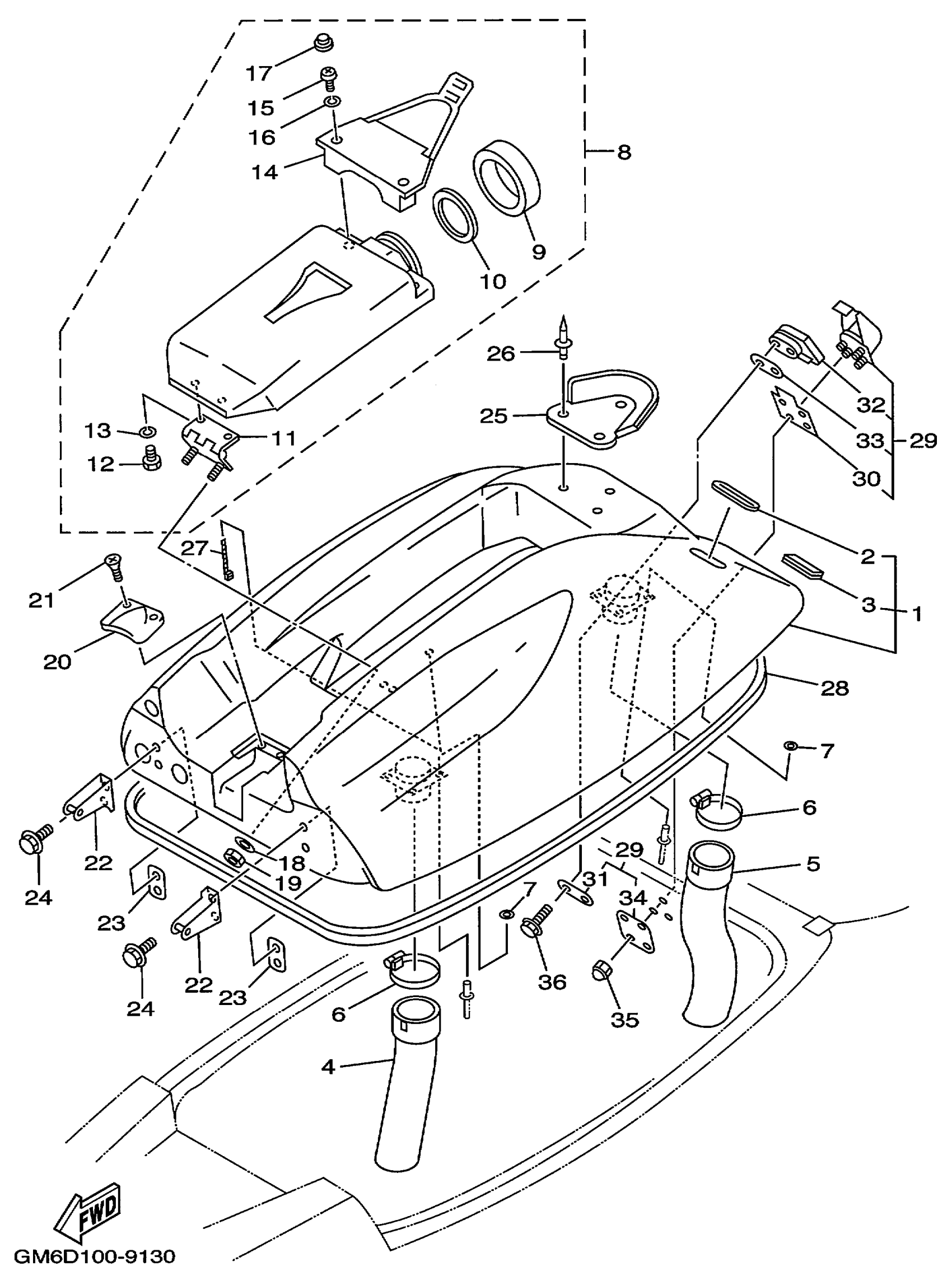

Yamaha SJ700AX (SUPER JET) GM6D 1999 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GM6-6516A-10-P0

Unavailable

2

. TRIM,HATCH 2

FX1-65116-10-00

$3.70

3

. TRIM 1

GM6-6516C-00-00

$3.64

4

HOSE,VENTILATOR 1

GM6-6213F-00-00

$118.17

5

HOSE, VENTILATOR 2

EW2-62137-00-00

$48.47

6

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

$15.65

7

. WASHER, PLAIN

92990-05200-00

$4.29

8

CASE,ASSY 1

FX1-6591A-10-00

Unavailable

9

. CAP, CASE

EW2-65912-00-00

$23.99

10

. PACKING, CASE

EW2-65913-00-00

$5.91

11

HINGE, LID

FX1-6517D-00-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

13

WASHER, SPRING

92995-06100-00

$2.95

14

BAND,CASE

FX1-6591K-00-00

$103.02

15

SCREW, PAN HEAD

98580-06016-00

$2.88

16

WASHER, SPRING

92995-06100-00

$2.95

17

CAP

FX1-6514F-00-00

$10.49

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

NUT, SELF-LOCKING

95720-06300-00

$1.82

20

PLATE, HATCH (FL1)

A00-62858-02-00

$9.08

21

YBS81-516 SCREW,O.HEAD TAPPING

97780-50316-00

Unavailable

22

STOPPER HATCH 2

GM6-65136-00-00

$24.98

23

PLATE, STOPPER HATCH 2

EW2-65137-00-00

$13.70

24

BOLT, WITH WASHER

90119-06900-00

$4.09

25

DAMPER, POLE

FX1-6514B-00-00

$104.53

26

RIVET (EU0)

90267-48938-00

$5.00

27

CLAMP

90601-20022-00

$2.80

28

PACKING

GM6-62664-01-00

$189.38

29

HATCH LOCK ASSY

EW2-62840-11-00

Unavailable

30

. PACKING, HATCH LOCK

EW2-62845-10-00

$6.82

31

. PLATE, HATCH LOCK

EW2-62846-00-00

$5.45

32

. HOOK, HATCH LOCK

EW2-62843-00-00

$23.99

33

. PACKING, HOOK

EW2-62847-00-00

$4.55

34

. PLATE, HOOK

EW2-62848-00-00

$4.55

35

NUT, FLANGE

95720-05300-00

$1.28

36

BOLT WITH WASHER (EW2)

90119-05923-00

Unavailable
