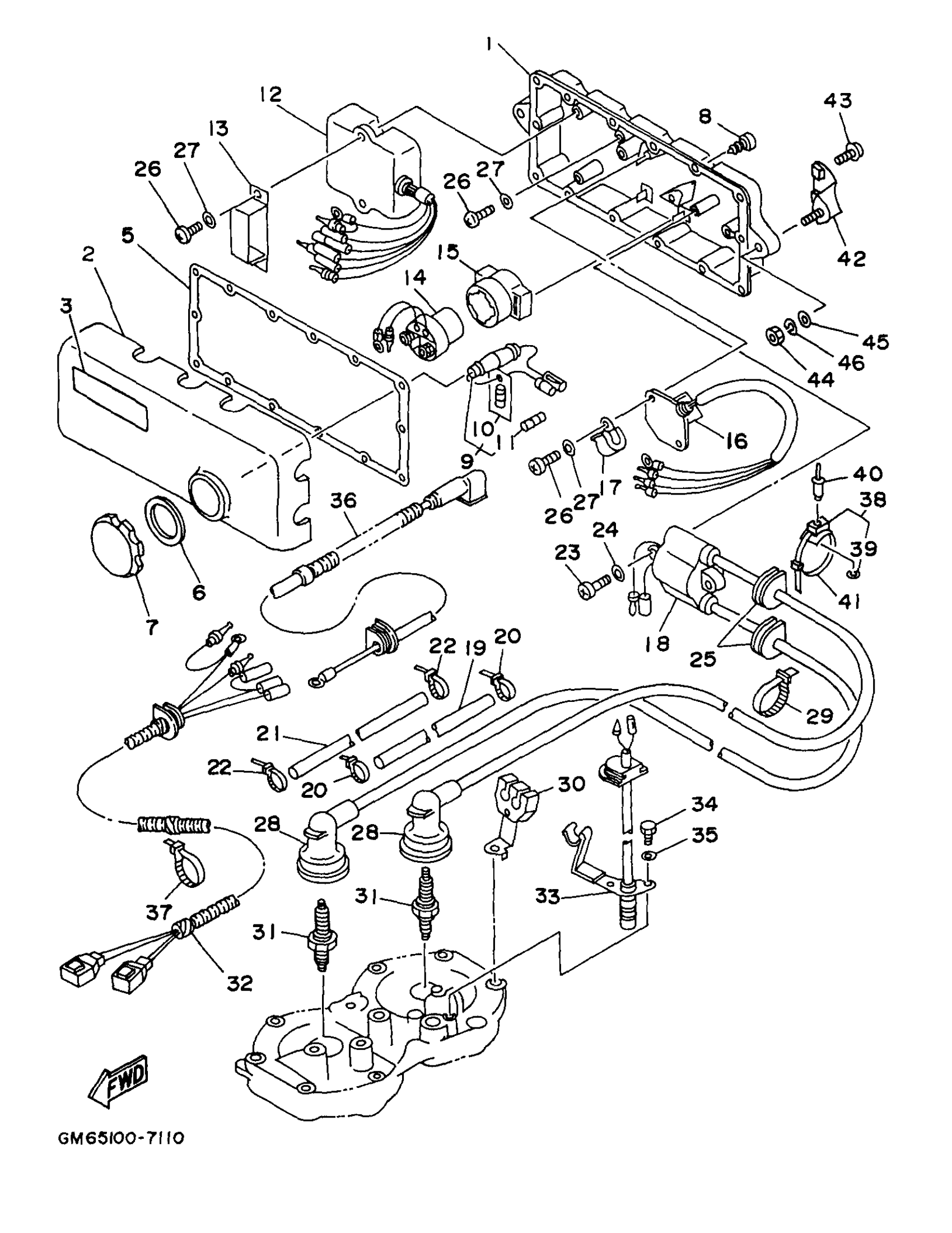

Yamaha SJ700AV (SUPER JET) GM65 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

6M6-8552A-01-8P

$137.86

2

COVER, CASE

6M6-8552E-01-00

$78.77

3

MARK 3

6R7-83623-40-00

$7.27

5

GASKET, TERMINAL

6M6-81921-00-00

$19.63

6

GASKET

6M6-81844-00-00

$10.99

7

CAP

6M6-8132W-00-00

$14.38

8

SCREW, TAPPING(65J)

97780-60625-00

$2.64

9

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

10

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

11

FUSE (10A)

1E6-82151-00-00

$5.80

11

CLAMP

90464-06M29-00

$6.36

12

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

12

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

13

HOLDER, RELAY

6M6-81952-01-00

Unavailable

16

IGNITION COIL ASSY

62E-85570-00-00

$152.35

16

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$112.11

17

TUBE, CORD

63M-82351-00-00

$13.40

17

CLAMP

90465-08028-00

$4.31

20

CLAMP

90465-10098-00

$1.68

21

TUBE, CORD

63M-82351-00-00

$13.40

23

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

GROMMET

90480-06M43-00

$6.82

26

SCREW, PAN HEAD

98580-06016-00

$2.88

27

WASHER, PLAIN (646)

92990-06600-00

Unavailable

28

PLUG CAP ASSEMBLY

6K8-82370-00-00

Unavailable

29

CLAMP

90465-10098-00

$1.68

30

CLAMP, CORD

6R7-82361-00-00

Unavailable

31

THERMO SWITCH ASSY

6R7-82560-00-00

Unavailable

31

B7HS NGK 4PK

B7H-S0000-00-00

$4.09

32

EXTENSION, WIRE LEAD

6R7-82553-01-00

$95.44

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

33

WASHER, SPRING

92995-06100-00

$2.95

36

WIRE, LEAD

62E-82117-20-00

$89.38

37

CLAMP (6E5)

90465-13M11-00

Unavailable

38

CLAMP COMP (EU0)

90600-91736-00

Unavailable

39

. WASHER, PLAIN

90201-05925-00

Unavailable

40

RIVET, BLIND

90267-48802-00

$1.98

41

BAND (EU0)

90601-20009-00

$6.36

42

BRACKET, ELECTRIC BOX

EW2-68156-00-00

$18.52

43

BOLT, WITH WASHER

90119-06908-00

$2.57

44

NUT (661)

95380-08600-00

Unavailable

45

WASHER, PLAIN

92990-08200-00

$2.36

46

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
