1992 Yamaha Super JET (SJ650Q) Pole Pivot Diagram

← All diagrams

Find the part on the Pole Pivot diagram for your 1992 Yamaha Super JET (SJ650Q), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

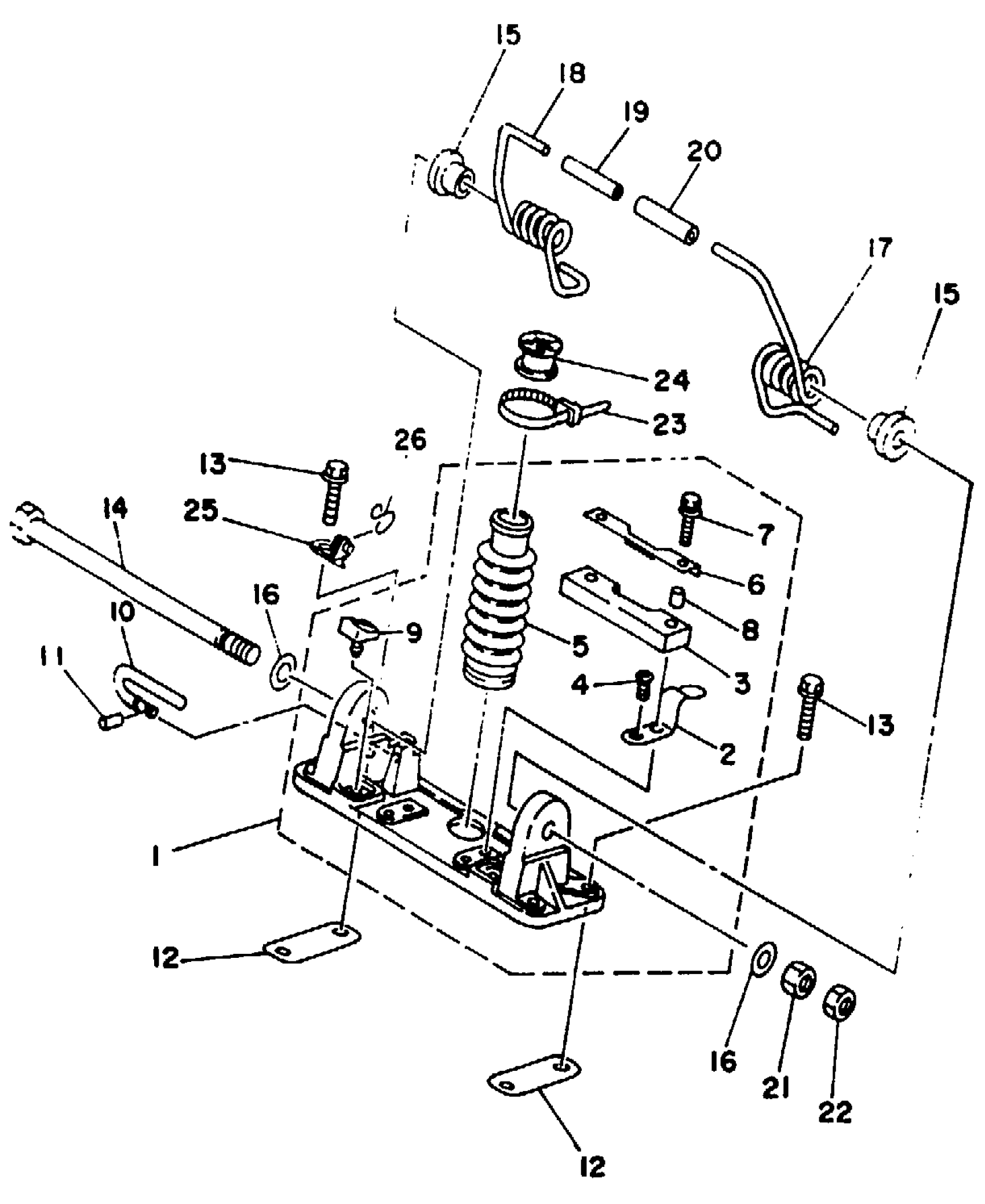

1992 Yamaha Super JET (SJ650Q) Pole Pivot Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

POLE PIVOT ASSEMBLY

EW2-U1330-31-00

1
Out of stock

2

. STOPPER, HATCH 1

EW2-65135-00-00

1
Out of stock

3

. STOPPER, POLE

EW2-61337-30-00

1
Out of stock

4

SCREW,FLAT HEAD

98780-06010-00

1
Out of stock

5

. GROMMET

EW2-U1338-00-00

1
Out of stock

6

. PLATE, POLE STOPPER

EW2-6133E-00-00

1
Out of stock

7

BOLT H/W (FJ1)

90119-06918-00

1

$3.05

In stock

8

COLLAR

90387-07910-00

1
Out of stock

9

. DAMPER, STOPPER

EW2-U1336-00-00

1
Out of stock

10

PIN, STOPPER

EW2-61335-00-00

1
Out of stock

11

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

12

PLATE, BRACKET

EW2-6133B-00-00

1
Out of stock

13

BOLT, FLANGE (EW2)

90105-08902-00

—

$9.08

In stock

14

SHAFT, PIVOT

EW2-U1343-01-00

1
Out of stock

15

BUSH

EW2-61344-01-00

1

$10.49

In stock

16

WASHER

92990-14600-00

1

$6.31

In stock

17

SPRING, PIVOT (LH)

EW2-61391-11-00

1
Out of stock

18

SPRING, PIVOT (RH)

EW2-61391-21-00

1
Out of stock

19

SPRING, CONNECTOR

EW2-61392-30-00

1

$27.99

In stock

20

BUFFER, TUBE

EW2-61393-30-00

1

$5.54

In stock

21

NUT, HEXAGON

98801-41000-0

1
Out of stock

22

NUT

98880-14300-00

1
Out of stock

23

BAND (EU0)

90601-20009-00

1

$6.46

In stock

24

PACKING, CABLE

EW2-61465-00-00

1

$13.99

In stock

25

HOLDER, SPRING

EW2-6133D-00-00

1
Out of stock

26

SPRING, TORSION

EW2-61395-30-00

1

$6.92

In stock
