1992 Yamaha Super Jet (SJ650Q) Jet Unit Diagram

← All diagrams

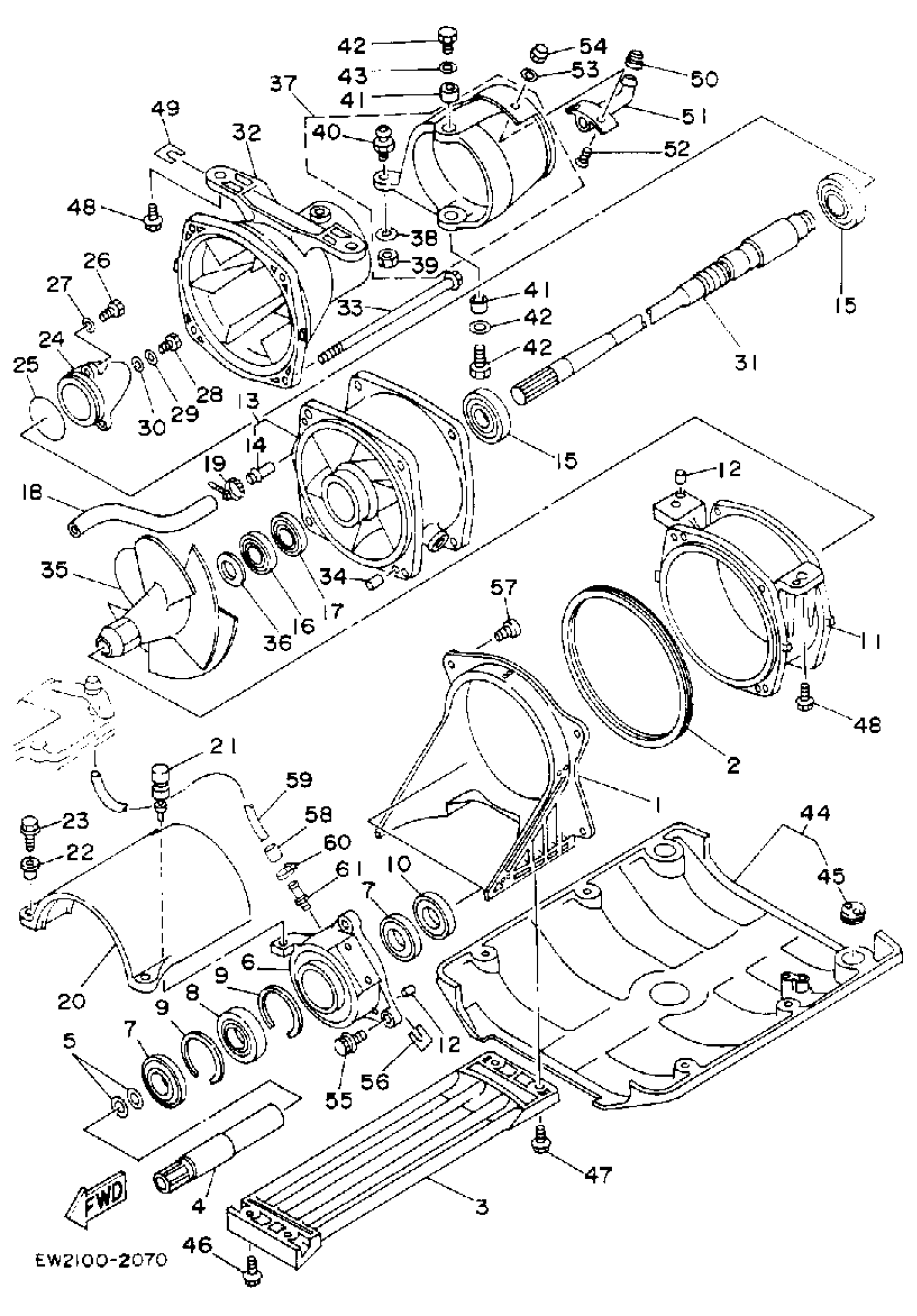

Find the part on the Jet Unit diagram for your 1992 Yamaha Super Jet (SJ650Q), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Super Jet (SJ650Q) Jet Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DUCT, INTAKE

6R7-51311-00-00

1

$124.49

In stock

2

. PACKING

6R7-51117-01-00

1

$31.67

In stock

3

SCREEN, INTAKE

6R7-51333-00-00

1

$95.99

In stock

4

SHAFT, COUPLER

6R7-51323-01-00

1
Out of stock

5

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

6

HOUSING SET, BEARING (6R7-01)

99999-02641-00

1
Out of stock

7

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

8

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

9

CIRCLIP

93430-47M04-00

1

$5.53

In stock

10

OIL SEAL

93101-24001-00

1

$31.99

In stock

11

HOUSING, IMPELLER

6R7-51312-03-00

1

$266.13

In stock

12

PIN, DOWEL(6R7)

93606-07M17-00

1
Out of stock

13

DUCT, IMPELLER

6R7-51315-01-94

1
Out of stock

14

. NIPPLE

6K8-51129-00-00

1

$12.99

In stock

15

BEARING (6K8)

93306-205U1-00

1

$21.14

In stock

16

OIL SEAL(6R7)

93102-25M34-00

—

$14.64

In stock

17

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

18

HOSE

90445-14M11-00

1
Out of stock

19

CLAMP

90465-10098-00

1

$2.24

In stock

20

COVER

61X-51381-00-00

1

$23.60

In stock

21

GROMMET(6R7)

90480-06M46-00

—

$9.97

In stock

22

COLLAR

90387-06M60-00

1

$8.99

In stock

23

BOLT, WITH WASHER

90119-06900-00

1

$4.15

In stock

24

CAP

62T-51326-00-00

1

$71.49

In stock

25

. O-RING

93210-46M16-00

1

$7.91

In stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

27

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

28

BOLT(GH1)

97080-06012-00

1
Out of stock

29

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

30

. GASKET

90430-06M03-00

1

$2.97

In stock

31

SHAFT, DRIVE

6R7-45511-01-00

1

$471.99

In stock

32

NOZZLE

6R7-51318-00-00

1

$194.99

In stock

33

BOLT, WITH WASHER

90119-06M70-00

1

$7.91

In stock

34

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

35

IMPELLER

61L-51321-10-CA

1
Out of stock

36

SPACER

62T-51348-00-00

1

$48.10

In stock

37

NOZZLE DEFLECOR

61L-51313-00-00

1

$53.14

In stock

38

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

39

NUT(650)

95380-06700-00

—

$6.17

In stock

40

. BOLT, JOINT

6R7-42316-00-00

1

$34.49

In stock

41

COLLAR(6R7)

90387-08M06-00

—

$8.97

In stock

42

BOLT, HEXAGON

97095-08018-00

1

$3.23

In stock

43

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

44

PLATE 2

F2F-6273B-09-00

1
Out of stock

45

BOLT, JACK

FK7-62732-01-00

1
Out of stock

46

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

47

BOLT, WITH WASHER

90119-06908-00

1

$2.77

In stock

48

BOLT, WITH WASHER

90119-10917-00

1
Out of stock

49

SHIM (T=0.1)

EW2-67354-00-01

1
Out of stock

49

SHIM (T=0.3)

EW2-67354-00-03

1
Out of stock

49

SHIM (T=0.5)

EW2-67354-00-05

1
Out of stock

49

SHIM (T=1.0)

EW2-67354-00-10

1
Out of stock

50

CAP, SPOUT

6R8-62695-00-00

1

$4.62

In stock

51

SPOUT

EU0-62693-02-00

1

$41.99

In stock

52

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

53

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

54

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

55

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

56

SHIM (T=0.3) (EU0-67354-30-03)

EU0-U7354-30-03

1
Out of stock

56

SHIM (T=0.5) (EU0-67354-30-05)

EU0-U7354-30-05

1
Out of stock

56

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

1
Out of stock

57

SCREW, TAPPING

97780-60520-00

1

$4.15

In stock

58

BUSH

90386-08006-00

1

$2.77

In stock

59

HOSE (L445)

90445-09M21-00

—

$22.46

In stock

60

CLAMP, HOSE(61L)

90460-11M17-00

—

$17.86

In stock

61

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock
