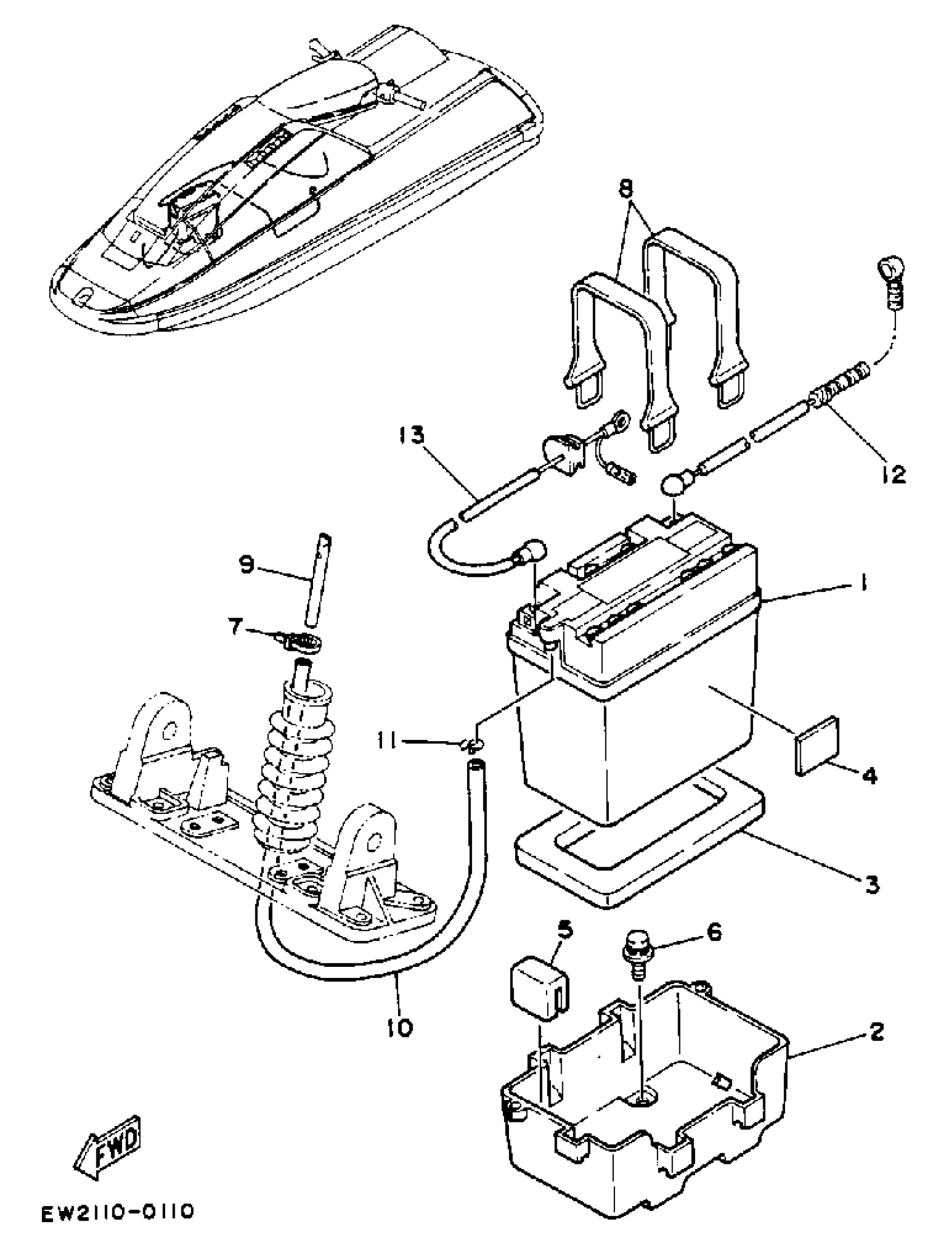

Find the part on the Electrical 2 diagram for your 1992 Yamaha Super JET (SJ650Q), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Super JET (SJ650Q) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1

$180.91

In stock

2

CASE, BATTERY

EW2-68211-00-00

1

$38.49

In stock

3

PAD, BATTERY

F1S-U8221-00-00

1

$3.00

In stock

4

PAD, BATTERY 2

EU0-68221-30-00

1

$46.99

In stock

5

PAD, BATTERY

EW2-68221-00-00

1

$14.49

In stock

6

BOLT WITH WASHER (EW2)

90119-06920-00

1

$4.74

In stock

7

CLAMP

90465-10098-00

1

$2.24

In stock

8

BAND,BATTERY

EU0-68218-04-00

1

$40.53

In stock

9

PIPE, VENTILATION 1

EW2-62149-00-00

1

$7.38

In stock

10

HOSE

90699-50085-00

1

$24.99

In stock

11

CLIP

90467-08M10-00

1
Out of stock

12

WIRE, LEAD

64V-82117-00-00

1

$68.69

In stock

13

WIRE, LEAD

6R7-82117-11-00

1

$64.14

In stock
