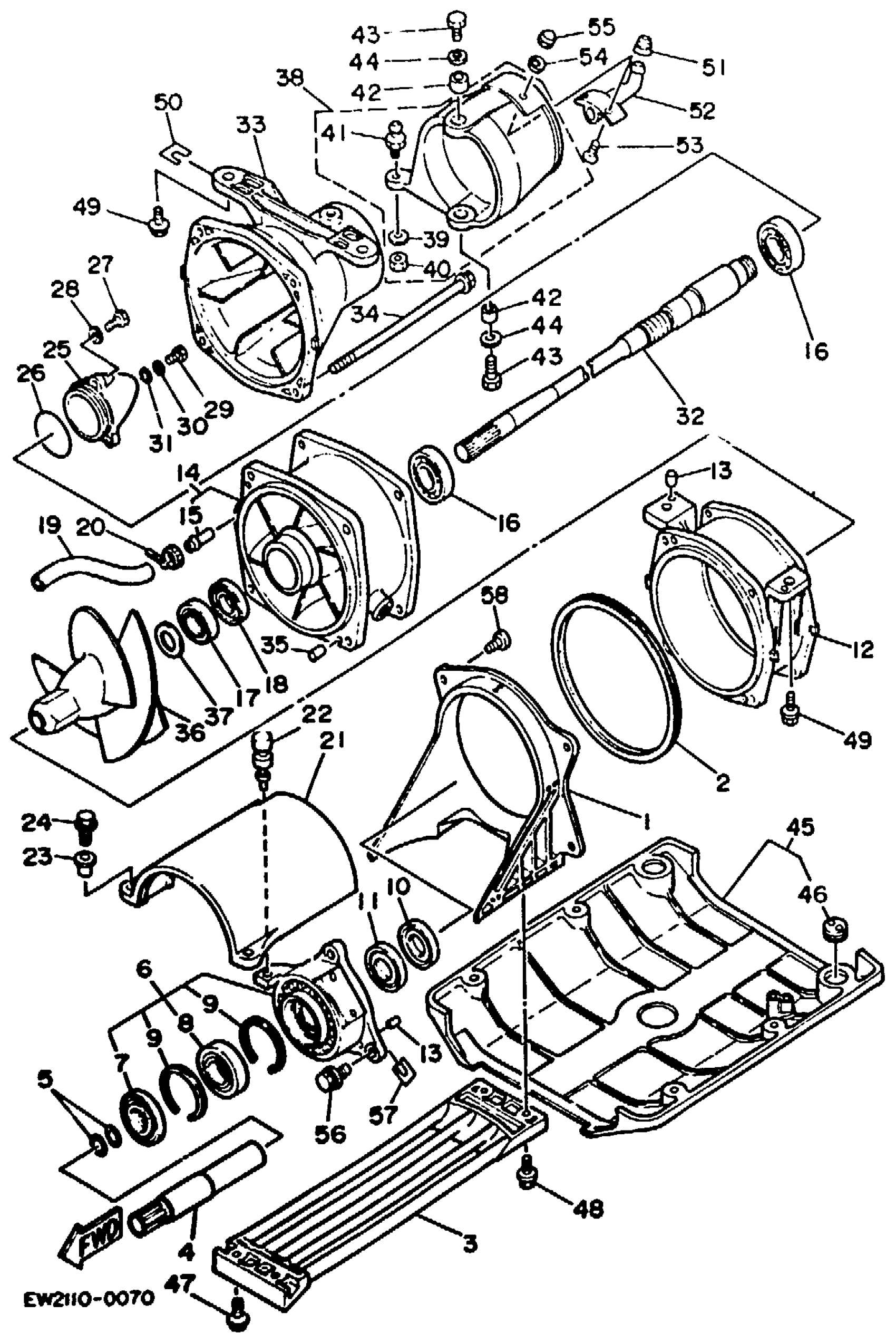

Yamaha SJ650P (SUPER JET) 1991 JET UNIT Diagram

#

Description
Price

1

DUCT, INTAKE

6R7-51311-00-00

$122.71

2

. PACKING

6R7-51117-01-00

$39.38

3

SCREEN, INTAKE

6R7-51333-00-00

$95.44

4

SHAFT, COUPLER

6R7-51323-01-00

Unavailable

4

SHAFT, COUPLER

6R7-51323-01-00

Unavailable

5

O-RING(6R7)

93210-17MA4-00

$4.65

6

BEARING HOUSING ASSY

6R7-W4531-00-CA

Unavailable

7

OIL SEAL

93101-24001-00

$30.69

8

BEARING(62G)

93306-205U6-00

$55.29

9

CIRCLIP

93430-47M04-00

$5.18

10

OIL SEAL

93101-24001-00

$30.69

11

OIL SEAL(62T)

93101-25M55-00

$24.36

12

HOUSING, IMPELLER

6R7-51312-03-00

$306.70

13

PIN, DOWEL(6R7)

93606-07M17-00

$6.76

14

DUCT, IMPELLER

6R7-51315-01-94

Unavailable

15

. NIPPLE

6K8-51129-00-00

$9.62

16

BEARING (6K8)

93306-205U1-00

Unavailable

17

OIL SEAL(6R7)

93102-25M34-00

Unavailable

18

OIL SEAL(6R7)

93101-25M50-00

Unavailable

19

HOSE

90445-14M02-00

Unavailable

20

CLAMP

90465-10098-00

$1.68

21

COVER

61X-51381-00-00

$26.49

22

GROMMET(6R7)

90480-06M46-00

Unavailable

23

COLLAR

90387-06M60-00

$6.37

24

BOLT, WITH WASHER

90119-06900-00

$4.09

25

CAP

62T-51326-00-00

$71.20

26

. O-RING

93210-46M16-00

$7.15

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

BOLT(GH1)

97080-06012-00

$2.56

30

WASHER, PLAIN (646)

92990-06600-00

Unavailable

31

. GASKET

90430-06M03-00

$2.80

32

SHAFT, DRIVE

6R7-45511-01-00

$465.14

33

NOZZLE

6R7-51318-00-00

$192.41

34

BOLT, WITH WASHER

90119-06M70-00

$7.40

35

PIN, DOWEL (614)

93606-12019-00

Unavailable

36

IMPELLER

6R7-51321-00-8S

$328.77

37

SPACER

62T-51348-00-00

$52.82

38

NOZZLE DEFLECOR

61L-51313-00-00

$53.14

39

WASHER, PLATE

90201-06M02-00

$2.20

40

NUT(650)

95380-06700-00

Unavailable

41

. BOLT, JOINT

6R7-42316-00-00

$34.49

42

COLLAR(6R7)

90387-08M06-00

Unavailable

43

BOLT, HEXAGON

97095-08018-00

$3.08

44

.. WASHER, PLATE

92990-08600-00

$2.17

45

PLATE 2

F2F-6273B-09-00

Unavailable

46

BOLT, JACK

FK7-62732-01-00

Unavailable

47

BOLT, WITH WASHER

90119-06896-00

$5.03

48

BOLT, WITH WASHER

90119-06908-00

$2.57

49

BOLT, WITH WASHER

90119-10917-00

Unavailable

50

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

50

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

50

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

50

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

51

CAP, SPOUT

6R8-62695-00-00

$4.55

52

SPOUT

EU0-62693-02-00

$41.99

53

SCREW(617)

98780-05012-00

Unavailable

54

. WASHER, PLAIN

92990-05200-00

$4.29

55

.. NUT

95380-05800-00

$2.73

56

BOLT, WITH WASHER

90119-08907-00

$5.45

57

SHIM (T=0.3) (EU0-67354-30-03)

EU0-U7354-30-03

Unavailable

57

SHIM (T=0.5) (EU0-67354-30-05)

EU0-U7354-30-05

Unavailable

57

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

Unavailable

58

SCREW, TAPPING

97780-60520-00

$4.09
