1991 Yamaha Super Jet (SJ650P) Electrical 1 Diagram

← All diagrams

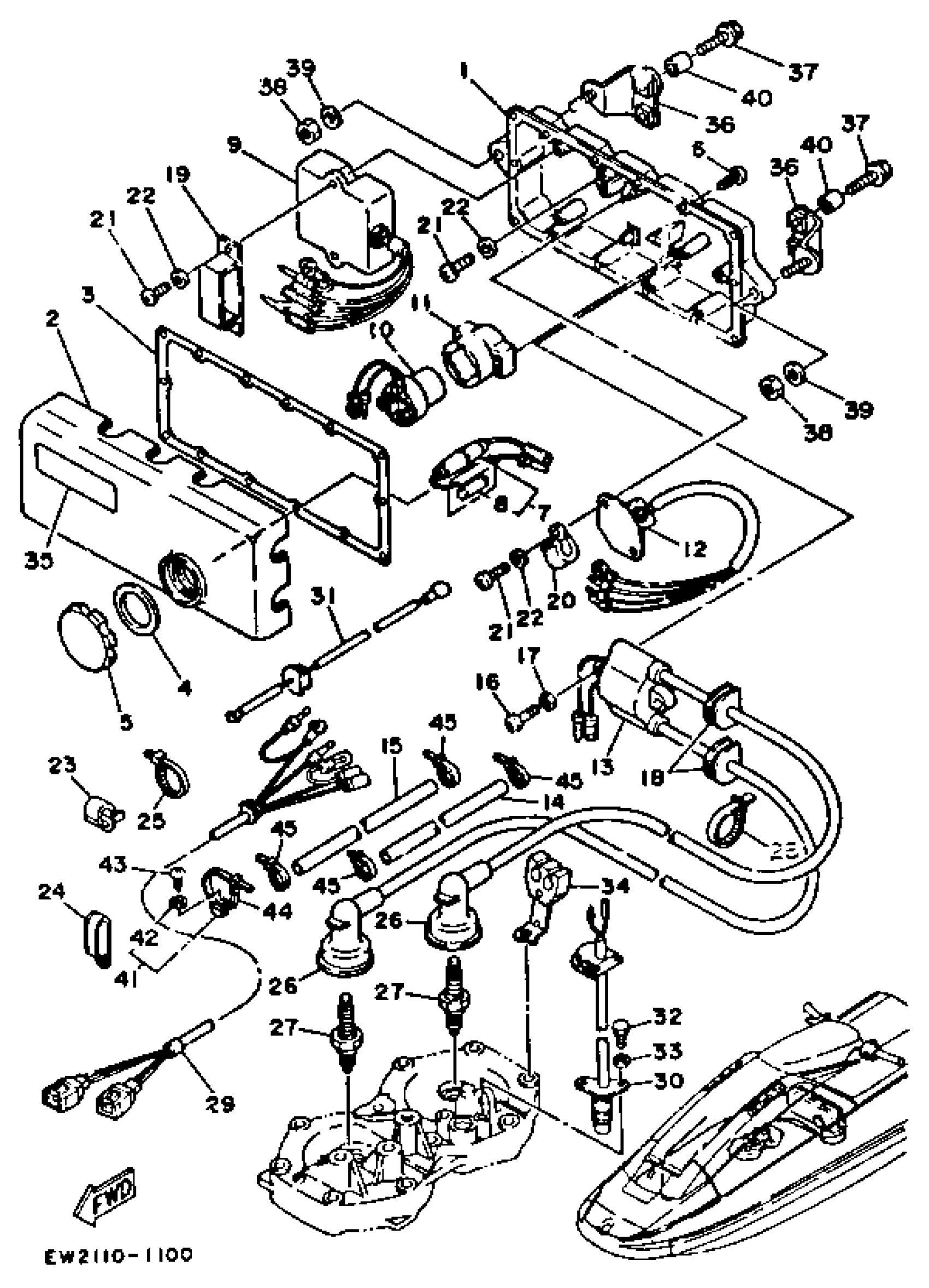

Find the part on the Electrical 1 diagram for your 1991 Yamaha Super Jet (SJ650P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Yamaha Super Jet (SJ650P) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

6M6-8552A-01-8P

1
Out of stock

2

COVER, CASE

6M6-8552E-01-00

1
Out of stock

3

GASKET, TERMINAL

6M6-81921-00-00

1
Out of stock

4

GASKET

6M6-81844-00-00

1
Out of stock

5

CAP

6M6-8132W-00-00

1
Out of stock

6

SCREW, TAPPING(65J)

97780-60625-00

1
Out of stock

7

FUSE HOLDER ASSY

6K8-82150-02-00

1
Out of stock

8

FUSE (10A)

1E6-82151-00-00

1
Out of stock

9

C.D.I. UNIT ASSY

6M6-85540-02-00

—
Out of stock

10

STARTER RELAY ASSY

6G1-81941-10-00

1
Out of stock

11

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

11

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

12

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

1
Out of stock

13

IGNITION COIL ASSEMBLY

6R8-85570-00-00

1
Out of stock

14

TUBE, CORD

63M-82351-00-00

1
Out of stock

15

TUBE, CORD

63M-82351-00-00

1
Out of stock

16

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

17

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

18

GROMMET

90480-06M43-00

1
Out of stock

19

CLAMP

90464-06M29-00

1
Out of stock

20

CLAMP

90465-08028-00

1
Out of stock

21

SCREW, PAN

98507-06014-00

—
Out of stock

22

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

23

CLAMP

90465-08M38-00

1
Out of stock

24

CLAMP (6A4)

90461-06M01-00

—
Out of stock

25

CLAMP

90465-10098-00

1
Out of stock

26

PLUG CAP ASSEMBLY

6K8-82370-00-00

1
Out of stock

27

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

1
Out of stock

28

CLAMP

90465-10098-00

1
Out of stock

29

EXTENSION, WIRE LEAD

6R7-82553-01-00

1
Out of stock

30

THERMO SWITCH ASSY

6R7-82560-00-00

1
Out of stock

31

WIRE, LEAD

62E-82117-20-00

1
Out of stock

32

BOLT

97085-06010-00

1
Out of stock

33

WASHER, SPRING

92995-06100-00

1
Out of stock

34

CLAMP, CORD

6R7-82361-00-00

1
Out of stock

35

MARK 3

6R7-83623-40-00

1
Out of stock

36

BRACKET, ELECTRIC BOX

EW2-68156-00-00

1
Out of stock

37

BOLT, WASHER BASED

90105-06901-00

1
Out of stock

38

. NUT

95380-08700-00

1
Out of stock

39

WASHER, PLAIN

92990-08200-00

1
Out of stock

40

COLLAR

90387-07908-00

1
Out of stock

41

CLAMP COMP (EU0)

90600-91736-00

—
Out of stock

42

. WASHER, PLAIN

90201-05925-00

1
Out of stock

43

SCREW, TAPPING(6U1)

97780-50610-00

—
Out of stock

44

BAND (EU0)

90601-20009-00

1
Out of stock

45

CLAMP

90465-10098-00

1
Out of stock
