1990 Yamaha Super JET (SJ650D) Pole Pivot Diagram

← All diagrams

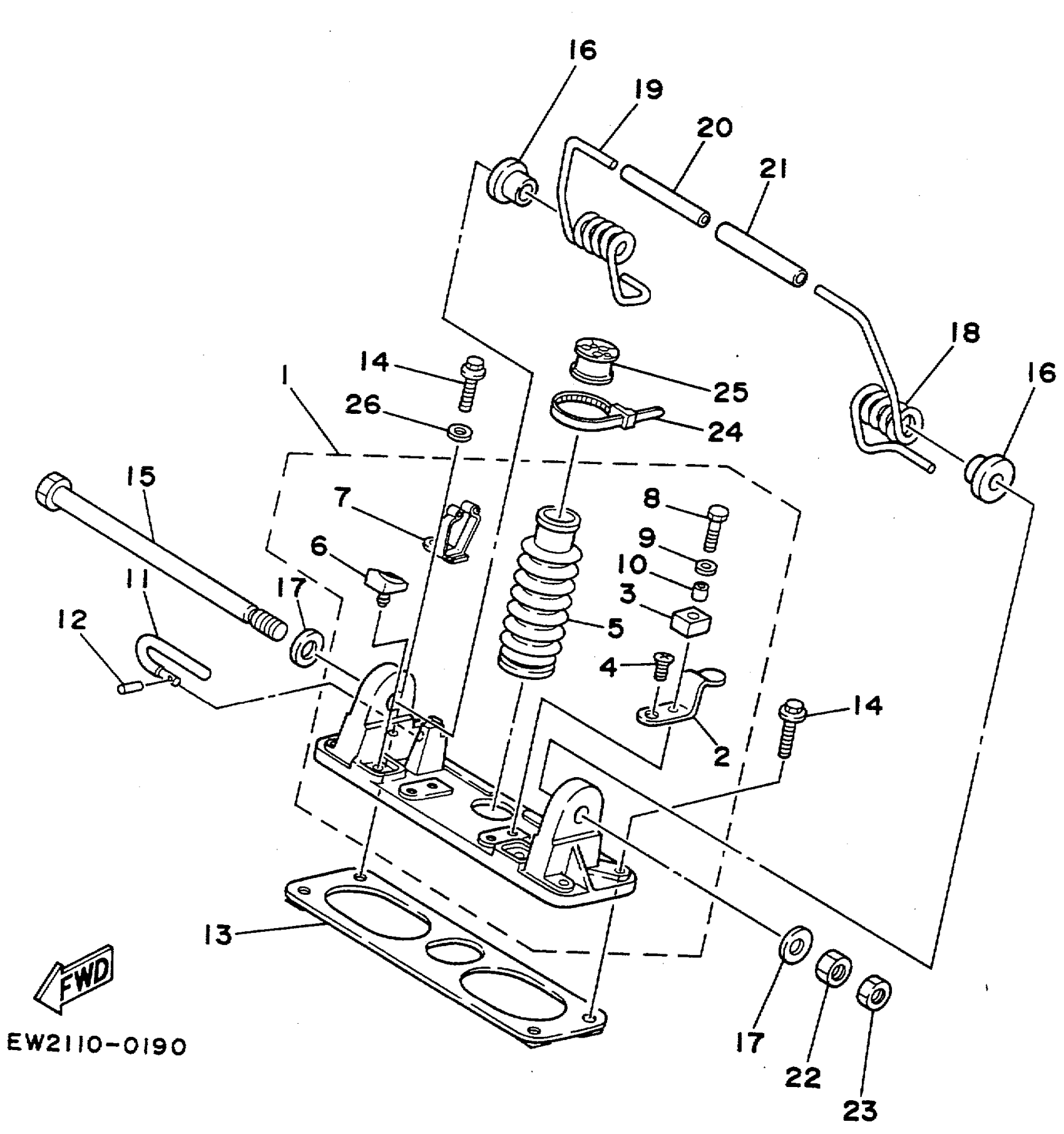

Find the part on the Pole Pivot diagram for your 1990 Yamaha Super JET (SJ650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Super JET (SJ650D) Pole Pivot Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

POLE PIVOT ASSEMBLY

EW2-U1330-31-00

1
Out of stock

2

. STOPPER, HATCH 1

EW2-65135-00-00

1
Out of stock

3

. STOPPER, POLE

EW2-61337-00-00

1
Out of stock

4

SCREW,FLAT HEAD

98780-06010-00

1
Out of stock

5

. GROMMET

EW2-U1338-00-00

1
Out of stock

6

. DAMPER, STOPPER

EW2-U1336-00-00

1
Out of stock

7

. HOLDER, STOPPER

EW2-61339-00-00

1
Out of stock

8

BOLT

90101-06M27-00

1

$2.90

In stock

9

WASHER, PLAIN (FJ0)

90201-06930-00

1
Out of stock

10

COLLAR

90387-07910-00

1
Out of stock

11

PIN, STOPPER

EW2-61335-00-00

1
Out of stock

12

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

13

PLATE, BRACKET

EW2-61333-00-00

1
Out of stock

14

BOLT, FLANGE (EW2)

90105-08902-00

—

$9.08

In stock

15

SHAFT, PIVOT

EW2-U1343-01-00

1
Out of stock

16

BUSH

EW2-61344-01-00

1

$10.49

In stock

17

WASHER

92990-14600-00

1

$6.31

In stock

18

SPRING, PIVOT (LH)

EW2-61391-10-00

1
Out of stock

19

SPRING, PIVOT (RH)

EW2-61391-20-00

1
Out of stock

20

SPRING, CONNECTOR

EW2-61392-00-00

1

$32.99

In stock

21

BUFFER, TUBE

EW2-61393-00-00

1
Out of stock

22

NUT (98880-14100-00)

98880-14100-00

1
Out of stock

23

NUT

98880-14300-00

1
Out of stock

24

BAND (EU0)

90601-20009-00

1

$6.46

In stock

25

PACKING, CABLE

EW2-61465-00-00

1

$13.99

In stock

26

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
