1990 Yamaha Super JET (SJ650D) JET Unit Diagram

← All diagrams

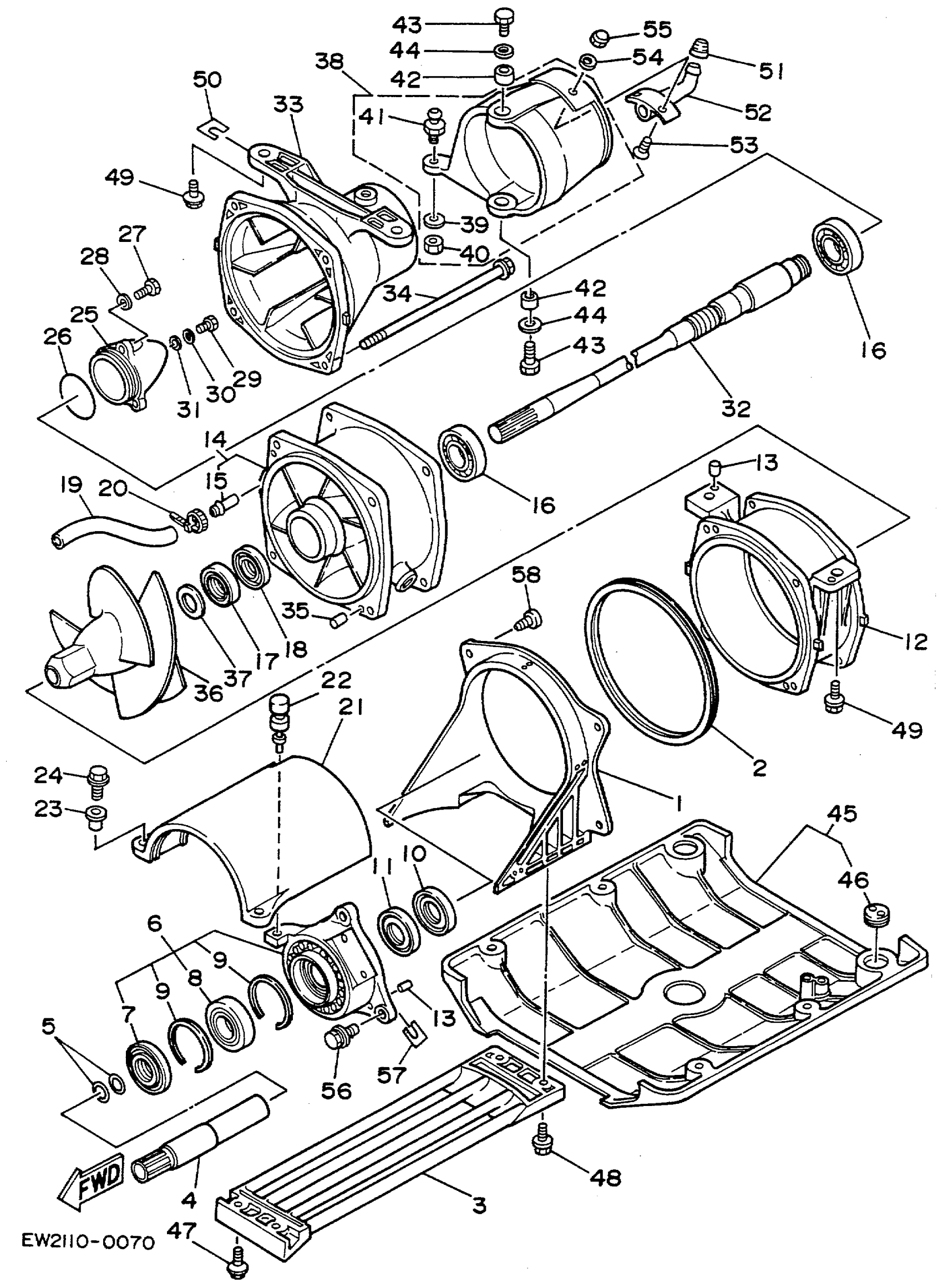

Find the part on the JET Unit diagram for your 1990 Yamaha Super JET (SJ650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Super JET (SJ650D) JET Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DUCT, INTAKE

6R7-51311-00-00

1

$124.49

In stock

2

. PACKING

6R7-51117-01-00

1

$31.67

In stock

3

SCREEN, INTAKE

6R7-51333-01-00

1
Out of stock

4

SHAFT, COUPLER

6R7-51323-01-00

1
Out of stock

5

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

6

BEARING HOUSING ASSY

6R7-W4531-00-CA

1
Out of stock

7

OIL SEAL

93101-24001-00

1

$31.99

In stock

8

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

9

CIRCLIP

93430-47M04-00

1

$5.53

In stock

10

OIL SEAL

93101-24001-00

1

$31.99

In stock

11

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

12

HOUSING, IMPELLER

6R7-51312-03-00

1

$266.13

In stock

13

PIN, DOWEL(6R7)

93606-07M17-00

1
Out of stock

14

DUCT, IMPELLER

6R7-51315-01-94

1
Out of stock

15

. NIPPLE

6K8-51129-00-00

1

$12.99

In stock

16

BEARING (6K8)

93306-205U1-00

—

$21.14

In stock

17

OIL SEAL(6R7)

93102-25M34-00

—

$14.64

In stock

18

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

19

HOSE

90445-14M02-00

1
Out of stock

20

CLAMP

90465-10098-00

1

$2.24

In stock

21

COVER

61X-51381-00-00

1

$23.60

In stock

22

GROMMET(6R7)

90480-06M46-00

—

$9.97

In stock

23

COLLAR

90387-06M60-00

1

$8.99

In stock

24

BOLT, WITH WASHER

90119-06900-00

1

$4.15

In stock

25

CAP

62T-51326-00-00

1

$71.49

In stock

26

. O-RING

93210-46M16-00

1

$7.91

In stock

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

29

BOLT(GH1)

97080-06012-00

1
Out of stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

31

. GASKET

90430-06M03-00

1

$2.97

In stock

32

SHAFT, DRIVE

6R7-45511-01-00

1

$471.99

In stock

33

NOZZLE

6R7-51318-00-00

1

$194.99

In stock

34

BOLT, WITH WASHER

90119-06M70-00

1

$7.91

In stock

35

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

36

IMPELLER

6R7-51321-00-8S

1

$333.49

In stock

37

SPACER

62T-51348-00-00

1

$48.10

In stock

38

NOZZLE DEFLECOR

61L-51313-00-00

1

$53.14

In stock

39

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

40

NUT(650)

95380-06700-00

—

$6.17

In stock

41

. BOLT, JOINT

6R7-42316-00-00

1

$34.49

In stock

42

COLLAR(6R7)

90387-08M06-00

—

$8.97

In stock

43

BOLT, HEXAGON

97095-08018-00

1

$3.23

In stock

44

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

45

PLATE 2

F2F-6273B-09-00

1
Out of stock

46

BOLT, JACK

FK7-62732-01-00

1
Out of stock

47

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

48

BOLT, WITH WASHER

90119-06908-00

1

$2.77

In stock

49

BOLT, WITH WASHER

90119-10917-00

1
Out of stock

50

SHIM (T=0.1)

EW2-67354-00-01

1
Out of stock

50

SHIM (T=0.3)

EW2-67354-00-03

1
Out of stock

50

SHIM (T=0.5)

EW2-67354-00-05

1
Out of stock

50

SHIM (T=1.0)

EW2-67354-00-10

1
Out of stock

51

CAP, SPOUT

6R8-62695-00-00

1

$4.62

In stock

52

SPOUT

EU0-62693-02-00

1

$41.99

In stock

53

SCREW(617)

98780-05012-00

—

$3.03

In stock

54

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

55

.. NUT

95380-05800-00

1

$2.77

In stock

56

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

57

SHIM (T=0.3) (EU0-67354-30-03)

EU0-U7354-30-03

1
Out of stock

57

SHIM (T=0.5) (EU0-67354-30-05)

EU0-U7354-30-05

1
Out of stock

57

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

1
Out of stock

58

SCREW, TAPPING

97780-60520-00

1

$4.15

In stock
