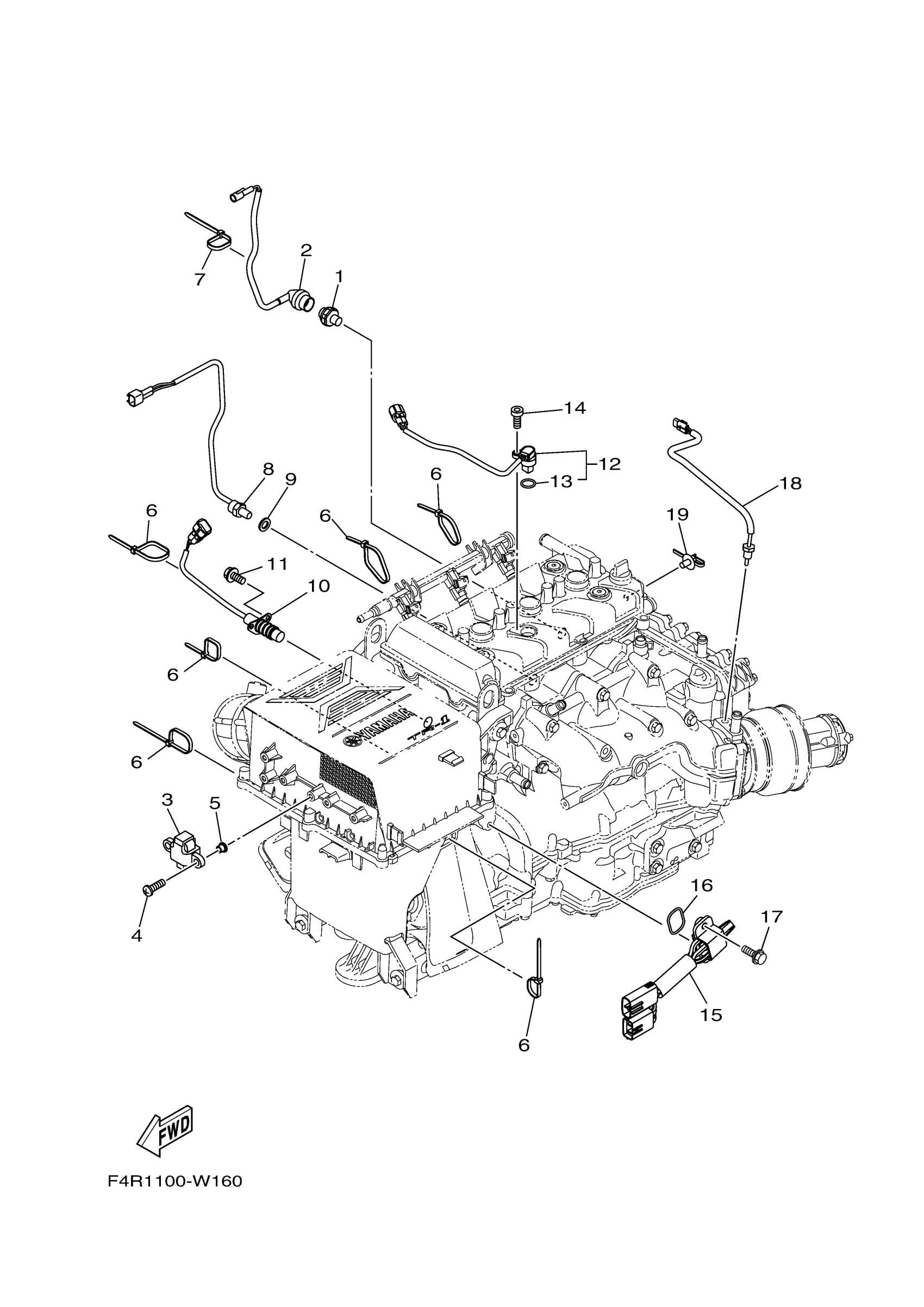

Yamaha SJ1050B F4R5 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

2

LEAD WIRE ASSY

60E-81315-01-00

$41.99

3

SENSOR, LEAN ANGLE

6ET-82576-00-00

$50.01

4

SCREW, TAPPING

97780-60025-00

$5.45

5

COLLAR

90387-06M05-00

$6.45

6

CLAMP(3XW)

90464-35132-00

$6.77

7

CLAMP(6E8)

90465-13M39-00

$4.47

8

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

9

WASHER, PLATE

92990-10600-00

$2.57

10

THERMO SWITCH ASSY

6CR-82560-00-00

$72.41

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

12

SENSOR, CAM POSITI

2S3-85896-02-00

$83.10

13

O-RING

4D9-81168-00-00

$4.04

14

BOLT,SOCKET

91380-06016-00

Unavailable

15

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

16

O-RING (341)

93210-32172-00

Unavailable

17

BOLT, WITH WASHER

90119-06MA3-00

$2.80

18

THERMOSENSOR ASSY

6DE-85790-00-00

$91.95

19

CLAMP

90464-20005-00

$2.11
