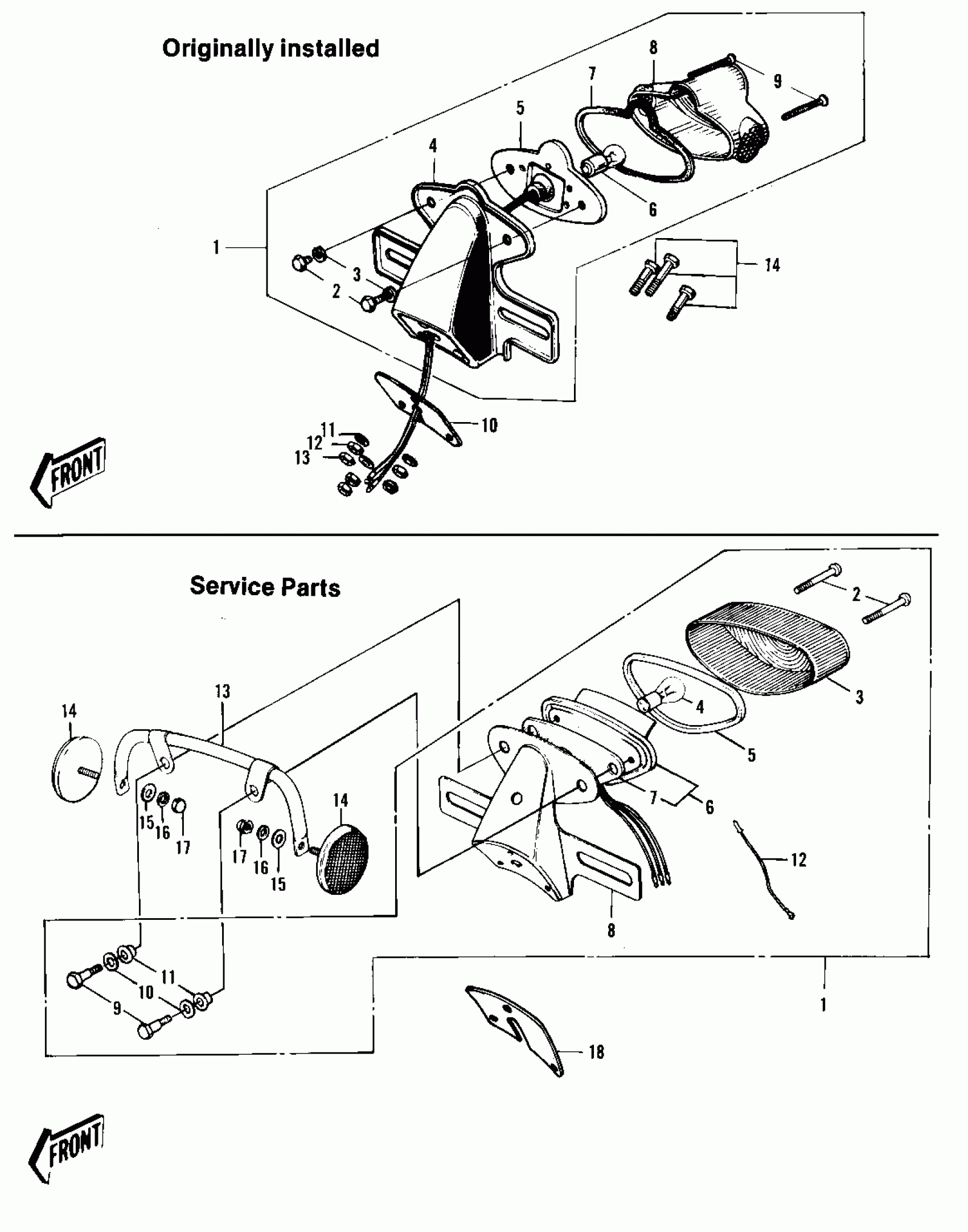

Kawasaki Sidewinder TAILLIGHT Diagram

#

Description
Price

1

LAMP ASSY TAIL

23025-027

Unavailable

1

LAMP ASSY TAIL BLACK

23025-029-10

$35.64

2

BOLT HEX HEAD 5X12

110N0512

Unavailable

2

BOLT HEX HEAD

110N0512A

Unavailable

3

WASHER SPRING 5MM

461F0500

Unavailable

4

BKT LICENSE PLT

23036-002

Unavailable

4

BKT LICENSE PLT BLACK

23036-007-10

$55.34

5

SOCKET TAIL LAMP

23027-009

Unavailable

6

BULB,12V 27/8W

92069-059

$6.19

7

UNAVAILABLE IN PRICE BOOK

23028-006

Unavailable

8

LENS TAIL LAMP

23026-010

Unavailable

9

SCREW PAN HEAD 4X50

220E0450

$5.37

10

DAMPER TAIL LAMP SHCK

35039-001

Unavailable

10

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

10

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

11

WASHER SPRING 6MM

461F0600

Unavailable

12

NUT 6MM

311B0600

Unavailable

13

NUT 6MM

312B0600

Unavailable

14

BOLT-UPSET,6X20

112G0620

Unavailable

14

BOLT-UPSET

112G0630

Unavailable

1

LAMP ASSY-TAIL,BLACK

23024-020-21

$84.71

2

SCREW

220R0455

$4.44

2

SCREW

220R0455

Unavailable

3

LENS-TAIL LAMP

23026-022

Unavailable

4

BULB,12V 27/8W

92069-059

$6.19

5

GASKET-TAIL LAMP LENS

23028-016

$10.03

6

CASE-TAIL LAMP

23027-029

Unavailable

7

GASKET-TAIL LAMP CASE

23028-015

Unavailable

8

BKT-LICENSE PLT,BLACK

23036-014-21

Unavailable

9

BOLT

92001-111

$1.98

10

WASHER,8.5X20X1.6

92022-1561

$3.29

11

DAMPER RUBBER

92075-091

Unavailable

12

WIRE IGNITION LEAD

26011-014

$1.27

13

BRACKET-REFLECTOR

28013-002

Unavailable

14

REFLECTOR-REFLEX,REAR

28012-008

Unavailable

15

WASHER-PLAIN,5MM

411B0500

Unavailable

16

WASHER SPRING 5MM

461F0500

Unavailable

17

NUT-CAP,5MM

322N0500

Unavailable

18

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

18

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable
