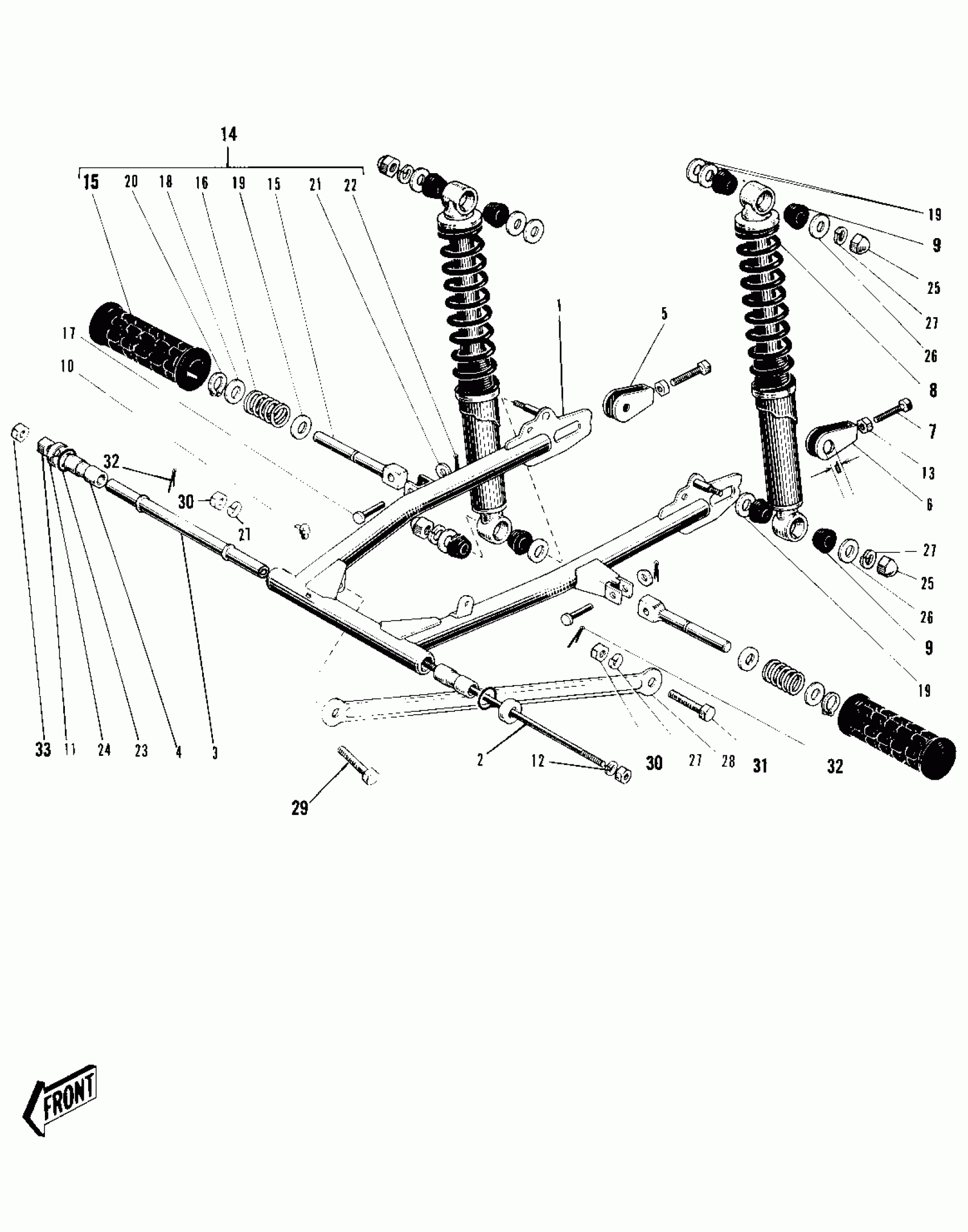

Kawasaki Sidewinder SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

1

ARM SWINGING

33001-010

$110.19

2

SHAFT SWING ARM PIVOT

33032-022

$11.64

3

COLLAR SWING ARM

33036-001

$4.85

4

SLEEVE SWING ARM

33034-001

$10.53

5

ADJUSTER CHAIN R.H

33040-024

$5.00

5

ADJUSTER CHAIN R.H

33040-030

$7.81

6

ADJUSTER CHAIN L.H

33040-031

$8.93

6

ADJUSTER CHAIN L.H

33040-031

$8.93

7

BOLT CHAIN ADJUST

92001-009

Unavailable

7

BOLT,8X50

92001-1399

$7.22

8

SHOCK ABSBR RR

45014-051

Unavailable

9

BUSH RUBB RR SHCK ABS

45017-002

$1.27

10

GREASE NIPPLE

92005-002

Unavailable

11

NUT,12MM

314G1200A

Unavailable

11

NUT-HEX-FINE

314B1200

Unavailable

12

WASHER-SPRING,12MM

461F1200

Unavailable

13

NUT 6MM

312B0600

Unavailable

13

NUT 8MM

312B0800

Unavailable

14

FOOTREST ASSY REAR

34027-004

Unavailable

15

RUBBER REAR FOOTREST

92076-007

Unavailable

16

SPRING FOOTREST FOLD

34031-001

$1.42

17

PIN FOOTREST FIT

92043-047

$2.17

18

WASHER FOLDING PEG

92022-050

$0.41

19

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

20

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

21

WASHER PLAIN 8MM

410B0800

Unavailable

22

PIN COTTER 2.5X16

550D2516

$2.27

23

BUSH SHOCK ABSORBER

92092-004

$3.54

24

HOLDER DUST SHIELD

33035-001

Unavailable

25

NUT,CAP,10MM

92020-003

$4.88

26

WASHER,10.5X26X2.3

92022-044

$2.99

27

WASHER SPRING 10MM

461F1000

Unavailable

28

TORQUE LINK REAR BRK

43007-018

Unavailable

29

BOLT,10X25

92003-017

Unavailable

30

NUT-HEX-FINE,10MM

314B1000

Unavailable

31

BOLT,10X32

92003-003

$5.42

32

PIN COTTER 2.0X15

550D2015

Unavailable

33

NUT-HEX-FINE

315B1200

Unavailable

33

NUT-HEX-FINE

315B1200

Unavailable
