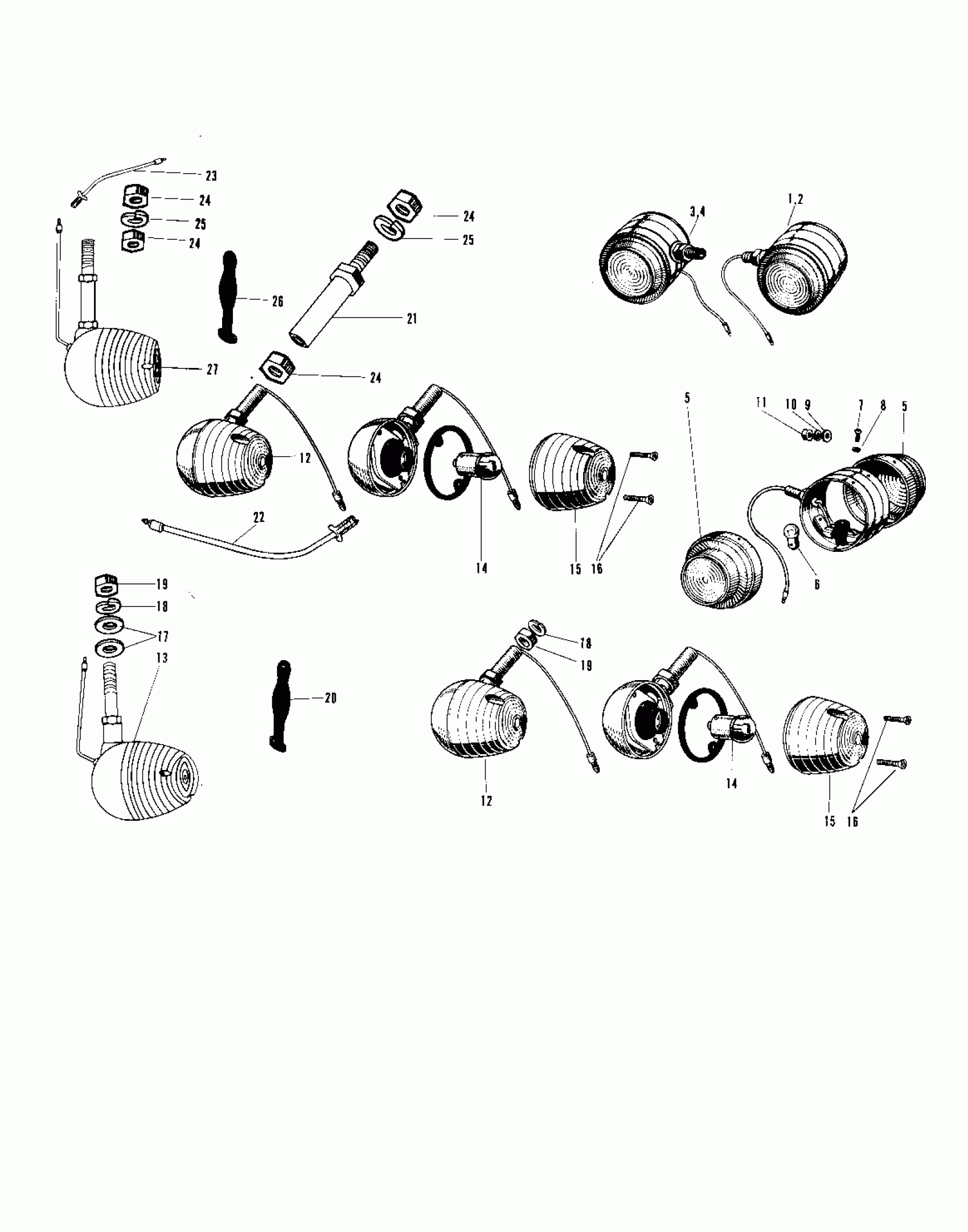

Kawasaki Sidewinder OPTIONAL PARTS Diagram

#

Description
Price

1

LAMP FRNT TURN SIG RH

23040-013

Unavailable

2

LAMP FRNT TURN SIG LH

23042-012

$22.19

3

LAMP REAR TURN SIG RH

23043-014

$43.69

4

LAMP REAR TURN SIG LH

23044-012

$45.71

5

LENS TURN SIGNAL LAMP

23048-004

Unavailable

6

BULB 12V 8W

92069-019

Unavailable

7

SCREW-PAN-CROS,3X8

220E0308

$4.10

8

WASHER SPRING 3MM

461F0300

Unavailable

9

WASHER-PLAIN,10MM

411B1000

Unavailable

10

WASHER SPRING 10MM

461F1000

Unavailable

11

NUT-HEX-FINE,10MM

314B1000

Unavailable

12

LAMP FRNT TURN SIGNAL

23040-020

$158.70

13

UNAVAILABLE IN PRICE BOOK

23043-021

Unavailable

14

BULB 12V 8W

92069-043

Unavailable

15

LENS TURN SIGNAL LAMP

23048-011

$15.64

16

SCREW OVL CNTSNK 3X15

222B0315A

Unavailable

17

WASHER PLAIN 10MM

410B1000

Unavailable

18

WASHER SPRING 10MM

461F1000

Unavailable

19

NUT-HEX-FINE,10MM

315B1000

Unavailable

20

BAND RUBBER

92072-013

$3.12

21

HOLDER

23051-002

Unavailable

22

WIRING HARN EXTENSION

26011-040

$3.69

23

WIRING HARNESS,EXTNSN

26011-006

$2.83

24

NUT-HEX-FINE,10MM

315B1000

Unavailable

25

WASHER SPRING 10MM

461F1000

Unavailable

26

BAND RUBBER

92072-013

$3.12

27

UNAVAILABLE IN PRICE BOOK

23043-022

Unavailable
