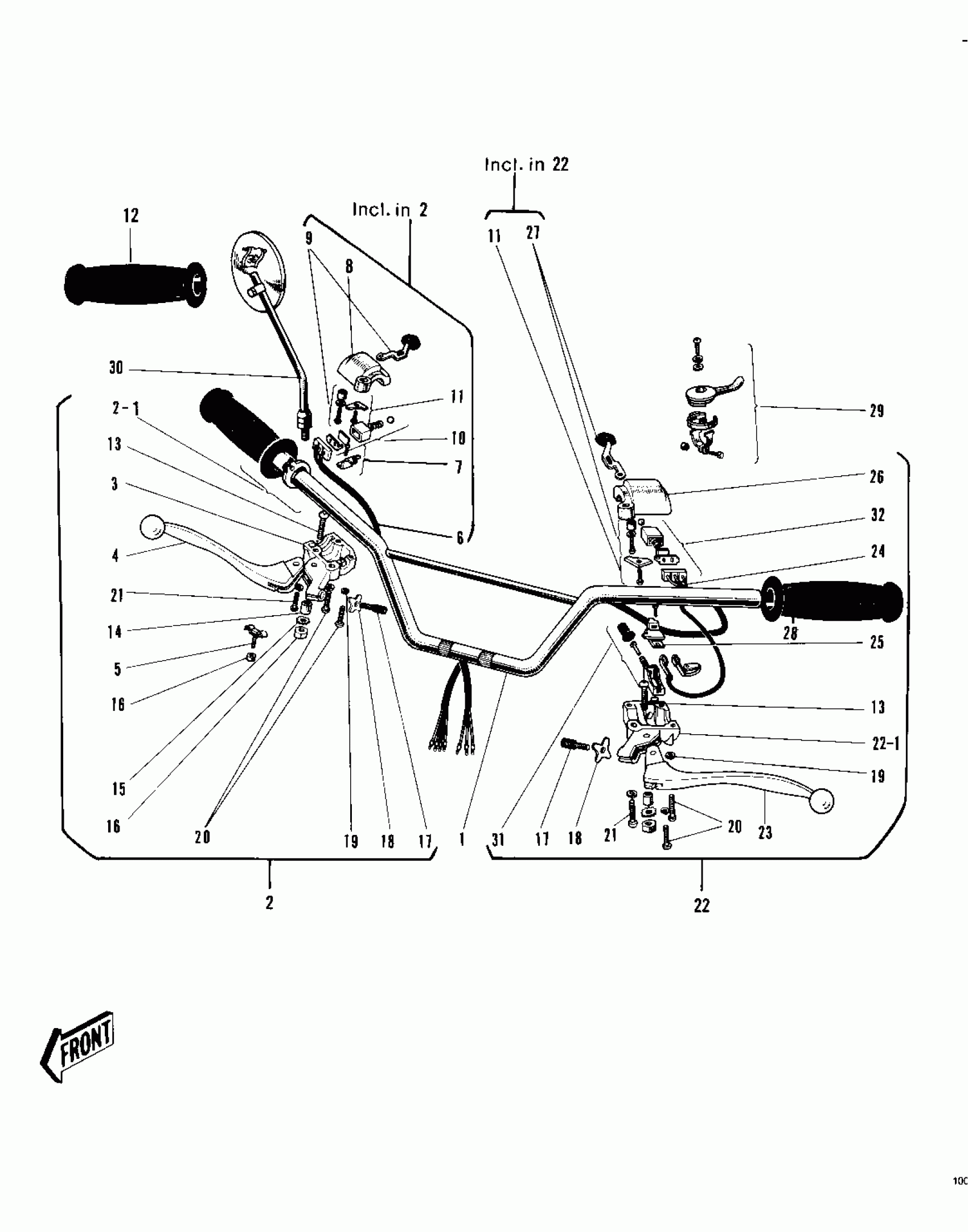

Kawasaki Sidewinder HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

46004-022

Unavailable

2

GRIP THROTTLE

46019-008

$37.36

2-1

GRIP ASSY R.H

46017-034

$34.36

3

CASE R.H SWITCH LOWER

46022-012

Unavailable

4

LEVER-GRIP,FRONT BRAKE

46058-004

$20.15

5

SPRING THROTTLE GRIP

46024-001

$0.47

5

SPRING THROTTLE GRIP

46024-002

Unavailable

6

WIRING HARNESS R.H SW

46032-010

Unavailable

7

HOLDER R.H SWITCH

46037-009

$3.00

8

GRIP-ASSY,RH

46017-1071

Unavailable

9

KNOB ASSY R.H SWITCH

46043-002

Unavailable

10

SLIDE BLOCK AY R.H SW

46045-004

Unavailable

11

LEVER FRONT BRAKE

46058-012

Unavailable

12

RUBBER R.H GRIP

46061-010

Unavailable

13

UNAVAILABLE IN PRICE BOOK

92027-018

Unavailable

13

BOLT HEX HEAD 5X20

92007-020

Unavailable

14

COLLAR LEVER

46059-005

Unavailable

14

COLLAR LEVER

46059-011

Unavailable

15

WASHER LOCK 5MM

464H0500

$1.51

16

NUT-HEX,5MM

312B0500

Unavailable

16

NUT-HEX,5MM

312B0500

Unavailable

17

SCREW,CABLE ADJUST

46055-010

$29.42

18

NUT LOCK ADJUST SCREW

46056-001

Unavailable

19

WASHER SPRING 5MM

461F0500

Unavailable

20

SCREW-PAN-CROS

220B0520

$0.62

20

SCREW-PAN-CROS

220B0520

$0.62

21

SCREW-PAN-CROS

220B0518

Unavailable

21

SCREW-PAN-CROS

220B0518

Unavailable

22

GRIP ASSY L.H

46074-036

$29.02

22-1

CASE L.H SWITCH LOWER

46077-008

Unavailable

23

LEVER-GRIP,CLUTCH

46092-015

$19.69

24

UNAVAILABLE IN PRICE BOOK

26082-011

Unavailable

25

LEVER FRONT BRAKE

46058-008

$7.22

26

CASE L.H SWITCH UPPER

46086-007

Unavailable

27

KNOB ASSY L.H SWITCH

46088-001

Unavailable

28

RUBBER L.H GRIP

46075-010

Unavailable

29

LEVER ASSY,STARTER

46109-012

Unavailable

30

REAR VIEW MIRROR

56001-005

Unavailable

30

REAR VIEW MIRROR

56001-005

Unavailable

31

SWITCH ASSY LH BUTTON

46078-003

$7.01

32

SLIDE BLOCK AY L.H SW

46089-002

Unavailable
