Partiron

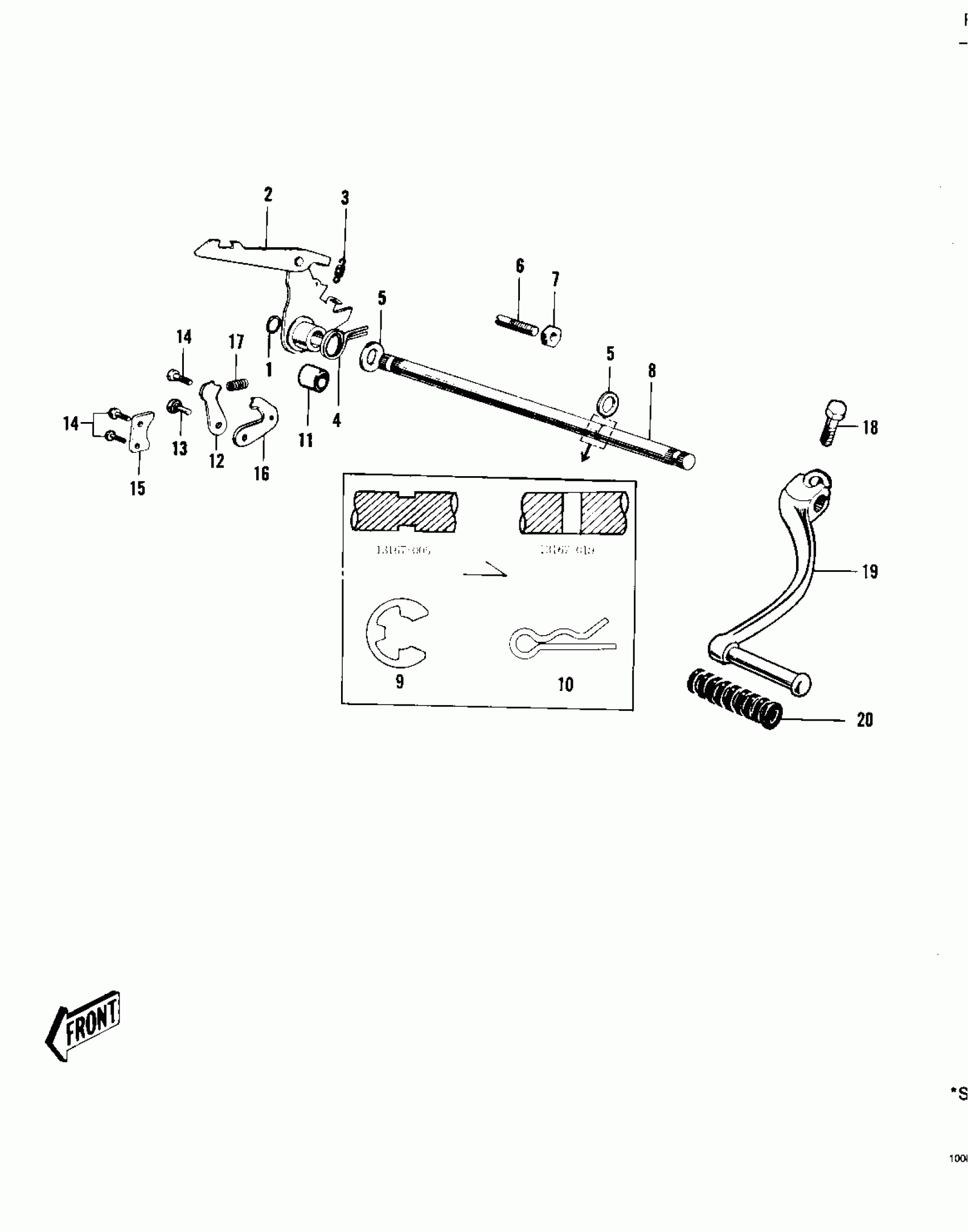

Kawasaki Sidewinder GEAR CHANGE MECHANISM Diagram

#

Description
Price

1

CIRCLIP 10MM

92033-002

$3.80

2

LEVER-COMP-CHANGE

13161-5002

Unavailable

2

LEVER ASSY,GEAR CHANG

13161-037

Unavailable

3

SPRING GEAR CHNG LEV

92083-011

$3.66

4

SPRING,TENSION

92081-1129

$7.18

4

UNAVAILABLE IN PRICE BOOK

92083-1129

Unavailable

5

WASER 12MM

92022-003

$2.20

6

BOLT,RETURN SPRING

92001-1401

$4.17

6

BOLT,RETURN SPRING

92001-1401

Unavailable

7

NUT 8MM

312B0800

Unavailable

8

UNAVAILABLE IN PRICE BOOK

13167-005

Unavailable

8

LEVER-COMP-CHANGE

13161-5002

Unavailable

8

LEVER ASSY,GEAR CHANG

13161-037

Unavailable

9

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

10

COTTER PIN

92041-004

$5.00

11

COLLAR,12X18X11.5

92027-121

Unavailable

12

LEVER GEAR CHNG DRUM

13168-003

Unavailable

13

SCREW CHANGE DRUM LEV

92011-001

$0.59

14

SCREW-PAN-CROS,6X14

220B0614

$1.14

15

PLATE DRUM LEV POSTON

13169-001

Unavailable

16

PLATE CHANGE DRUM LEV

13170-003

Unavailable

17

SPRING,CHNG DRUM LEVR

92081-004

$1.95

18

BOLT-UPSET,6X20

112G0620

Unavailable

19

PEDAL GEAR CHANGE

13156-019

Unavailable

20

DAMPER,CHANGE PEDAL

13157-004

Unavailable
