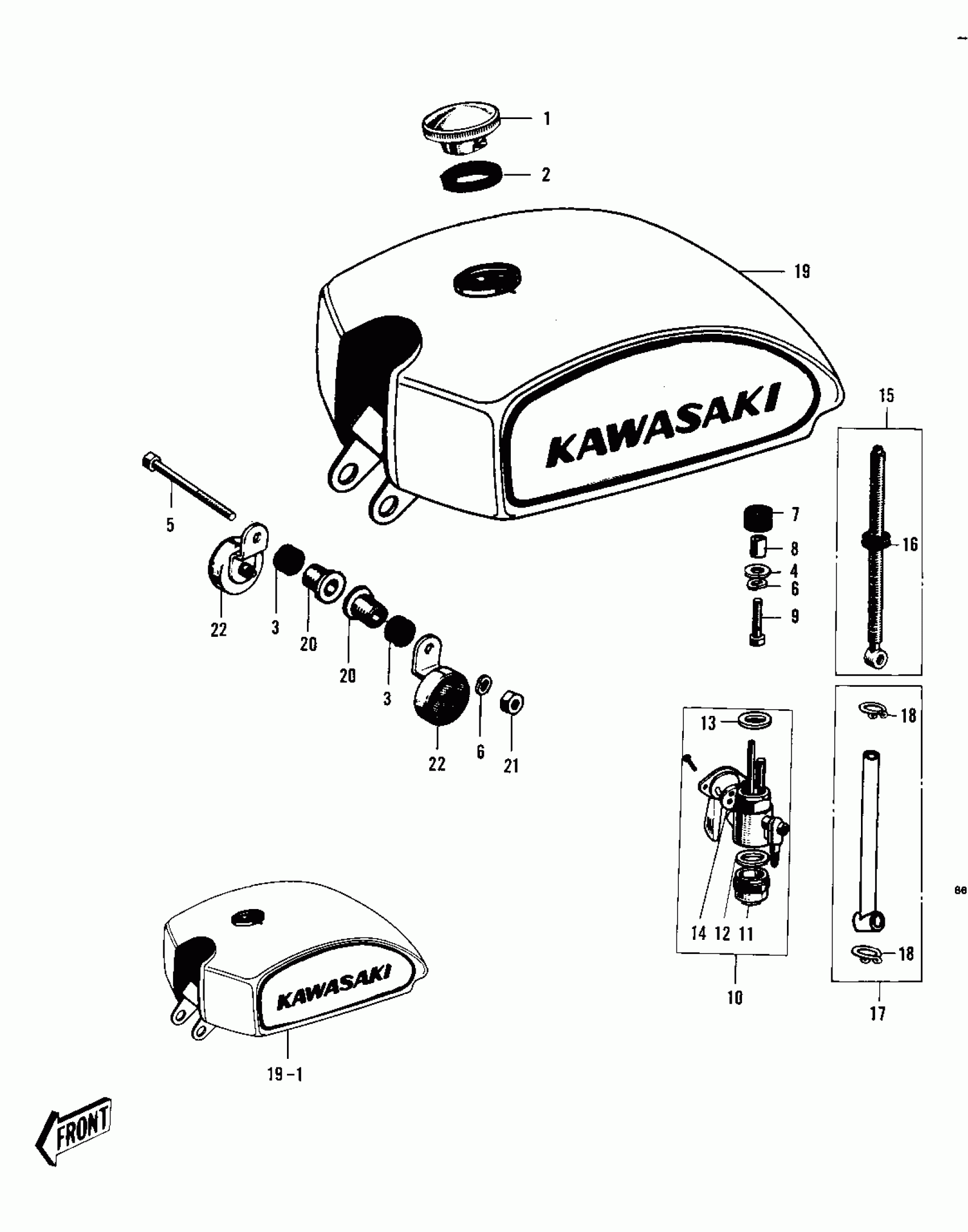

Kawasaki Sidewinder FUEL TANK Diagram

#

Description
Price

1

CAP ASSY, LOCKING

51048-006

Unavailable

2

UNAVAILABLE IN PRICE BOOK

51049-003

Unavailable

3

DAMPER RUBB TANK FRNT

92075-013

$3.76

4

WASHER,8X26X2.3

92022-1564

$3.29

5

UNAVAILABLE IN PRICE BOOK

116B08112

Unavailable

6

WASHER SPRING 8MM

461F0800

Unavailable

7

DAMPER RUBB TANK REAR

92075-030

Unavailable

8

COLLAR,8.8X12X17

92027-034

$7.15

9

BOLT HEX HEAD 8X40

116B0840

Unavailable

10

COCK ASSY,FUEL

51023-044

Unavailable

11

CUP FUEL COCK

51036-003

$4.25

12

GASKET FUEL COCK CUP

51037-007

Unavailable

13

GASKET FUEL COCK JONT

51032-001

Unavailable

14

GASKET FUEL COCK LEV

92065-019

Unavailable

15

PIPE FUEL

51044-025

Unavailable

16

GROMMET,PIPE

92071-038

Unavailable

17

PIPE-FUEL

51044-030

Unavailable

18

CLAMP,TUBE

92037-010

$2.99

19

TANK-FUEL,M.BLUE

51001-045-32

$179.70

19-1

UNAVAILABLE IN PRICE BOOK

51001-045-34

Unavailable

20

COLLAR,FUEL TANK FITT

92027-1134

$7.83

21

NUT,8MM

311B0800

Unavailable

22

REFLECTOR REFLEX

28001-004

$6.59
