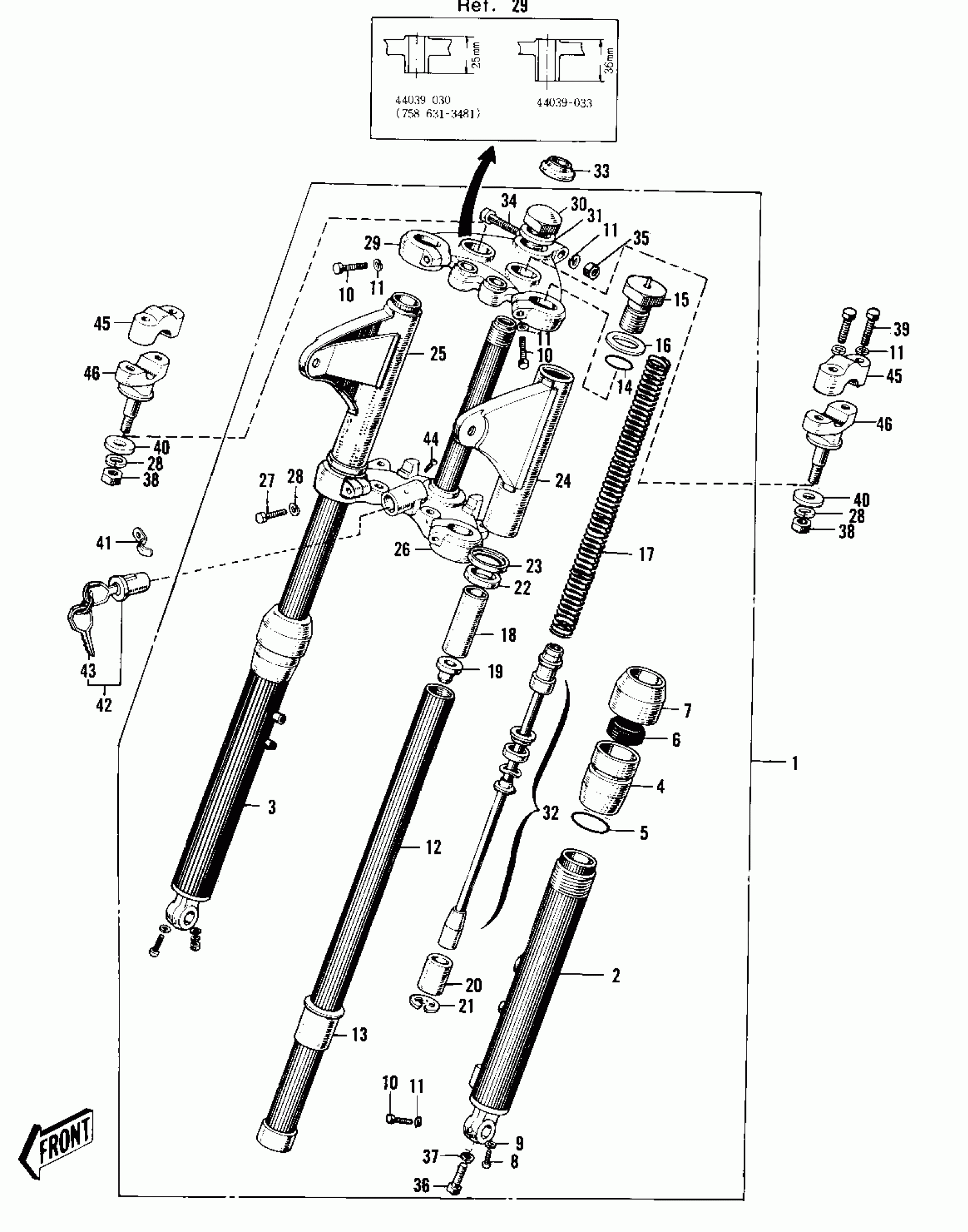

Kawasaki Sidewinder FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASY,SILVER

44001-041-14

Unavailable

1

UNAVAILABLE IN PRICE BOOK

44001-061-14

Unavailable

1

FRONT FORK ASSY.

44001-041-15

Unavailable

1

FRONT FORK ASY,SILVER

44001-061-15

$856.64

2

TUBE,LH,FORK OUTER

44005-027

$81.14

3

TUBE,RH,FORK OUTER

44006-026

$87.88

4

NUT FORK OUTER TUBE

44007-015

Unavailable

5

'O' RING OUTER TUBE

44046-016

Unavailable

6

OIL SEAL,FORK

44009-020

$61.69

7

DUST SHIELD

44010-014

Unavailable

8

SCREW PAN HEAD 4X8

220B0408

Unavailable

9

GASKET,FORK DRAIN PLUG

44045-002

$3.95

10

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

11

WASHER SPRING 8MM

461F0800

Unavailable

12

TUBE FORK INNER

44013-020

Unavailable

13

GUIDE FORK INNER TUBE

44015-011

$21.61

14

'O' RING FORK TOP

44046-015

$9.47

15

BOLT FORK TOP

44041-029

$32.49

16

WASHER FORK TOP

44043-038

$1.20

17

SPRING FORK

44026-026

$18.68

18

SPACER SPRING

44021-002

$2.76

19

GUIDE FORK SPRING

44028-017

$1.46

20

PISTON FORK

44018-003

$13.81

21

CIRCLIP FORK PISTON

44044-008

$9.36

22

GASKET FORK COVER

44045-029

Unavailable

23

WASHER FORK COVER

44043-034

Unavailable

24

COVER L.H FORK SILVER

44033-028-14

$25.02

24

COVER L.H FORK SILVER

44033-028-15

$23.46

25

COVER R.H FORK SILVER

44034-027-14

$24.93

25

COVER R.H FORK SILVER

44034-027-15

$23.46

26

STEM STEERING

44037-028

$129.44

27

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

28

WASHER SPRING 10MM

461F1000

Unavailable

29

HEAD STEERING STEM

44039-030

$92.69

29

HEAD-STEERING STEM

44039-033

$115.63

30

BOLT STRNG STEM HEAD

44041-028

$8.00

31

WASHER STRN STM HEAD

44043-039

$1.85

32

CYLINDER-FORK

44022-002

$88.58

33

RACE,STEERING STEM BEARING

92047-010

$10.12

34

BOLT HEX HEAD 8X45

116B0845

Unavailable

35

NUT,8MM

311B0800

Unavailable

36

BOLT FORK CYLINDER

44041-027

$4.83

37

GASKET FORK CYL BOLT

44045-030

Unavailable

38

NUT-HEX-FINE,10MM

314B1000

Unavailable

39

BOLT 8X38

92001-1405

$12.52

40

COLLER

92027-081

$2.19

41

CLAMP CABLE

92037-022

$3.41

42

LOCK ASSY STEERING

27016-016

$10.44

43

KEY SET NO121

27008-026-21

$5.56

43

KEY SET NO122

27008-026-22

$6.32

43

KEY SET NO123

27008-026-23

$6.32

43

KEY SET NO124

27008-026-24

$5.25

44

RIVET

92099-001

$3.51

45

HOLDER-HANDLE,UPP

46012-004

Unavailable

46

HOLDER HANDLEBAR LOW

46012-007

Unavailable
