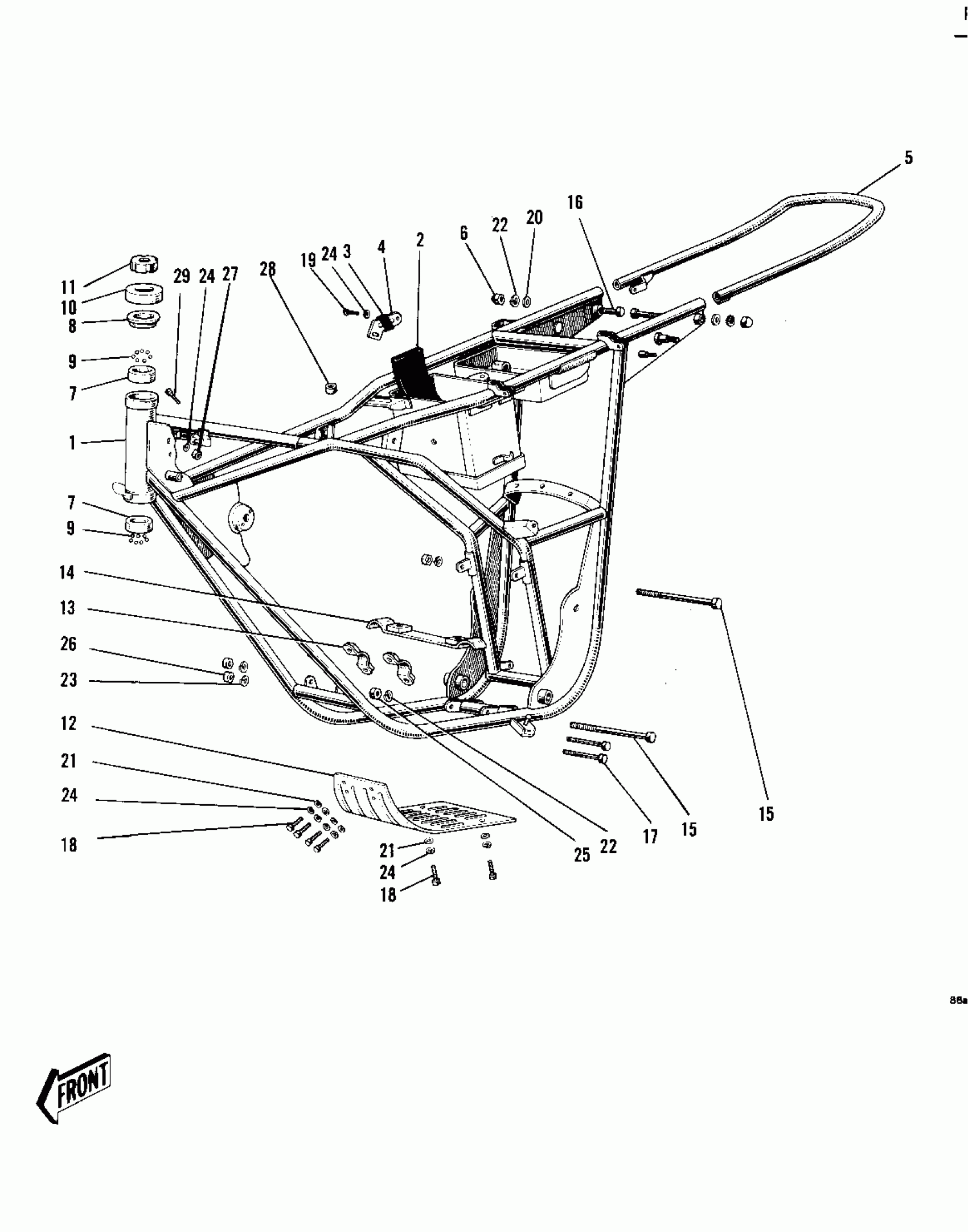

Kawasaki Sidewinder FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

32002-027

$195.70

2

MAT BATTERY

32103-006

Unavailable

3

PROTECTOR BATTERY

31082-002

Unavailable

4

BAND BATTERY

32100-012

$9.00

5

STAY REAR FENDER

35032-013

$23.93

6

NUT,CAP,10MM

92020-003

$4.88

7

RACE,STEERING STEM BEARING,LWR

92048-005

$11.83

8

CONE STERNG BERG UPP

92047-003

Unavailable

9

BALL-STEEL,1/4

600A0800

$0.59

10

CAP STEERING STEM

46098-005

Unavailable

11

NUT STEERING STEM LCK

92090-006

$14.24

12

GUARD ENGINE

55011-006

$17.78

13

BRACKET ENG GUARD FRT

55016-001

$2.32

14

BRACKET ENG GUARD RR

55016-002

$4.02

15

BOLT,HEX HEAD,10X125

92001-1248

Unavailable

16

BOLT-SMALL-FINE,10X45

113G1045

Unavailable

17

UNAVAILABLE IN PRICE BOOK

116B0856

Unavailable

18

BOLT-UPSET,6X16

112G0616

Unavailable

19

SCREW-PAN-CROS,6X16

220B0616

Unavailable

20

WASHER PLAIN 10MM

410B1000

Unavailable

21

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

22

WASHER SPRING 10MM

461F1000

Unavailable

23

WASHER SPRING 8MM

461F0800

Unavailable

24

WASHER SPRING 6MM

461F0600

Unavailable

25

NUT-HEX-FINE,10MM

314B1000

Unavailable

26

NUT,8MM

311B0800

Unavailable

27

NUT 6MM

311B0600

Unavailable

28

NUT 6MM

311B0600

Unavailable

29

UNAVAILABLE IN PRICE BOOK

116B0660

Unavailable
