1970 Kawasaki Sidewinder Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1970 Kawasaki Sidewinder, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

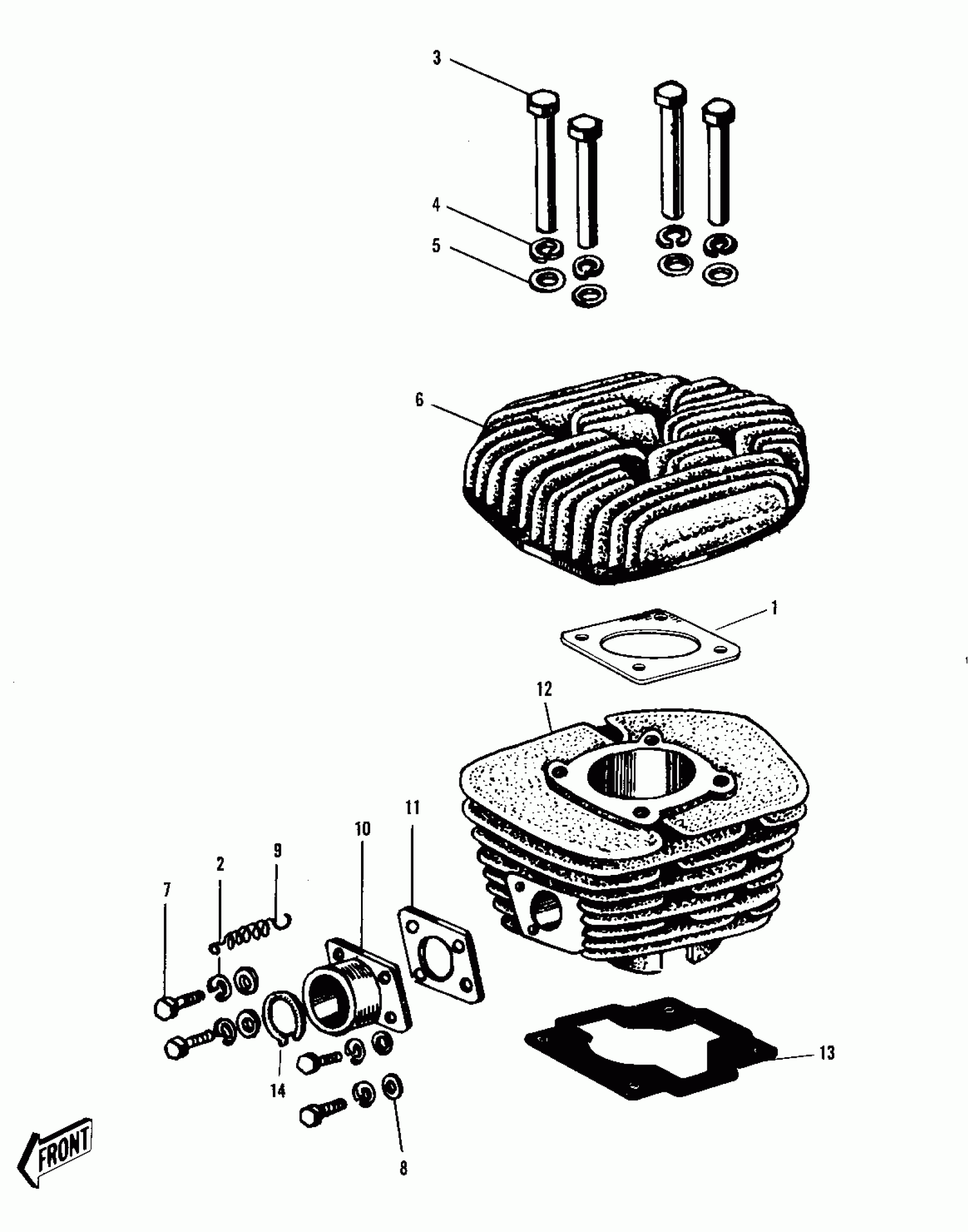

1970 Kawasaki Sidewinder Cylinder Head/cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET CYLINDER HEAD

11004-032

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

NUT 10MM

92015-022

1
Out of stock

4

WASHER SPRING 14MM

461F1400

1
Out of stock

5

WASHER-PLAIN-SMALL,14MM

410B1400

1
Out of stock

6

CYLINDER HEAD

11001-030

1
Out of stock

7

BOLT-UPSET,6X20

112G0620

1
Out of stock

8

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

9

SPRING CONNECTOR

18071-001

—
Out of stock

9

SPRING-CONNECTOR

18071-003

1
Out of stock

10

HOLDER EXHAUST PIPE

18069-016

—
Out of stock

10

HOLDER-EXHAUST PIPE

18069-031

1
Out of stock

11

GASKET EXH PIPE HOLD

18067-011

1
Out of stock

12

CYLINDER

11005-049

1
Out of stock

13

GASKET CYLINDER BASE

11009-014

1
Out of stock

14

UNAVAILABLE IN PRICE BOOK

56019-102

—
Out of stock
