Description

Price

1

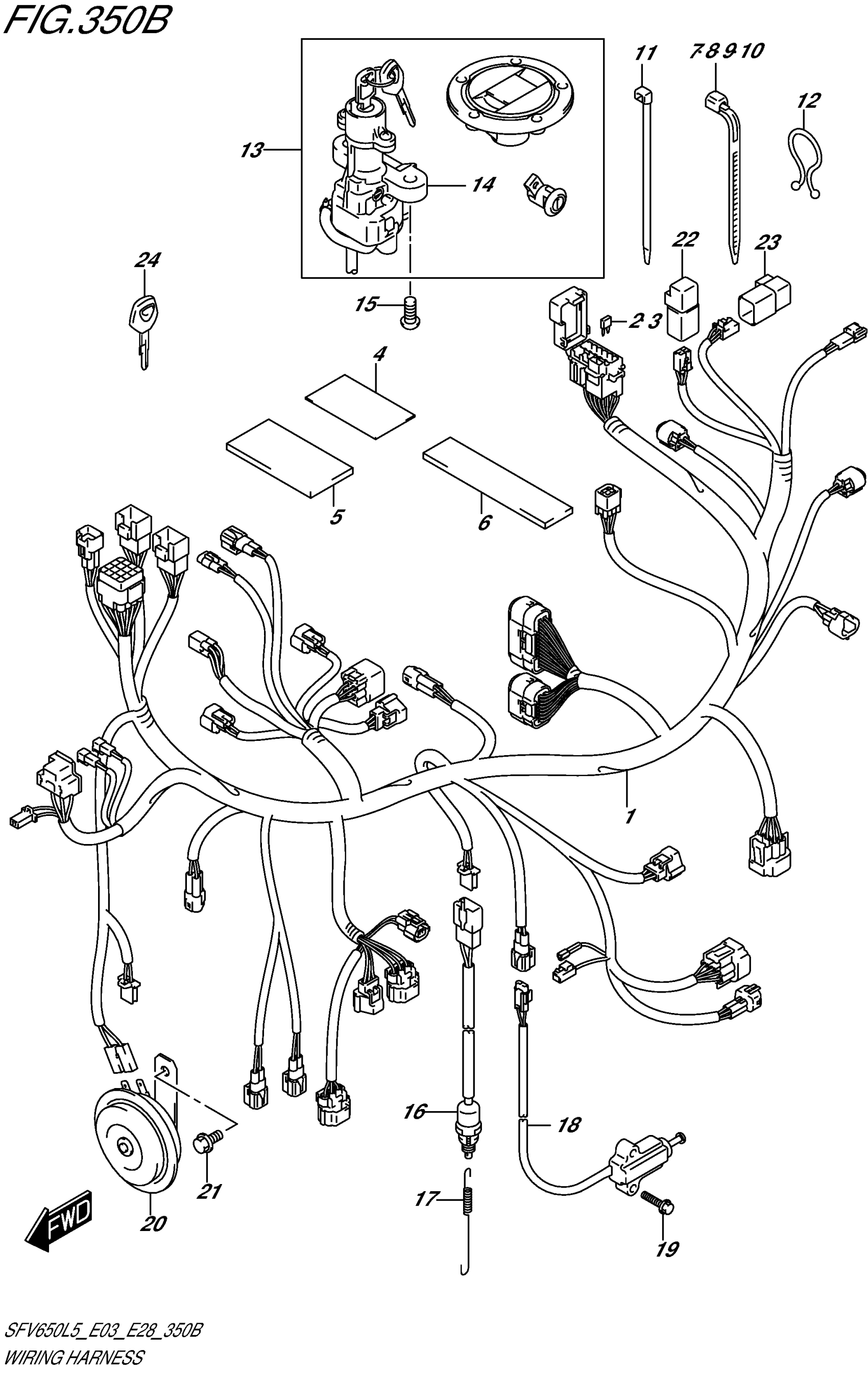

HARNESS, WIRING

36610-44HD0

$1,229.90

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42

5

PROTECTOR (30X60X3)

36920-08D00

Unavailable

6

PROTECTOR (30X70)

94474-22D00

Unavailable

7

CLAMP (L:95)

09407-11401

$2.87

8

CLAMP (L:125)

09407-14403

$2.24

9

CLAMP (L:165)

09407-18402

$2.21

10

CLAMP (L:190)

09407-19401

$3.32

11

CLAMP (L:145)

09407-14407

$2.80

12

CLIP (ID:11.5)

09408-00012

$2.68

13

LOCK SET This part replaces 37000-17850.

37000-17854

$424.08

14

.LOCK ASSY,STEERING This part replaces 37100-16G40.

37100-16G42

$147.68

15

BOLT (8X20)

09139-08016

$3.04

16

SWITCH ASSY,STOP LAMP

37740-44H01

$22.47

17

SPRING

09443-06016

$3.58

18

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

$68.13

19

BOLT

01547-0620A

$2.01

20

HORN ASSY

38500-16G01

$98.98

21

BOLT (8X12)

01550-0812A

$2.31

22

RELAY ASSY | FOR FUEL PUMP

38740-24X50

$41.38

23

RELAY ASSY | FOR FAN MOTOR
