2015 Suzuki SFV650AL5 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2015 Suzuki SFV650AL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

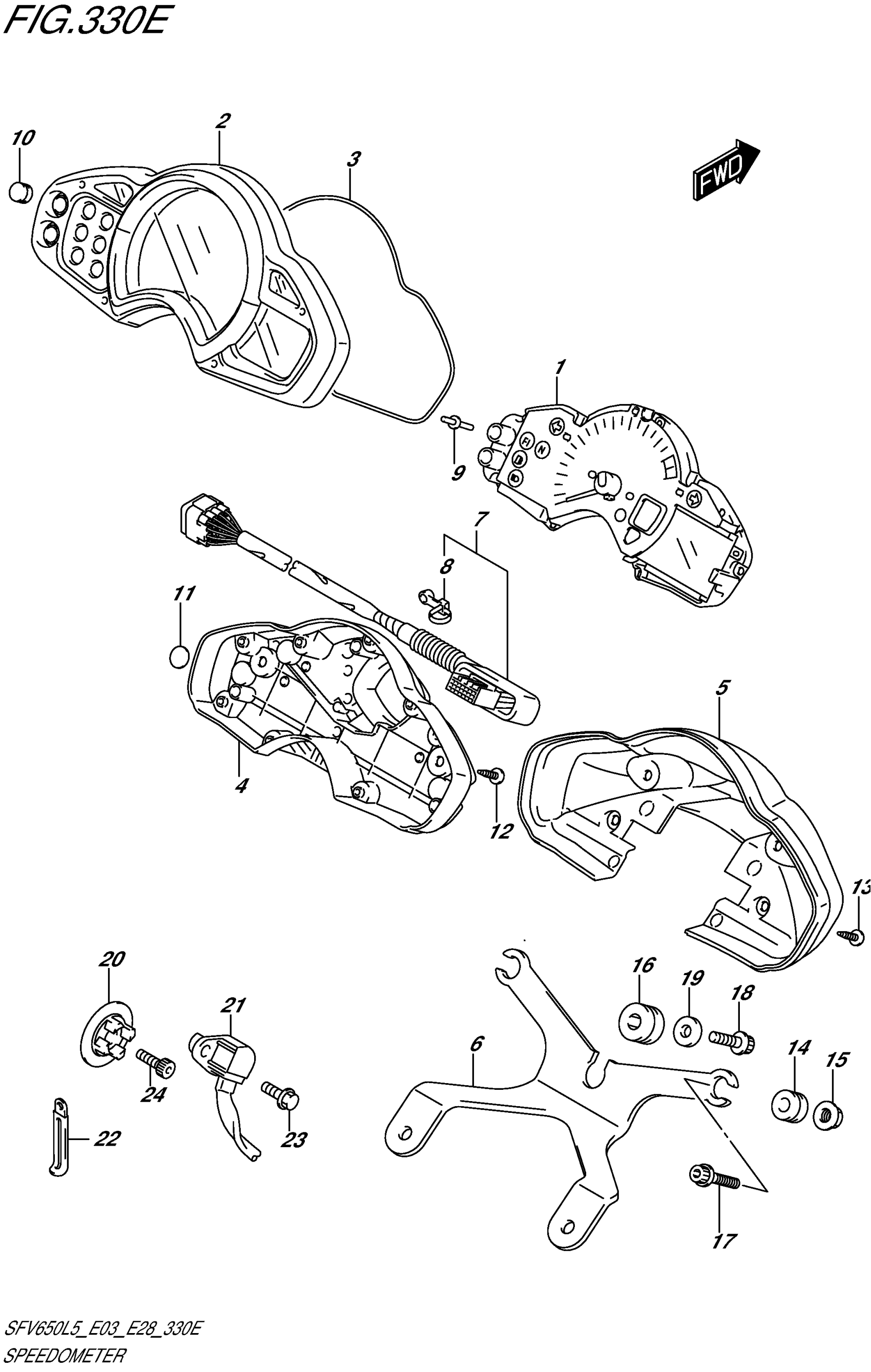

2015 Suzuki SFV650AL5 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER

34120-44H50

—
Out of stock

2

CASE ASSY

34150-44H00

1
Out of stock

3

PACKING RUBBER

34153-44H00

1
Out of stock

4

CASE

34152-44H00

1
Out of stock

5

CASE, LOWER

34156-44H00

1
Out of stock

6

HOLDER, CASE

34162-44H00

1
Out of stock

7

WIRE, ASSY

34175-44H01

1
Out of stock

8

CLAMP, LEAD WIRE

34146-44G00

—
Out of stock

9

KNOB, SPEEDOMETER

34124-16G00

2
Out of stock

10

COVER, SPEEDOMETER

34126-44G00

2
Out of stock

11

SEAL

34167-13E00

3
Out of stock

12

SCREW, 3X12

34183-29F00

9
Out of stock

13

SCREW, 4X14

34149-16B00

4
Out of stock

14

.CUSHION

34996-43410

2
Out of stock

15

NUT

09159-05049

2
Out of stock

16

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

1
Out of stock

17

BOLT

07120-0616B

2
Out of stock

18

SCREW, SPEEDOMETER

34149-44H00

1
Out of stock

19

WASHER, SPEEDOMETER

34181-21D00

1
Out of stock

20

ROTOR,SPEED

34981-38G01

1
Out of stock

21

SENSOR, SPEED This part replaces 34990-47F00.

34990-35F00

1
Out of stock

22

CLAMP (L:45)

09404-06429

1
Out of stock

23

BOLT

07120-0512B

1
Out of stock

24

BOLT

07130-0825B

1
Out of stock
