2015 Suzuki SFV650AL5 Headlamp Cover Diagram

← All diagrams

Find the part on the Headlamp Cover diagram for your 2015 Suzuki SFV650AL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

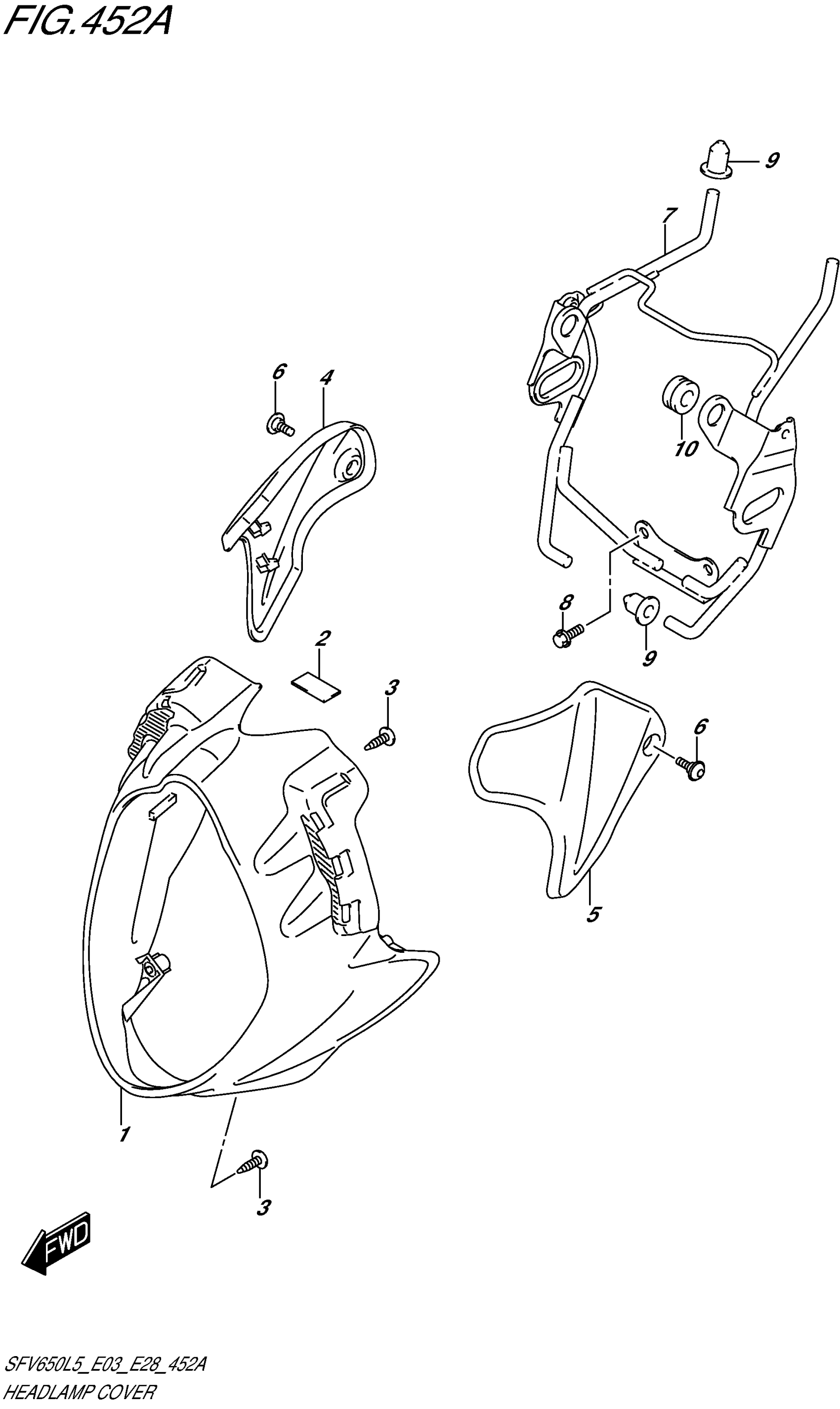

2015 Suzuki SFV650AL5 Headlamp Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLAMP (BLACK)

51811-44H00-291

1
Out of stock

2

CUSHION | CUT AS REQUIRED

44543-10G00

6
Out of stock

3

SCREW

03541-0516A

6
Out of stock

4

COVER, HEADLAMP RH (GRAY) | FOR AR4

51821-44H00-PGZ

—
Out of stock

4

COVER, HEADLAMP RH (WHITE) | FOR AJP

51821-44H00-YWW

—
Out of stock

4

COVER,HEADLAMP, | FOR KGL This part replaces 51821-44H00-YKV.

51821-44H01-YKV

1
Out of stock

5

COVER, HEADLAMP LH (GRAY) | FOR AR4

51831-44H00-PGZ

—
Out of stock

5

COVER, HEADLAMP LH (WHITE) | FOR AJP

51831-44H00-YWW

—
Out of stock

5

COVER,HEADLAMP, | FOR KGL This part replaces 51831-44H00-YKV.

51831-44H01-YKV

1
Out of stock

6

SCREW (5X13)

09139-05064

2
Out of stock

7

BRACE, HOUSING

51850-44H00

1
Out of stock

8

BOLT

01547-0612A

2
Out of stock

9

CUSHION, BRACE

51831-21D00

4
Out of stock

10

CUSHION

09320-10501

2
Out of stock
