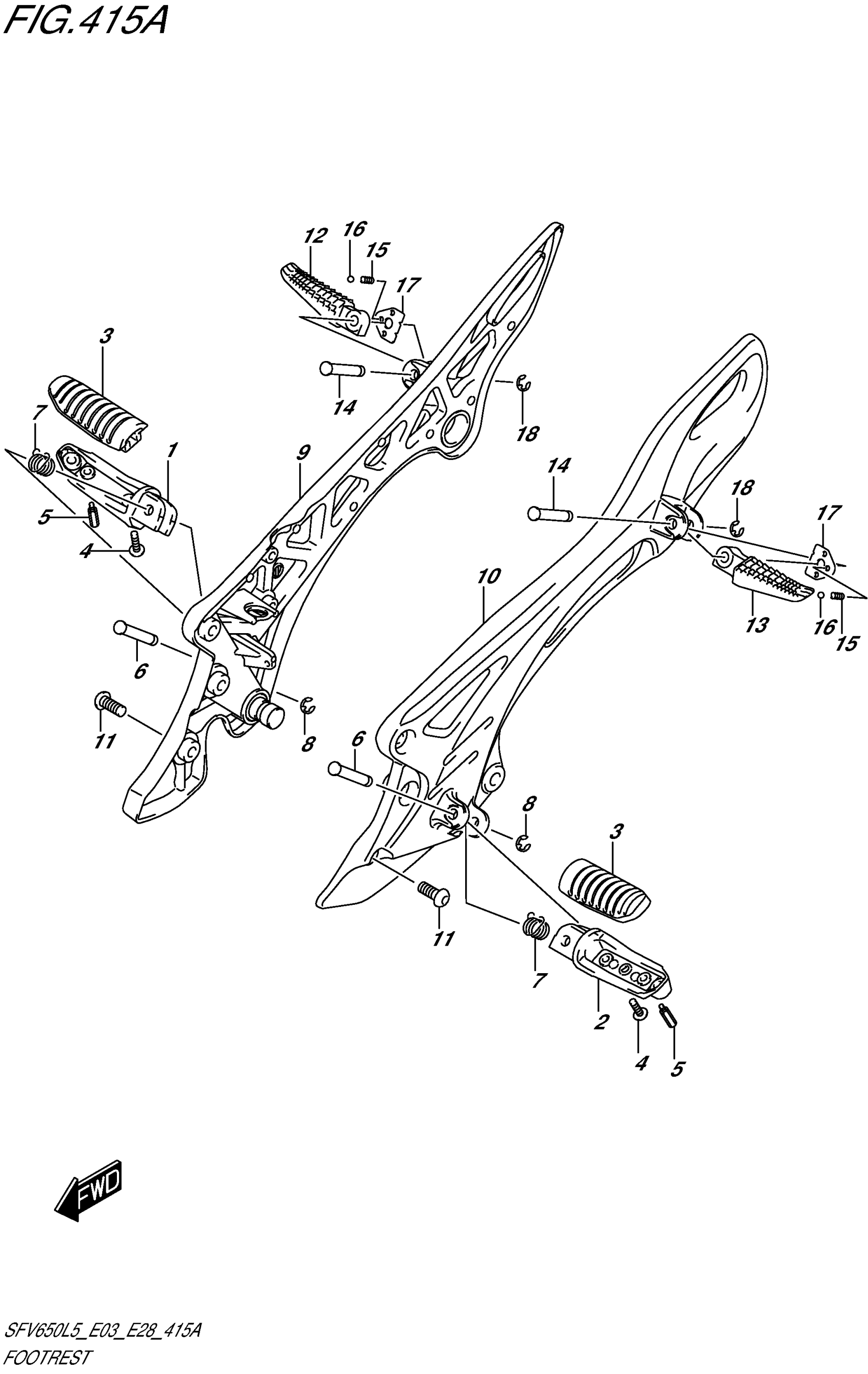

Suzuki SFV650AL5 (2015) FOOTREST Diagram

#

Description
Price

1

BAR,FR FOOTREST,R

43511-44G10

$44.44

2

BAR,FR FOOTREST,L

43521-44G10

$43.20

3

RUBBER

43550-44G10

$26.75

4

SCREW

02142-0512A

$1.37

5

BOLT, BANK SENSOR

43576-48B30

$16.93

6

PIN

09208-08019

$2.77

7

SPRING

09448-14046

$3.77

8

E RING

08332-1106A

$1.43

9

BRACKET, FOOTREST RH (SILVER)

43510-44H00-20H

Unavailable

10

BRACKET, FOOTREST LH (SILVER)

43521-44H00-20H

Unavailable

11

BOLT (8X23)

09106-08186

$3.08

12

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$50.40

13

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$48.75

14

PIN

09208-08020

$3.62

15

SPRING

09440-05003

$1.48

16

BALL

06111-07004

$1.22

17

PLATE,PILLION FOOTREST

43816-01H10

$8.87

18

E RING

08332-1106A

$1.43
