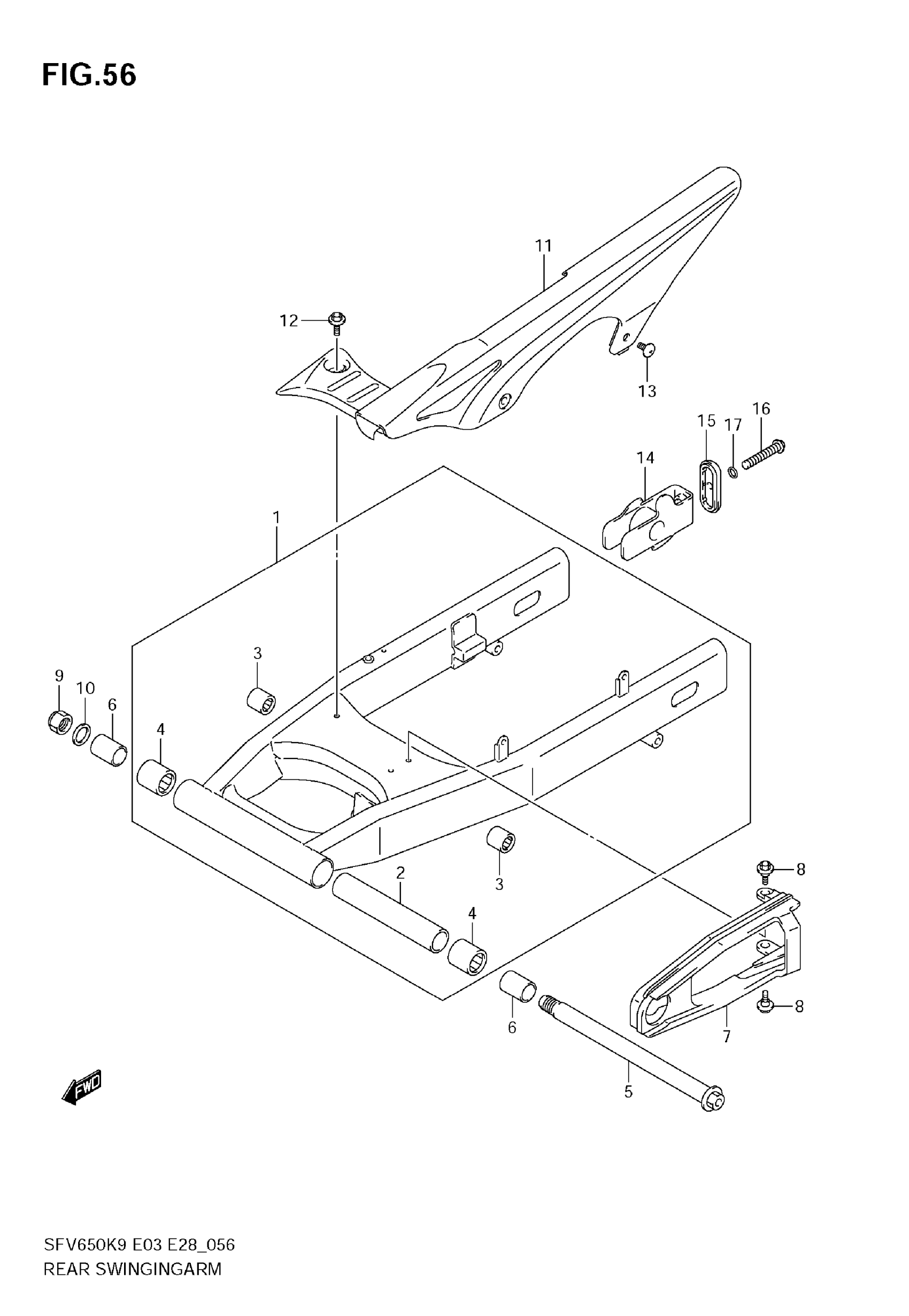

Find the part on the Rear Swingingarm diagram for your 2009 Suzuki SFV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki SFV650 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM ASS | Includes Item(s) 2 - 4 This part replaces 61000-44H00-YAP.

61000-44H01-YAP

1
Out of stock

2

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

1
Out of stock

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

2
Out of stock

4

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

2
Out of stock

5

SHAFT, RR SWGARM PIVOT

61211-31E00

1
Out of stock

6

SPACER, RR SWGARM PIVOT

61251-21E00

2
Out of stock

7

BUFFER,CHAIN TOUCH DEFENSE This part replaces 61273-44H00.

61273-44H01

1
Out of stock

8

BOLT, CHAIN BUFFER

09111-06072

2
Out of stock

9

NUT, RR SWGARM PIVOT

09159-18007

1
Out of stock

10

WASHER, RR SWGARM PIVOT

09160-18030

1
Out of stock

11

CASE,CHAIN

61310-44H00

1
Out of stock

12

BOLT, CHAIN CASE

09111-06065

2
Out of stock

13

SCREW, CHAIN CASE

09139-06168

2
Out of stock

14

ADJUSTER,CHAIN

61410-44H00

2
Out of stock

15

PLATE, ADJUSTER GUIDE (SILVER)

61421-44H00-13L

2
Out of stock

16

BOLT, CHAIN ADJUSTER

09106-08119

2
Out of stock

17

WASHER, CHAIN ADJUSTER

09164-08015

2
Out of stock
