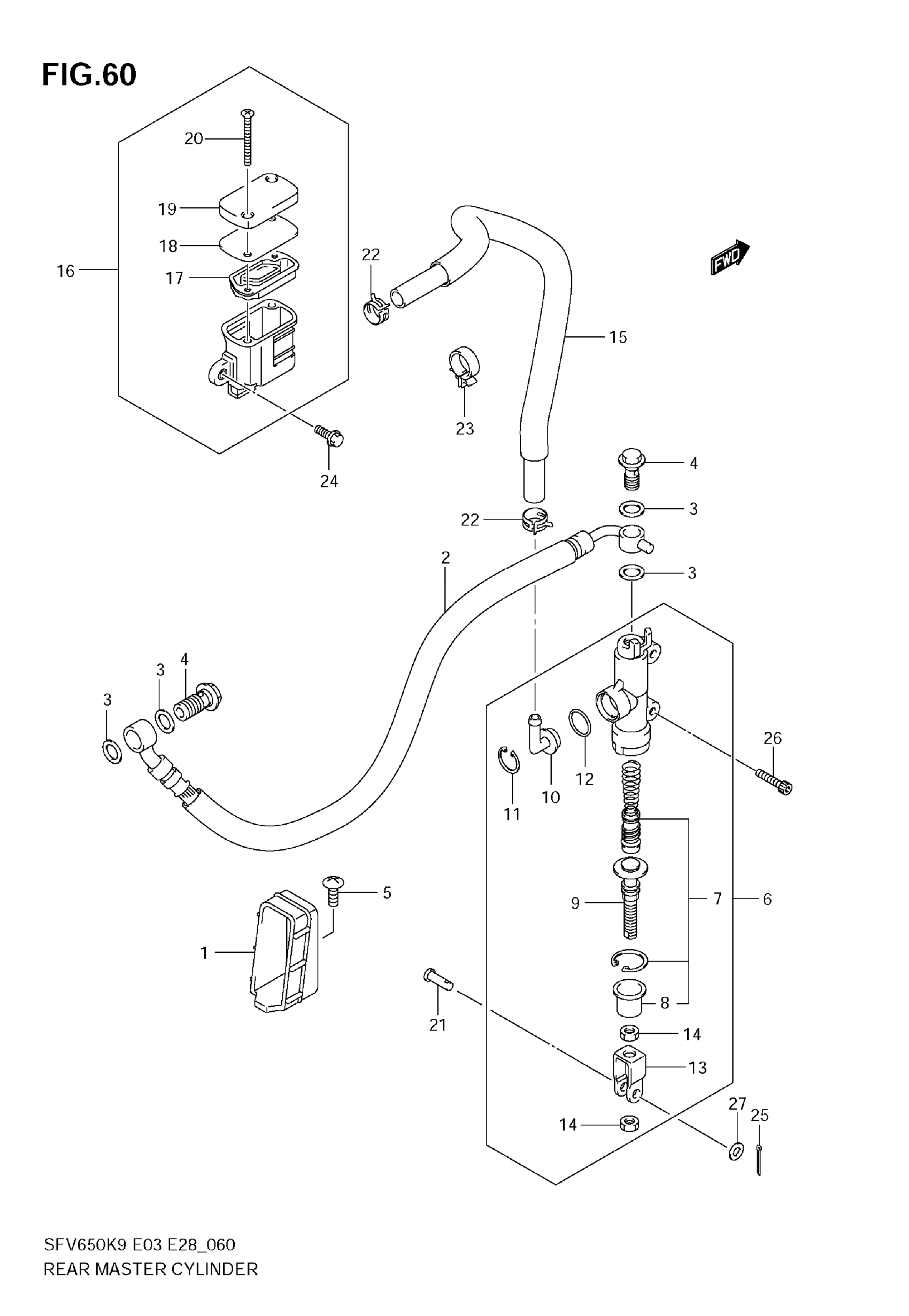

Suzuki SFV650 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

GUIDE,RR BRAKE HOSE

69243-44H00

Unavailable

2

HOSE, REAR BRAKE

69480-44H00

Unavailable

3

WASHER (10X15X1.5)

09161-10009

$1.83

4

BOLT, BRAKE FLUID

09360-10062

$5.81

5

SCREW, GUIDE RR BRAKE

02142-0616A

$1.37

6

CYLINDER ASSY,RR MASTER | Includes Item(s) 7 - 14

69600-44H00

Unavailable

7

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$24.34

8

.BOOT

69691-00A00

$5.00

9

ROD, PUSH

69670-48B00

$35.80

10

CONNECTOR

69672-00B20

$6.42

11

CIRCLIP

69674-00B20

$3.73

12

O RING

69686-34200

$2.80

13

YOKE

69692-44H00

$19.03

14

NUT

69693-05A00

$1.86

15

HOSE, RR RESERVOIR TANK

69730-44H00

Unavailable

16

TANK ASSY,RESERVOIR | Includes Item(s) 17 - 20 This part replaces 69740-01H10.

69740-18K00

$25.72

17

DIAPHRAGM

69667-01H00

$7.12

18

PLATE, DIAPHRAGM

69668-01H00

$6.75

19

CAP, RESERVOIR

69669-01H00

Unavailable

20

SCREW

69689-01H00

$5.02

21

PIN, REAR MASTER CYLIND

09200-06068

$3.71

22

CLIP, RR RESERVER TANK HOSE

09401-12404

$2.37

23

CLAMP, RR RESERVER TANK HOS

09403-16412

$3.08

24

BOLT, RESERVOIR TANK

01547-0612A

$2.01

25

PIN, REAR MASTER COTTER

04111-2015A

$1.22

26

BOLT, REAR MASTER CYLINDER

07130-06257

$2.90

27

WASHER, REAR MASTER

08322-0106A

$1.83
