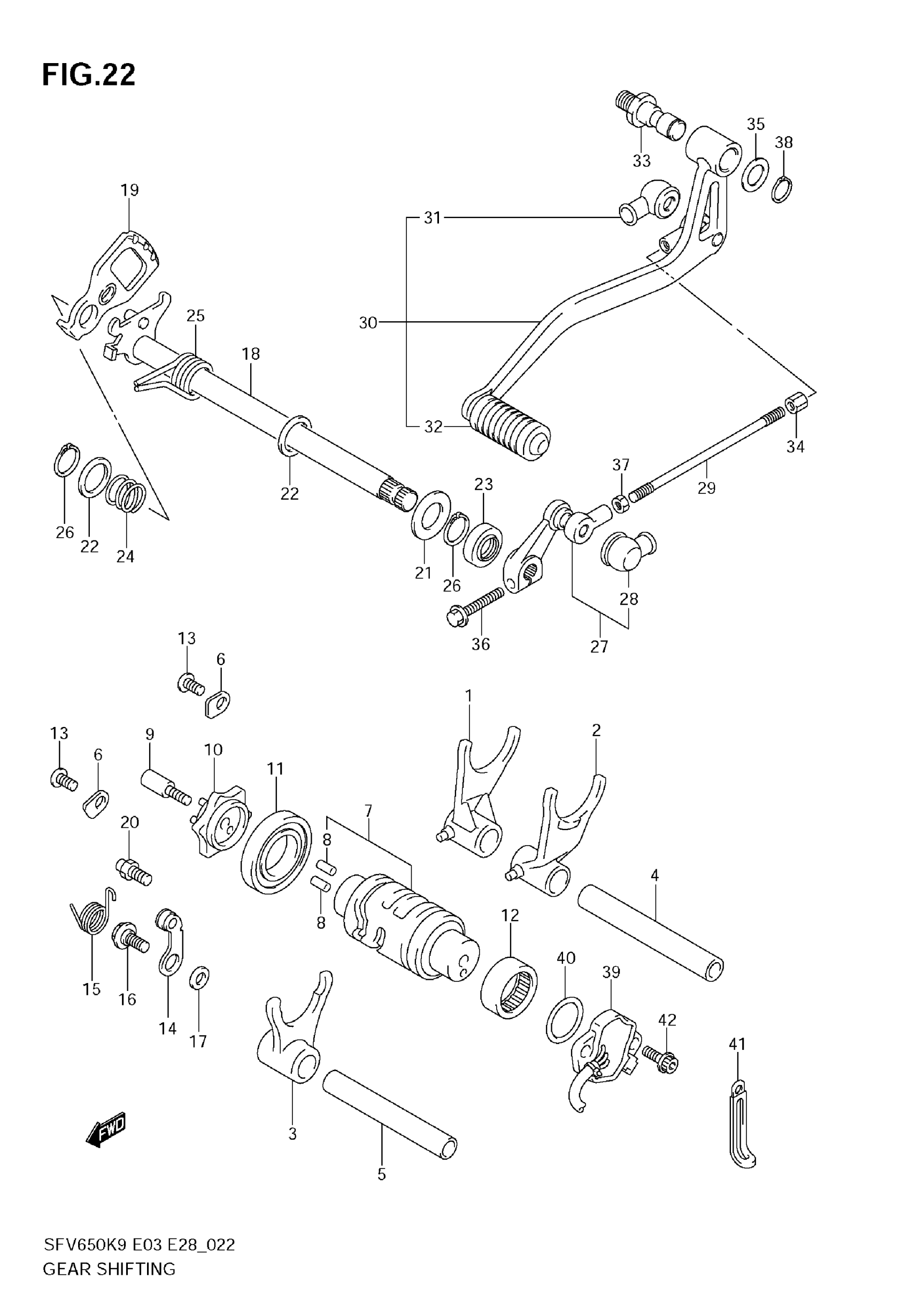

Suzuki SFV650 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-42E20

Unavailable

2

FORK,GEAR SHIFT NO.2

25221-42E20

Unavailable

3

FORK,GEAR SHIFT NO.3

25231-42E20

Unavailable

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$28.98

5

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$35.78

6

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.80

7

CAM,GEAR SHIFT | Includes Item(s) 8

25310-19F00

Unavailable

8

PIN (4X13.8)

04221-04089

$1.15

9

STOPPER, GEAR SHIFT CAM

25312-42F01

$7.60

10

PLATE,GEAR SHIFT CAM

25381-19F20

$65.20

11

BEARING (25X47X8)

09262-25006

$23.85

12

BEARING (25X32X12)

09263-25018

$19.88

13

SCREW

02112-0612A

$1.46

14

STOPPER, SHIFT CAM

25350-35F00

$19.62

15

SPRING,SHIFT

25355-35F01

$3.90

16

BOLT (6X14.3)

09111-06041

$2.73

17

WASHER, CAM STOPPER THR

08211-06141

$1.66

18

SHAFT,GEAR SHIFT

25510-19F10

$131.02

19

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$23.32

20

STOPPER, GEAR SHIFT ARM

25671-01011

$4.28

21

WASHER (14X29X0.8)

09160-14016

$1.98

22

WASHER (14X22X1)

09181-14167

$2.64

23

SEAL (14X22X6)

09283-14006

$6.23

24

SPRING

09440-17009

$1.80

25

SPRING

09444-20001

$4.97

26

CIRCLIP

08331-3114A

$1.97

27

ARM,GEAR SHIFT LINK | Includes Item(s) 28 This part replaces 25520-22A10.

25520-22A11

$71.43

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

29

ROD,GEAR SHIFT LINK

25525-44H00

$12.08

30

LEVER ASSY,GEAR SHIFT | Includes Item(s) 31 - 32 This part replaces 25600-44H00.

25600-44H02

$63.44

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

32

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.21

33

SHAFT, GEAR SHIFT LEVER

25617-03F10

$11.80

34

NUT

09140-06025

$1.89

35

WASHER (12.5X20X1)

09160-12011

$1.52

36

BOLT

01547-0620A

$2.10

37

.NUT

08310-00067

$1.91

38

CIRCLIP

08331-3112A

$1.82

39

SENSOR ASSY, GEAR POSITION

37730-44H00

Unavailable

40

O-RING (D:2.4,ID:26.2)

09280-26005

$2.38

41

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.88

42

BOLT

07120-0516A

$1.72
