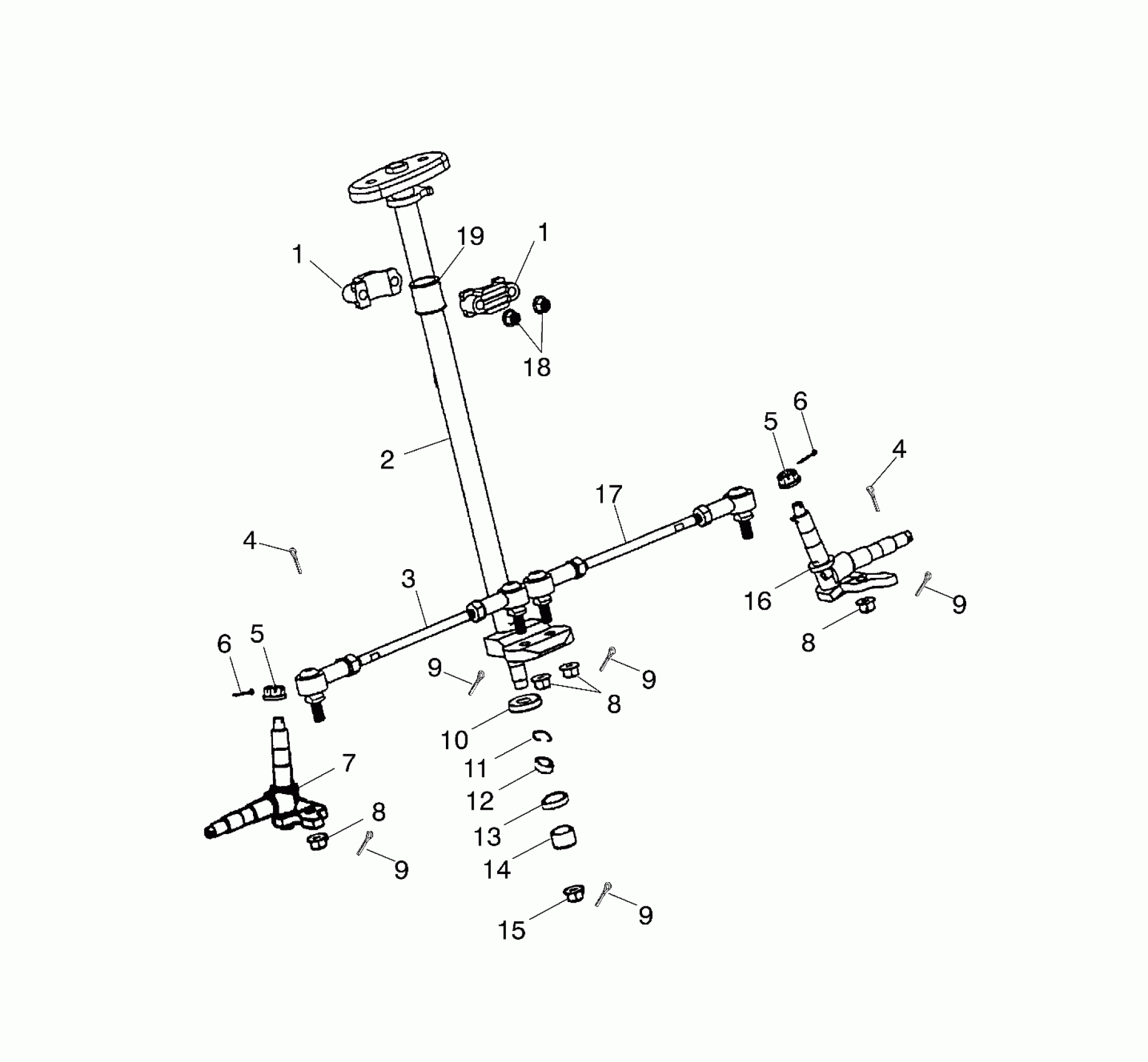

Polaris SCRAMBLER 90 - A03EA09CA STEERING - A03EA09CA (4970887088B14) Diagram

#

Description
Price

1

Bracket, Upper, Steering Shaft

0450505

$20.22

1

Bracket, Upper, Steering Shaft

0450505

$20.22

2

Shaft, Steering

0450915

Unavailable

3

Asm., Tie Rod, LH

0450987

$111.10

4

PIN, COTTER

0450395

$3.17

4

PIN, COTTER

0450395

$3.17

5

NUT, LOCK

0450502

$9.52

5

NUT, LOCK

0450502

$9.52

6

PIN, COTTER

0450507

$3.17

6

PIN, COTTER

0450507

$3.17

7

KNUCKLE, LH

0450916

Unavailable

8

NUT, LOCK

0450276

$3.97

8

NUT, LOCK

0450276

$3.97

8

NUT, LOCK

0450276

$3.97

9

PIN, COTTER

0450719

$3.17

9

PIN, COTTER

0450719

$3.17

9

PIN, COTTER

0450719

$3.17

9

PIN, COTTER

0450719

$3.17

9

PIN, COTTER

0450719

$3.17

10

SEAL, OIL

0450491

$12.13

11

CIRCLIP

0450161

$5.56

12

BEARING, BALL

0450493

$31.75

13

SEAL, OIL

0450389

$11.32

14

SPACER

0450390

$4.76

15

Nut, Lock

0450878

$10.32

16

KNUCKLE, RH

0450917

Unavailable

17

Asm., Tie Rod, RH

0450988

$111.10

18

NUT, FLANGE

0450268

$0.79

19

Sleeve, Steering Shaft

0450499

$11.11
