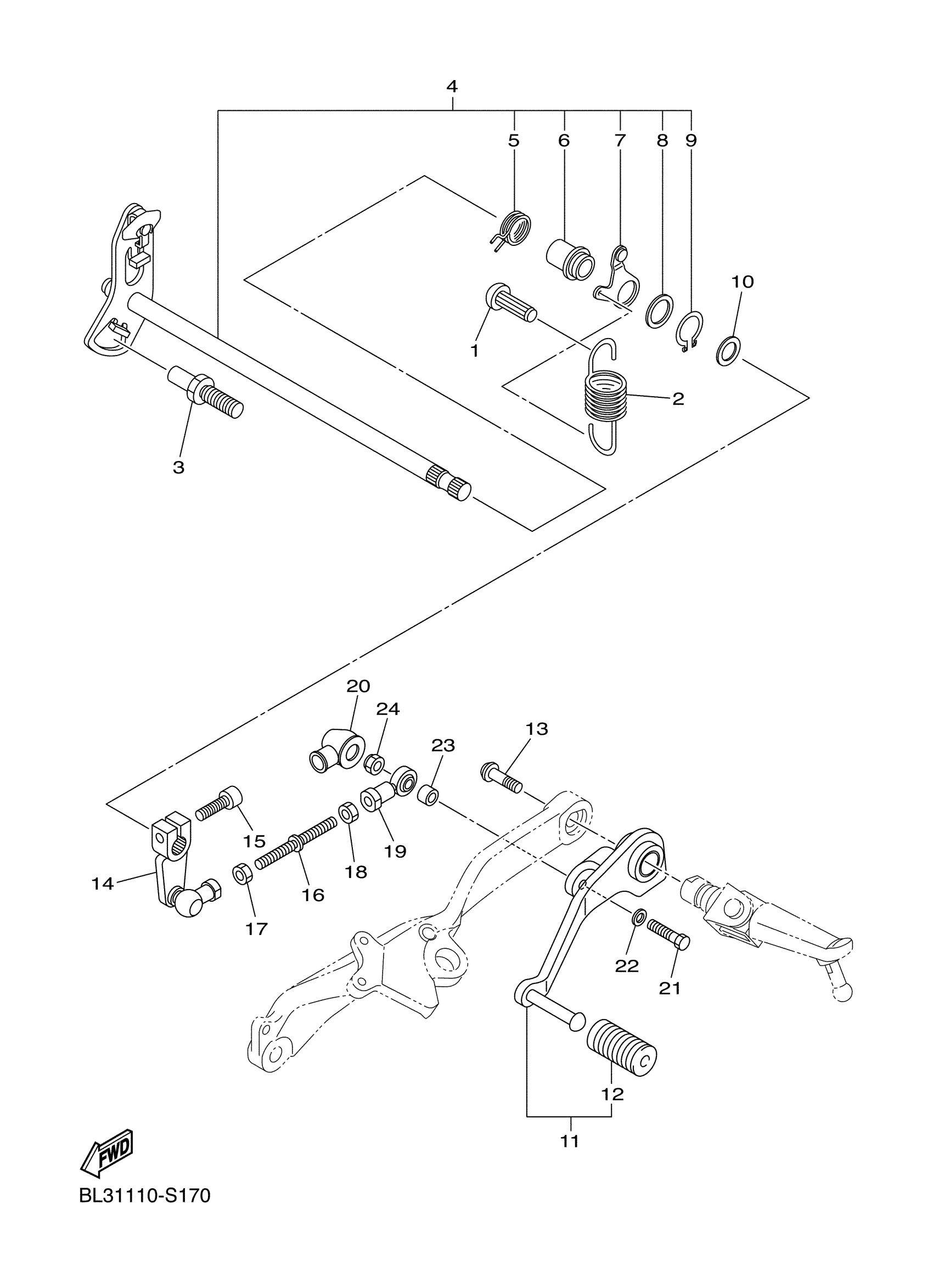

Find the part on the Shift Shaft diagram for your 2017 Yamaha SR950 (SCR95HR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha SR950 (SCR95HR) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOOK, SPRING

132-16346-00-00

1
Out of stock

2

SPRING, TENSION

90506-18015-00

—
Out of stock

3

STOPPER, SCREW

5VK-18127-00-00

—
Out of stock

4

SHIFT SHAFT ASSY

3D8-18101-01-00

1
Out of stock

5

SPRING, TORSION

90508-32040-00

1
Out of stock

6

SPACER

3D8-18175-00-00

—
Out of stock

7

STOPPER LEVER ASSY

3D8-18140-00-00

1
Out of stock

8

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

WASHER, PLATE (5N6)

90201-127E1-00

1
Out of stock

11

SHIFT PEDAL ASSY

BL3-18110-00-00

1
Out of stock

12

COVER, SHIFT PEDAL

5EB-18113-00-00

1
Out of stock

13

BOLT,HEX. SOCKET BUTTON

90111-10040-00

1
Out of stock

14

ARM, SHIFT

B33-18112-00-00

—
Out of stock

15

BOLT,SOCKET HEAD

91314-06020-00

1
Out of stock

16

ROD, SHIFT

26H-18115-00-00

—
Out of stock

17

NUT

90170-06024-00

—
Out of stock

18

NUT, HEXAGON

95314-06600-00

—
Out of stock

19

JOINT, ROD 1

5VX-18116-00-00

—
Out of stock

20

COVER, DUST

5VX-18154-00-00

—
Out of stock

21

BOLT, HEXAGON

97017-06030-00

—
Out of stock

22

WASHER(6TA)

92907-06600-00

—
Out of stock

23

COLLAR(J45)

90387-064T3-00

—
Out of stock

24

NUT, SELF-LOCKING

95617-06100-00

—
Out of stock
