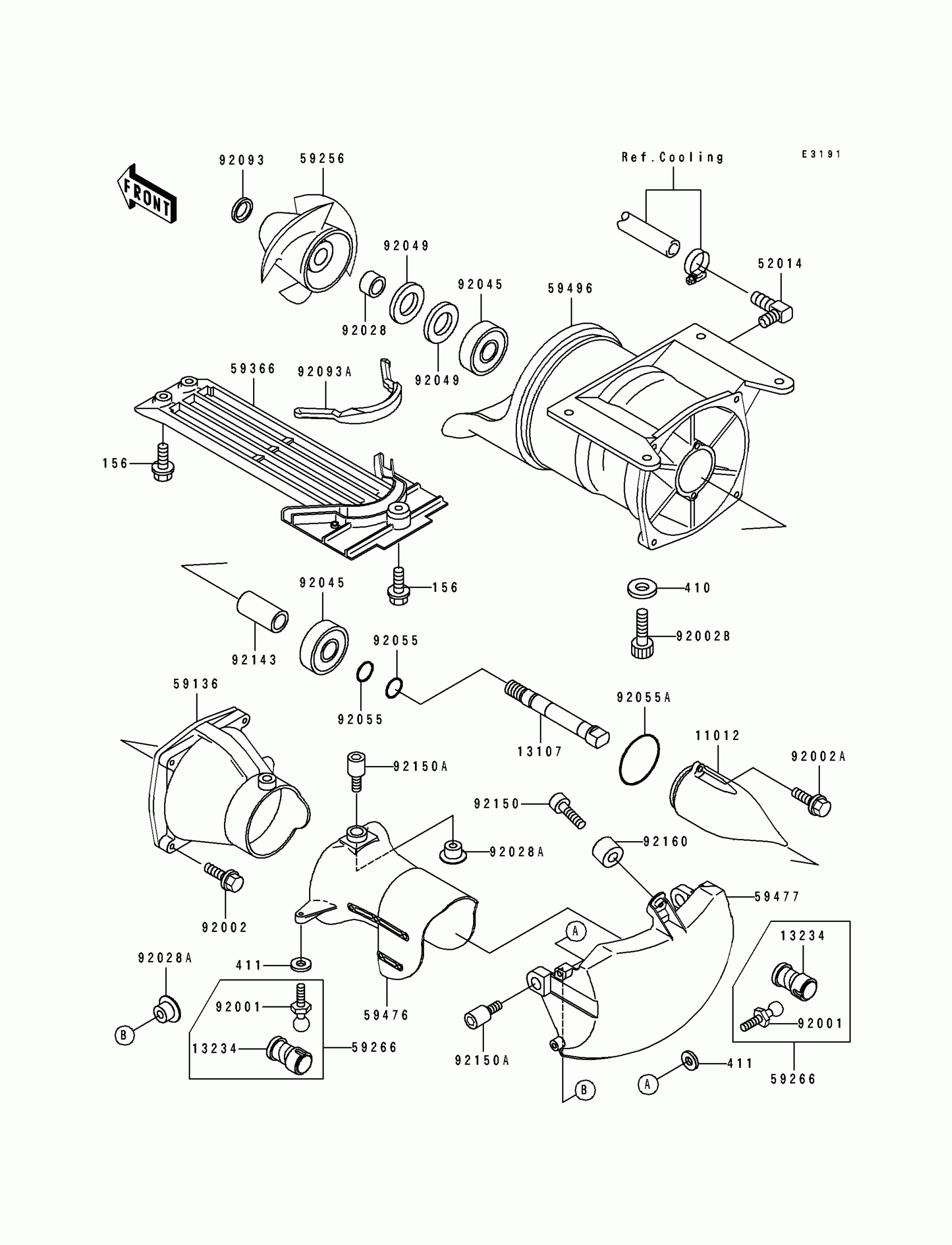

Kawasaki SC Jet Pump Diagram

#

Description
Price

11012

CAP,JET PUMP

11012-3712

$62.69

13107

SHAFT,JET PUMP

13107-3721

$84.95

13234

SHAFT-COMP,JOINT

13234-3708

Unavailable

52014

ELBOW

52014-3708

$37.06

59136

NOZZLE-PUMP

59136-3715

Unavailable

59256

IMPELLER

59256-3705

Unavailable

59266

JOINT-BALL

59266-3707

$59.33

59366

GRATE

59366-3709

Unavailable

59476

NOZZLE-STRG

59476-3716

Unavailable

59477

BUCKET-REVERSE

59477-3703

Unavailable

59496

VANE-GUIDE

59496-3701

Unavailable

92001

BOLT,BALL,6MM

92001-3703

Unavailable

92002

BOLT,6X30

92002-3726

$3.57

92002A

BOLT,6X16

92002-3728

$3.24

92002B

BOLT,SOCKET,8X20

92002-3771

$6.32

92028

BUSHING,17X25X15

92028-3717

$36.09

92028A

BUSHING

92028-3740

$6.21

92045

BEARING-BALL,#63032RD

92045-3706

$35.60

92049

SEAL-OIL,TCV-25476

92049-3711

Unavailable

92055

RING-O,13X1.9

92055-1021

$5.81

92055A

RING-O

92055-3706

$3.55

92093

SEAL

92093-3702

Unavailable

92093A

SEAL

92093-3728

Unavailable

92143

COLLAR,17.4X25.4X53

92143-3708

$23.59

92150

BOLT,SOCKET,6X10

92150-3759

$4.15

92150A

BOLT

92150-3808

Unavailable

92160

DAMPER

92160-3738

$13.64

156

BOLT-WP,6X20

156R0620

$2.76

410

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

411

WASHER-PLAIN,6MM

411S0600

$1.49
