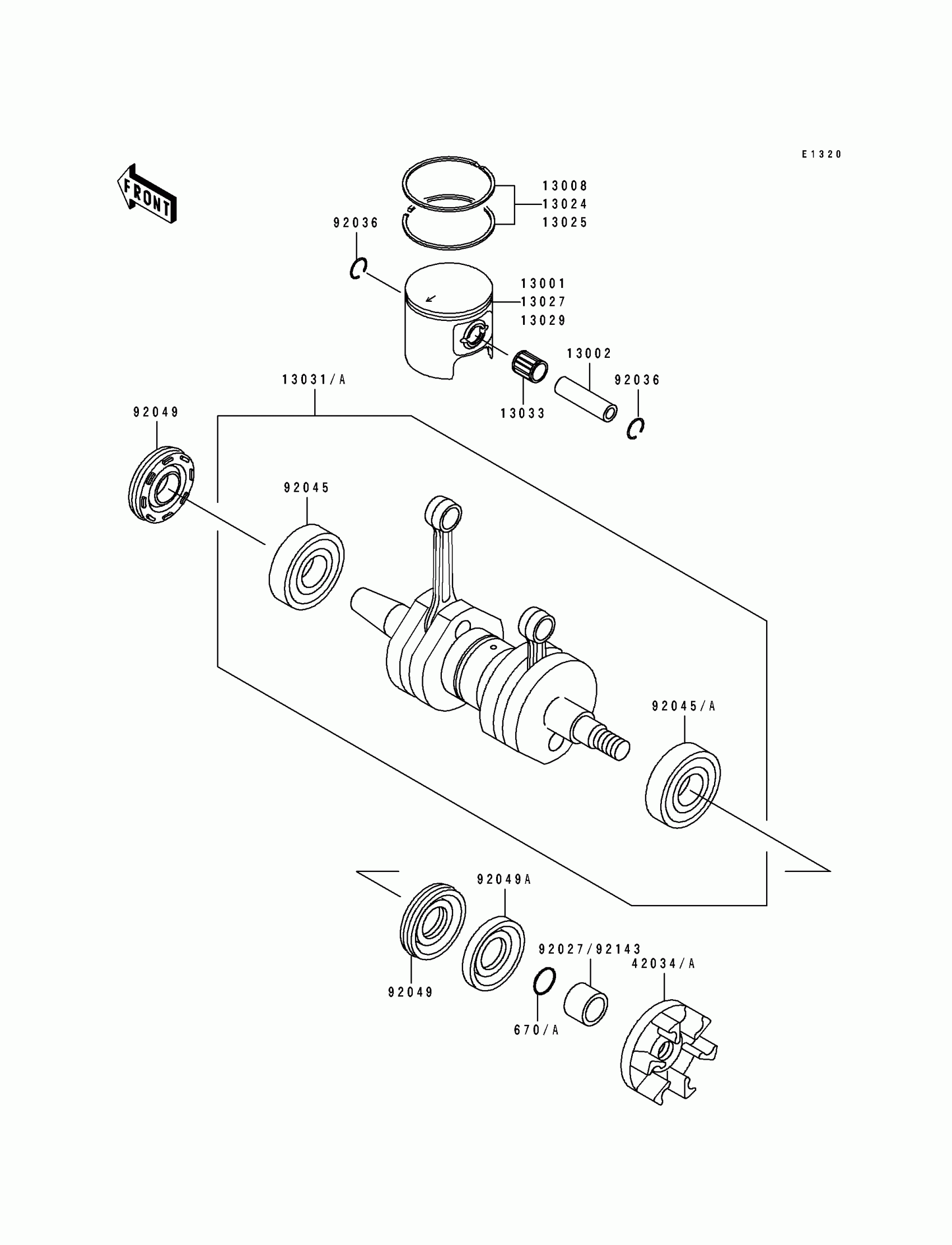

Kawasaki SC Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE

13001-3714

Unavailable

13002

PIN-PISTON

13002-017

$30.56

13008

RING-SET-PISTON,STD

13008-3701

$66.81

13024

RING-SET-PISTON LL,O/S,1.00

13024-3701

Unavailable

13025

RING-SET-PISTON L,O/S,0.50

13025-3701

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3709

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-3709

$144.23

13031A

CRANKSHAFT-COMP

13031-3723

Unavailable

13033

BEARING-SMALL END

13033-1010

$20.40

42034A

COUPLING

42034-3707

$56.93

92036

CIRCLIP-PISTON PIN

92036-015

$3.77

92045

BEARING-BALL,6303C4

92045-3709

Unavailable

92045A

BEARING-BALL

92045-3714

$47.31

92049

SEAL-OIL,FWJ15307210

92049-3705

Unavailable

92049A

SEAL-OIL,S30726

92049-3706

$14.27

92143

COLLAR

92143-3735

$40.29

670A

O RING,16MM

670B2016

$1.04
