Description

Price

11009

GASKET,DIAPHRAGM

11009-3730

$14.53

14090

COVER,DIAPHRAGM

14090-3702

Unavailable

15003

CARBURETOR-ASSY

15003-3705

$528.88

16009A

NEEDLE-JET,MAIN

16009-3713

Unavailable

16009B

NEEDLE-JET,SLOW

16009-3715

Unavailable

16021

SCREW-THROTTLE STOP

16021-3702

Unavailable

16030

VALVE-FLOAT

16030-3701

$44.67

16055

ARM-FLOAT

16055-3701

$48.58

16087

VALVE-CHECK

16087-3703

Unavailable

16158

JET-SLOW,#58

16158-3708

Unavailable

32099

CASE,CARBURETOR

32099-3755

Unavailable

43028

DIAPHRAGM,CARBURETOR

43028-3704

$97.40

43028A

DIAPHRAGM,PUMP

43028-3706

$147.16

49019

FILTER-FUEL,STRAINER

49019-3707

$6.21

59336

CASE-PUMP

59336-3709

Unavailable

92009

SCREW,3X8

92009-3712

$1.49

92009B

SCREW,5X28

92009-3783

Unavailable

92009C

SCREW,4X18

92009-3808

$8.36

92037

CLAMP

92037-1173

$2.58

92043

PIN,FLOAT

92043-1209

$5.37

92043A

PIN,THROTTLE STOP SCREW

92043-3712

Unavailable

92055

RING-O

92055-1246

$3.43

92055A

RING-O,ADJUST SCREW

92055-3713

Unavailable

92055B

RING-O

92055-3734

Unavailable

92063

JET-MAIN,#120

92063-3702

Unavailable

92143

COLLAR,THROTTLE STOP SCREW

92143-3709

Unavailable

92143A

COLLAR

92143-3727

$34.96

92144

SPRING,THROTTLE STOP SCREW

92144-3706

$7.41

92144A

SPRING,FLOAT ARM

92144-3733

Unavailable

92190

TUBE

92190-3733

Unavailable

220

SCREW-PAN-CROS,4X8

220D0408

$0.63

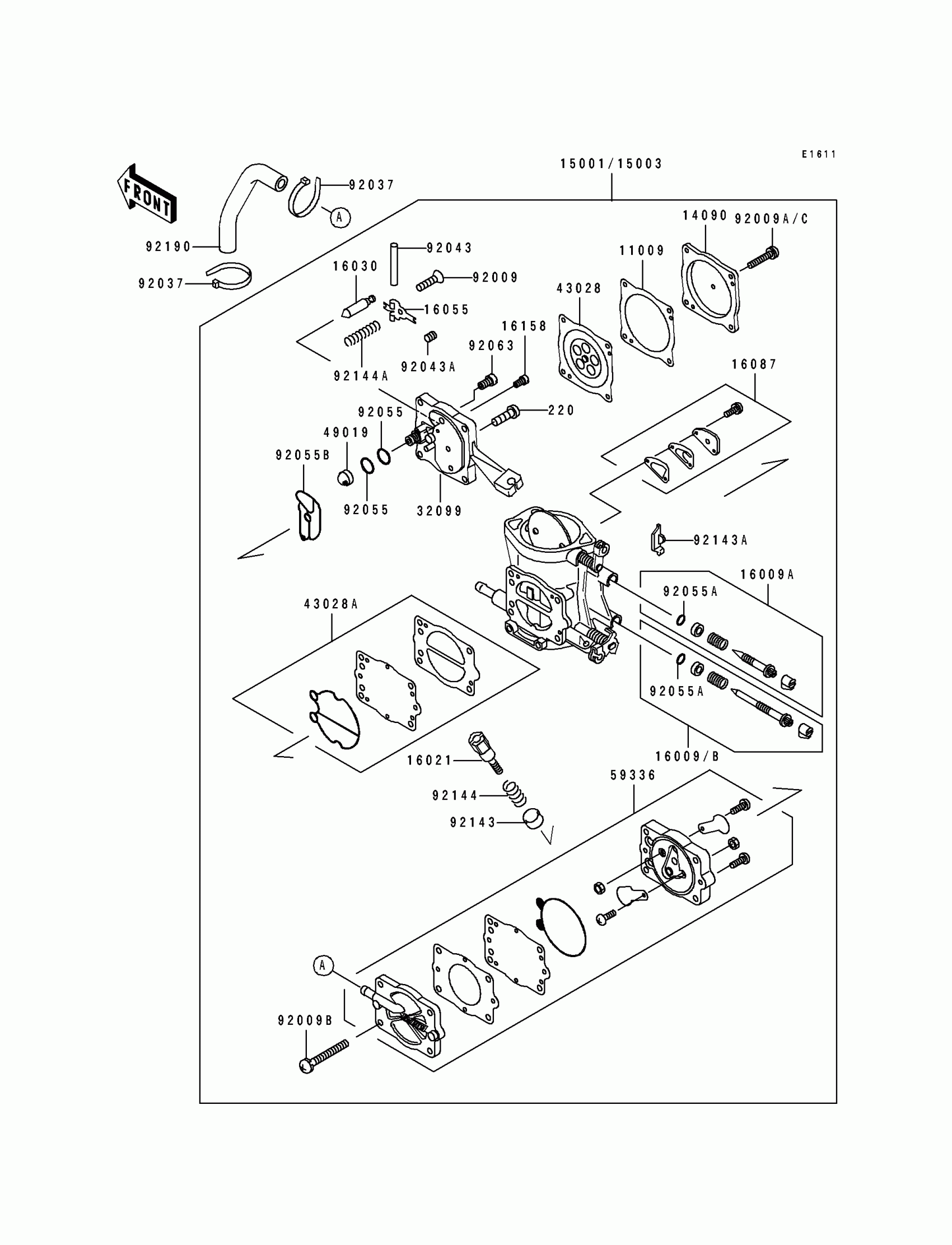

Kawasaki SC Carburetor Diagram

GASKET,DIAPHRAGM

COVER,DIAPHRAGM

CARBURETOR-ASSY

NEEDLE-JET,MAIN

NEEDLE-JET,SLOW

SCREW-THROTTLE STOP

VALVE-FLOAT

ARM-FLOAT

VALVE-CHECK

JET-SLOW,#58

CASE,CARBURETOR

DIAPHRAGM,CARBURETOR

DIAPHRAGM,PUMP

FILTER-FUEL,STRAINER

CASE-PUMP

SCREW,3X8

SCREW,5X28

SCREW,4X18

CLAMP

PIN,FLOAT

PIN,THROTTLE STOP SCREW

RING-O

RING-O,ADJUST SCREW

RING-O

JET-MAIN,#120

COLLAR,THROTTLE STOP SCREW

COLLAR

SPRING,THROTTLE STOP SCREW

SPRING,FLOAT ARM

TUBE

SCREW-PAN-CROS,4X8
