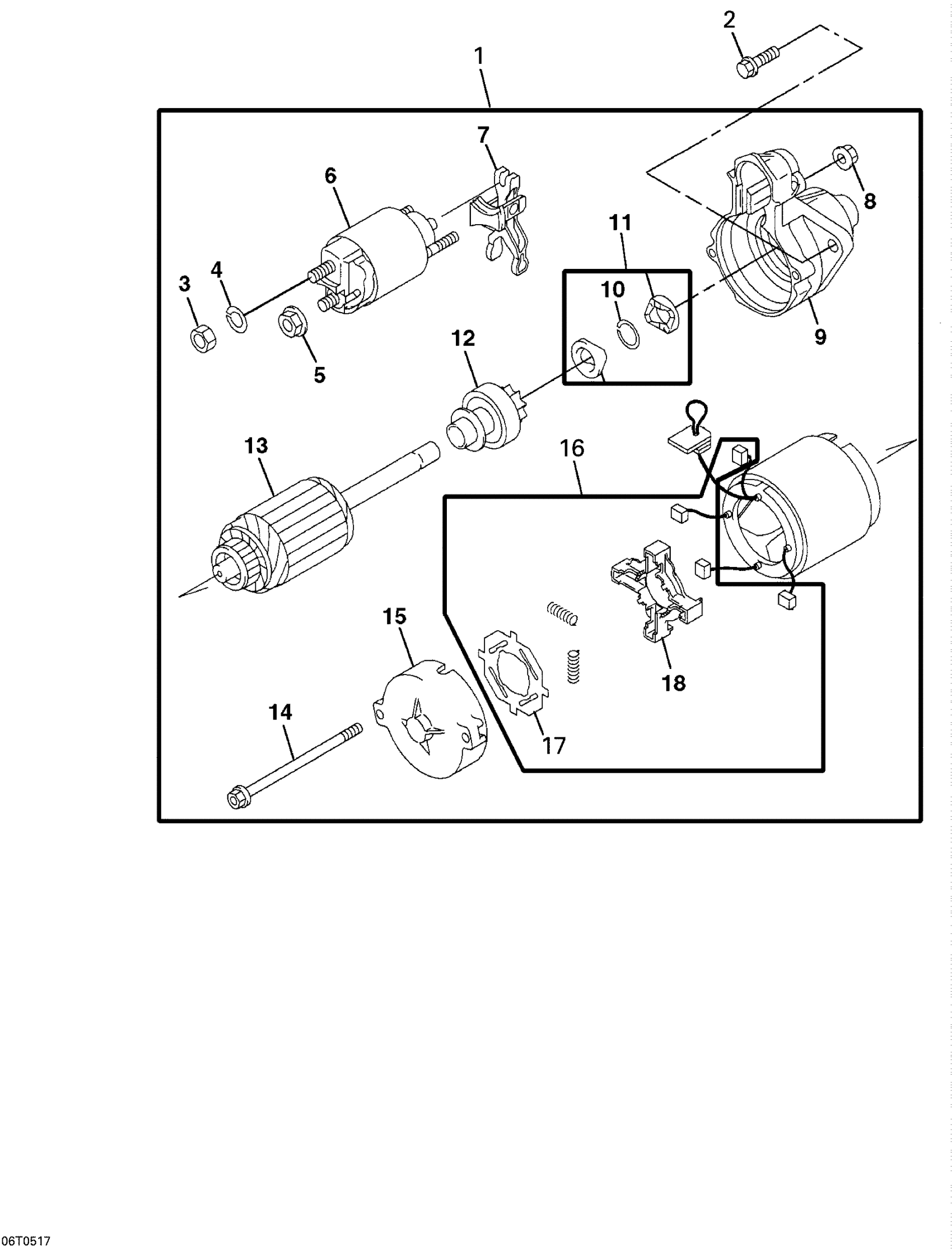

Can-Am Sarasota 1000, 2005 Electric Starter Diagram
#
Description
Price
1
STARTER ASSY - Call your local BRP dealership | Includes Items 1 to 20
DAW26844
Unavailable
2
Hex. Flange Bolt M8 X 25
D19M7867
Unavailable
3
Nut M8
D14M7273
Unavailable
4
Lock Washer
D12H303
Unavailable
5
Nut
DM70145
Unavailable
6
Solenoid
DAM102577
Unavailable
7
Lever Solenoid
DW40487
Unavailable
8
Nut
DM70153
Unavailable
9
Cover Ass'y
DAW26845
Unavailable
10
Snap Ring
DM70304
Unavailable
11
Stopper Kit | Includes Item 10
DAM121905
Unavailable
12
Clutch Starter
DAM105579
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Starter Bolt
DM70310
Unavailable
15
Starter Cover
DAW26846
Unavailable
16
Brush Kit | Includes Items 16 to 18
DAM109059
Unavailable
17
Starter Insulator
DM70309
Unavailable
18
Starter Brush Holder
DAM102575
Unavailable
