Partiron

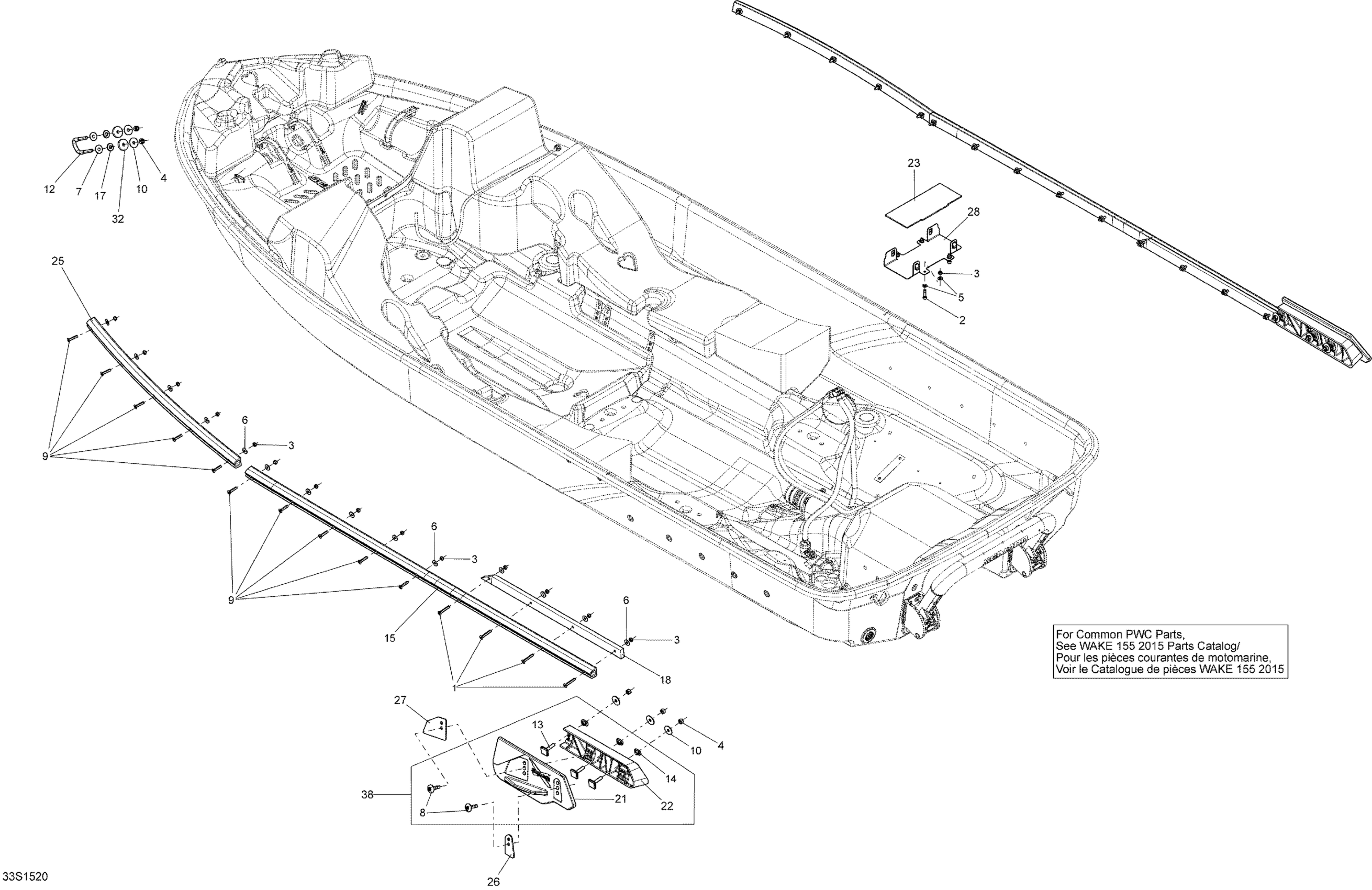

Sea-doo SAR 155, 2015 Hull Diagram

#

Description
Price

1

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

2

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

3

Elastic Stop Nut M6, Brass

232561200

$4.03

4

Hex. Elastic Nut M8 Brass

232581200

$1.48

5

Stainless Flat Washer M6

234061600

$0.28

6

Flat Washer M6, Stainless

234062600

$0.73

7

Flat Washer

279000336

$9.58

8

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$5.55

9

TORX SCEW M6 X 30 - Call your local BRP dealership

250000744

Unavailable

10

Flat Washer 8 mm, Stainless

250200175

$1.48

12

U-Clamp

292000933

$37.28

13

Square Head Stud

292001471

$15.99

14

Push Nut

292001503

$0.93

15

RAIL BENDED - Call your local BRP dealership This part replaces 292001775.

292001889

Unavailable

17

Flat Washer 8 mm, Nylon

292001663

$1.36

18

RAIL SPACER - Call your local BRP dealership

292001668

Unavailable

21

RH Sponson This part replaces 292001426.

292001871

$74.60

21

Sponson LH This part replaces 292001427.

292001872

$74.60

22

RH Spacer Sponson This part replaces 292001428.

292001873

$41.99

22

Spacer Sponson LH This part replaces 292001429.

292001874

$49.22

23

Protector

292001743

$24.60

25

RAIL BENDED - Call your local BRP dealership This part replaces 292001775.

292001889

Unavailable

25

RAIL BENDED - Call your local BRP dealership This part replaces 292001775.

292001889

Unavailable

26

SPONSON PLATE - Call your local BRP dealership

292001804

Unavailable

27

SPONSON PLATE - Call your local BRP dealership

292001805

Unavailable

28

Heat Exchanger Support

292001836

$76.84

32

Rubber Washer

293830037

$2.68

38

RH SPONSON - Call your local BRP dealership

292001738

Unavailable

38

LH SPONSON - Call your local BRP dealership

292001739

Unavailable
