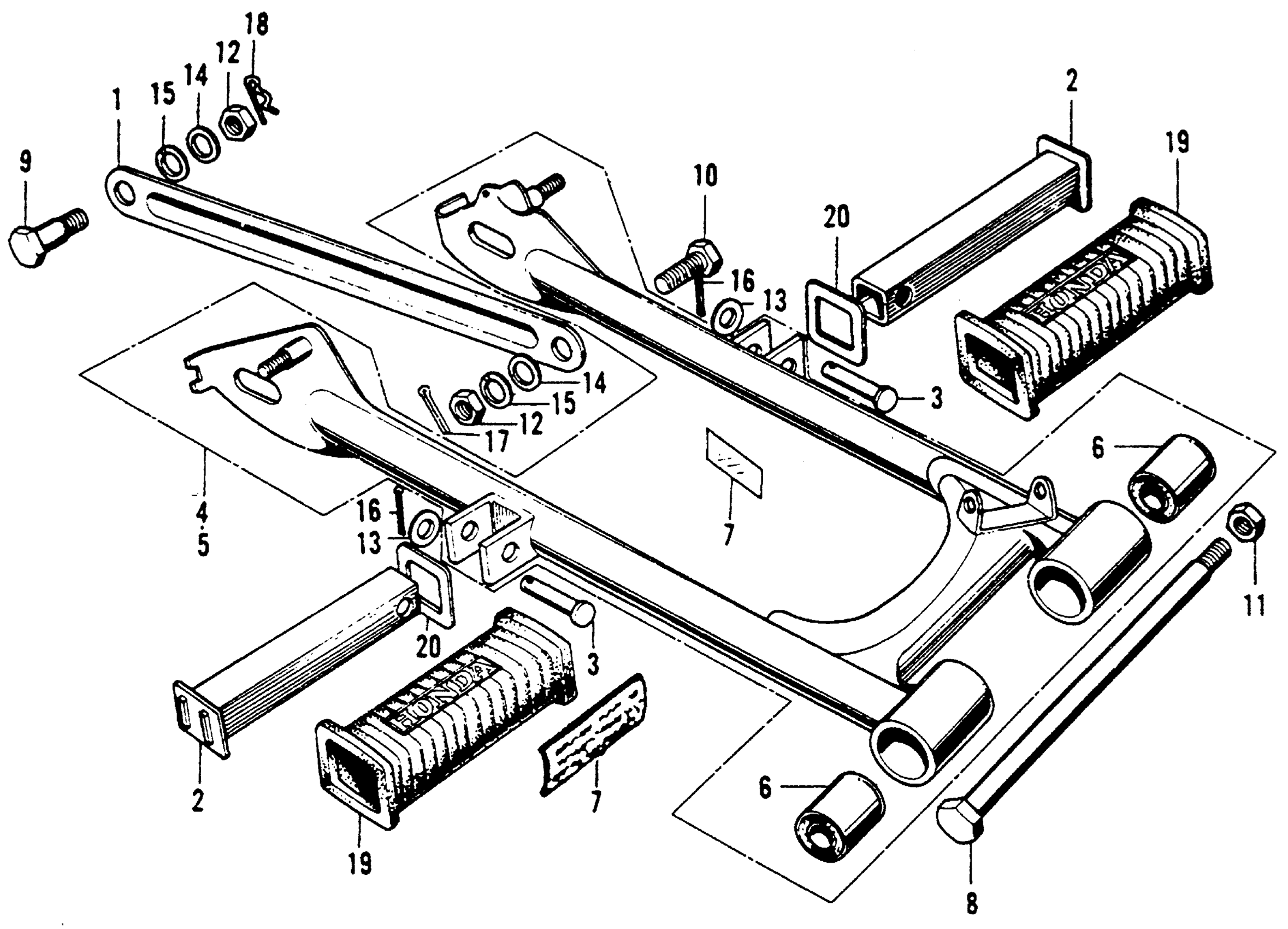

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 SWINGARM Diagram

#

Description
Price

1

ARM, RR. BRAKE STOPPER (NOT AVAILABLE) | Use from Frame SN 499221

43432-028-010

Unavailable

1

ARM, RR. BRAKE STOPPER (NOT AVAILABLE) | Use from Frame SN 424487 to 499220

43432-028-000

Unavailable

2

BAR B, PILLION STEP | Use from Frame SN 424487 This part replaces 50701-024-010.

95015-62000

$31.58

2

BAR B, PILLION STEP | Use from Frame SN 424487 This part replaces 50715-283-000.

95015-62000

$31.58

2

BAR B, PILLION STEP | Use from Frame SN 424487

95015-62000

$31.58

3

PIN A, PILLION STEP | Use from Frame SN 424487 This part replaces 50715-024-000.

95015-81000

$2.14

3

PIN A, PILLION STEP | Use from Frame SN 424487

95015-81000

$2.14

4

SWINGARM | Use from Frame SN 424487 to 499220 This part replaces 52100-028-602Z.

52100-028-603Z

Unavailable

4

SWINGARM | Use from Frame SN 424487 to 499220

52100-028-603Z

Unavailable

4

SWINGARM | Use from Frame SN 499220

52100-028-603Z

Unavailable

6

BUSH, SWINGARM PIVOT | Use from Frame SN 424487 This part replaces 52108-028-000.

52147-028-300

$17.18

6

BUSH, SWINGARM PIVOT | Use from Frame SN 424487

52147-028-300

$17.18

6

BUSH, RUBBER SWINGARM PIVOT (N/A: SEE ASSEMBLY) | Use from Frame SN 111954 to 132779

52119-250-000

Unavailable

6

BUSH, SWINGARM PIVOT RUBBER | Use from Frame SN 111565 to 111944

52181-001-300

$10.87

7

LABEL, MUFFLER CAUTION | Use from Frame SN 594484

87504-028-670

$3.03

8

BOLT, SWINGARM PIVOT | Use from Frame SN 424487 to 934639

90121-KF9-900

Unavailable

8

BOLT, SWINGARM PIVOT | Use from Frame SN 424487 to 800147 This part replaces 90121-028-020.

90121-KF9-900

Unavailable

8

BOLT, SWINGARM PIVOT | Use from Frame SN 424487 to 934639 This part replaces 90121-028-030.

90121-KF9-900

Unavailable

8

BOLT, SWINGARM PIVOT | Use from Frame SN 424487 to 934639 This part replaces 90121-437-000.

90121-KF9-900

Unavailable

8

BOLT, SWINGARM PIVOT (NOT AVAILABLE) | Use from Frame SN 111945 to 132779

90121-028-010

Unavailable

8

BOLT, SWINGARM PIVOT (NOT AVAILABLE) | Use from Frame SN 111565 to 111944 This part replaces 90121-035-010.

90121-111-970

Unavailable

8

BOLT, SWINGARM PIVOT (NOT AVAILABLE) | Use from Frame SN 111565 to 111944

90121-111-970

Unavailable

9

BOLT, RR. BRAKE STOPPER | Use from Frame SN 424487 This part replaces 90127-001-010.

90127-400-000

$8.97

9

BOLT, RR. BRAKE STOPPER | Use from Frame SN 424487

90127-400-000

$8.97

10

BOLT, RR. BRAKE STOPPER ARM | Use from Frame SN 499221

90133-028-010

Unavailable

10

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE) | Use from Frame SN 424487 to 499220

90133-028-000

Unavailable

11

NUT, SWINGARM PIVOT | Use from Frame SN 424487 to 800147

90308-028-000

Unavailable

11

NUT, SELF-LOCK (12MM) | Use from Frame SN 934640

90353-045-000

$6.26

11

NUT, HEX. (12MM) | Use from Frame SN 800148 to 934639

94030-12000

$1.17

11

NUT, AXLE (NOT AVAILABLE) | Use from Frame SN 111565 to 111944

90305-001-000

Unavailable

12

NUT, HEX. (8MM)

94001-08000-0S

$1.37

12

NUT, HEX. (8MM)

94030-08000

$1.09

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

13

WASHER, PLAIN (6MM)

94101-06800

Unavailable

14

WASHER, PLAIN (8MM)

94101-08000

Unavailable

15

WASHER, SPRING (8MM)

94111-10000

$1.29

16

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.06

16

PIN, COTTER (1.6X25)

94201-16250

$1.06

17

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.06

17

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.06

17

PIN, COTTER (2.0X22)

94201-20220

$1.06

17

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.06

17

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.06

17

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.06

17

PIN, COTTER (2.0X35)

94201-20350

$1.06

17

PIN, COTTER (2.0X22)

94201-29220

$1.06

18

PIN, LOCK (8MM)

94251-08000

$1.25

19

RUBBER, PILLION STEP | Use from Frame SN 424487

95011-31000

$7.35

20

WASHER, FOOTPEG | Use from Frame SN 424487

95015-91000

$1.26
