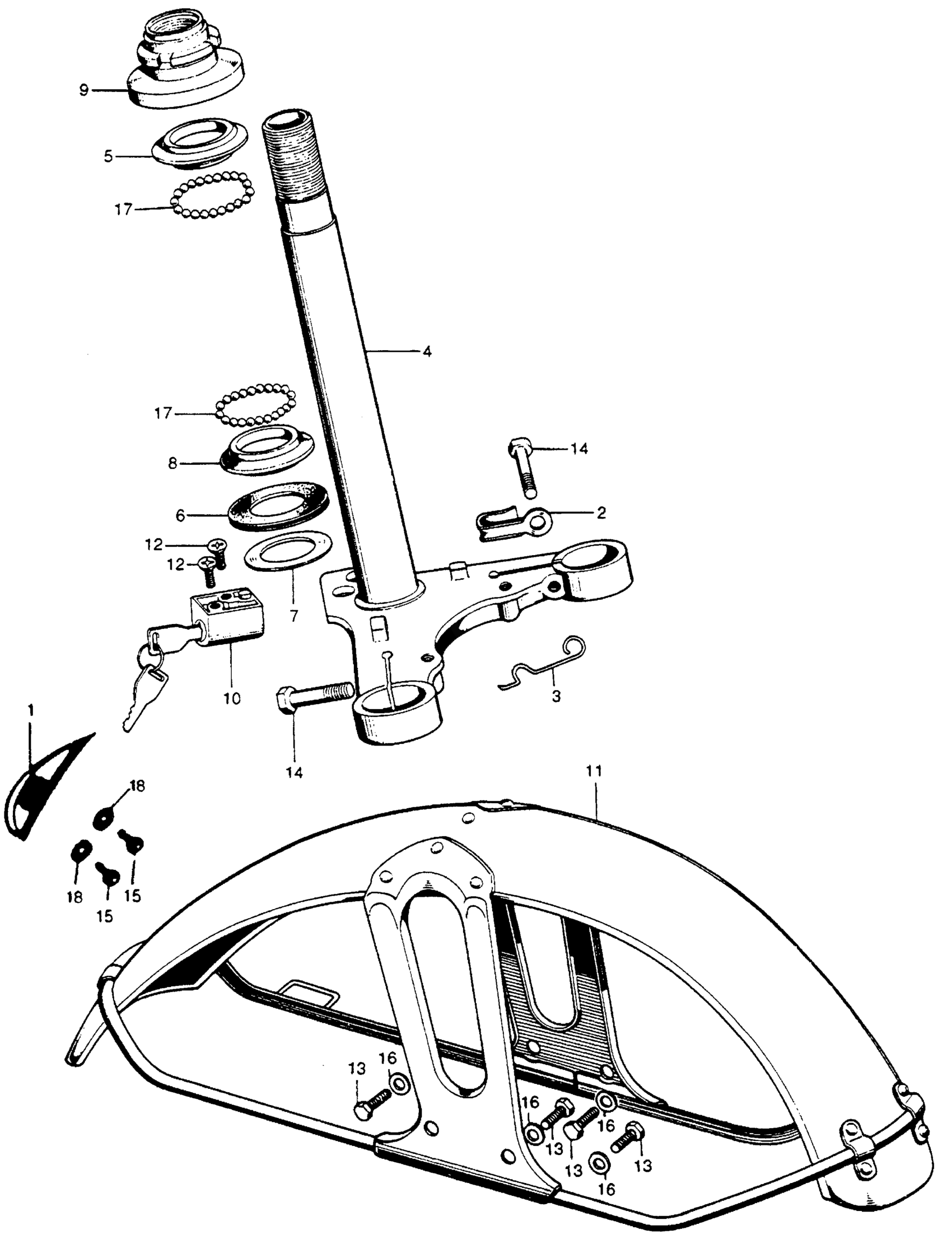

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

REFLECTOR ASSY., FR. REFLEX (NOT AVAILABLE) | Use from Frame SN 794064 to 827878

33741-077-671

Unavailable

2

CLIP, FR. BRAKE CABLE | Use from Frame SN 424487

45465-028-000

Unavailable

4

STEM, STEERING *NH1* (BLACK) | Use from Frame SN 424487 This part replaces 53200-028-000B.

53200-028-000ZG

Unavailable

4

STEM, STEERING (NOT AVAILABLE) | Use from Frame SN 424487

53200-028-000Z

Unavailable

4

STEM, STEERING *NH1* (BLACK) | Use from Frame SN 424487

53200-028-000ZG

Unavailable

5

RACE, STEERING TOP CONE | Use from Frame SN 424487 This part replaces 53211-028-000.

53211-028-010

$10.96

5

RACE, STEERING CONE (UPPER) | Use from Frame SN 424487

53211-028-010

$10.96

5

RACE, STEERING TOP CONE | Use from Frame SN 424487 This part replaces 53211-028-305.

53211-028-010

$10.96

6

DUST SEAL, STEERING HEAD | Use from Frame SN 424487 This part replaces 53214-001-010.

53214-GJG-C20

$2.51

7

WASHER, STEERING HEAD DUST SEAL | Use from Frame SN 424487

53215-001-000

$2.85

8

RACE, STEERING CONE (LOWER) | Use from Frame SN 424487 This part replaces 53212-030-000.

53212-030-010

$10.60

8

RACE, STEERING CONE (LOWER) | Use from Frame SN 424487

53212-030-010

$10.60

8

RACE, STEERING CONE (LOWER) | Use from Frame SN 424487 This part replaces 53212-937-000.

53212-030-010

$10.60

8

RACE, STEERING CONE (LOWER) | Use from Frame SN 424487 This part replaces 53217-030-305.

53212-030-010

$10.60

9

THREAD, STEERING HEAD TOP | Use from Frame SN 424487

53220-028-000

Unavailable

10

SWITCH, HANDLE LOCK (NOT AVAILABLE) | Use from Frame SN 424487

35010-001-010

Unavailable

10

SWITCH, HANDLE LOCK (NOT AVAILABLE) | Use from Frame SN 424487 This part replaces 53600-001-020.

35010-001-010

Unavailable

11

FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 827879

61100-028-670XW

Unavailable

11

FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 932941

61100-107-671XW

Unavailable

12

SCREW, U-LOCK FLAT (6X12) | Use from Frame SN 424487

90164-028-000

$1.74

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

BOLT, HEX. (8X32) This part replaces 92000-08032.

92101-08032-0B

$2.92

14

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.92

14

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.92

14

BOLT, HEX. (8X32)

92101-08032-0B

$2.92

15

SCREW, TAPPING (4X10) | Use from Frame SN 794064 to 827892

93901-34210

$0.86

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM)

94101-06800

Unavailable

17

BALL, STEEL (#6) (3/16)

96211-06000

$0.55

18

WASHER, PLAIN (4MM) | Use from Frame SN 794064 to 537892

94101-04000

$0.95
