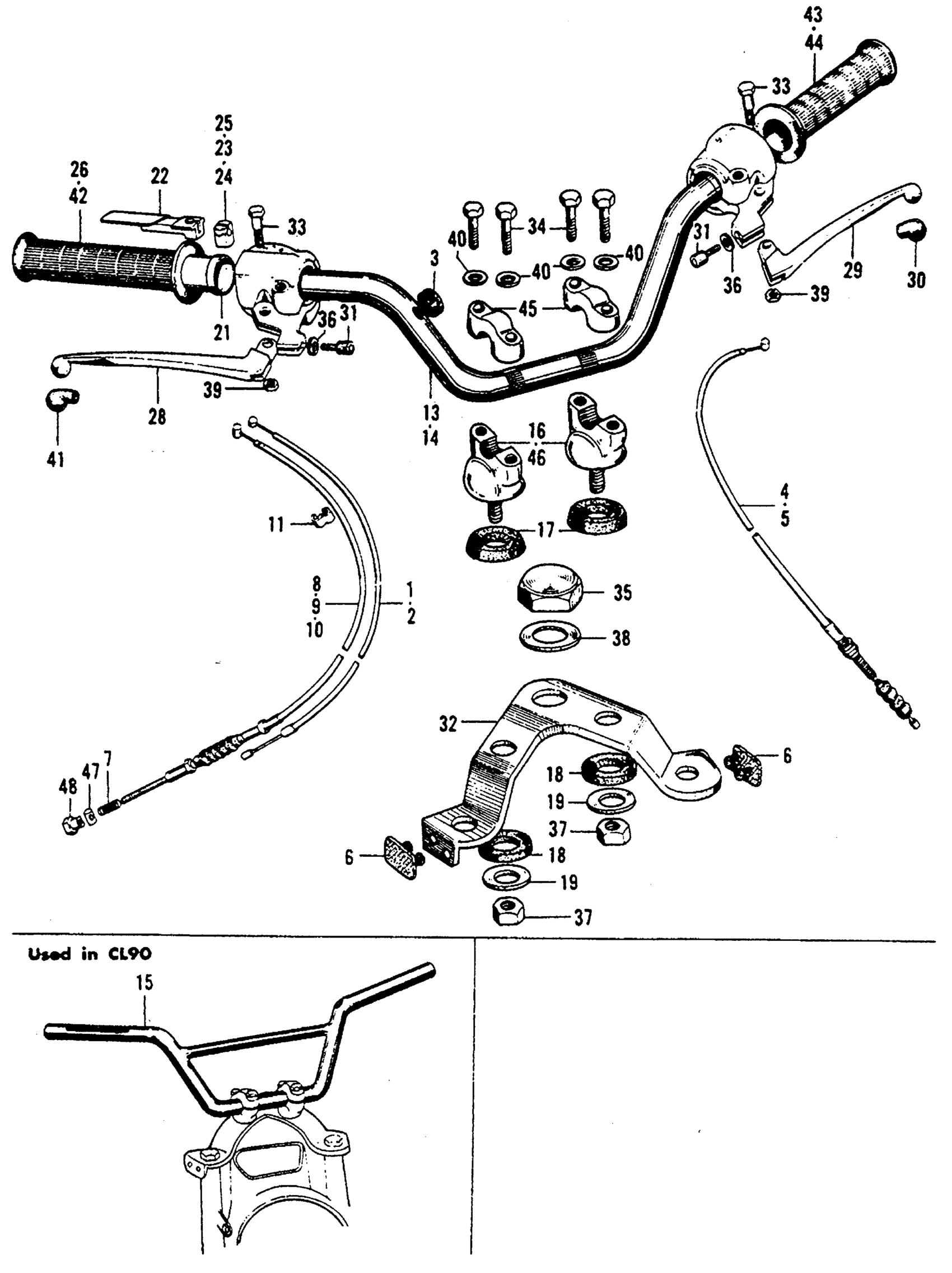

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 HANDLEBAR + FORK TOP BRIDGE Diagram

#

Description
Price

1

CABLE, THROTTLE | Use from Frame SN 424487 This part replaces 17910-028-600.

17910-028-830

Unavailable

1

CABLE, THROTTLE | Use from Frame SN 424487

17910-028-830

Unavailable

3

GROMMET, THROTTLE CABLE | Use from Frame SN 424487

17911-023-000

$4.30

4

CABLE, CLUTCH (NOT AVAILABLE) | Use from Frame SN 707960 This part replaces 22870-028-671.

22870-074-690

Unavailable

4

CABLE, CLUTCH (NOT AVAILABLE) | Use from Frame SN 707960

22870-074-690

Unavailable

6

PLUG, FR. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN 424487 to 594483

32985-028-600

Unavailable

7

SPRING, FR. BRAKE ARM | Use from Frame SN 424487

45437-001-000

$3.39

8

CABLE FR BRAKE | Use from Frame SN 424487 to 707959 This part replaces 45450-028-000.

45450-107-P00

Unavailable

8

CABLE FR BRAKE | Use from Frame SN 424487 to 707959 This part replaces 45450-105-000.

45450-107-P00

Unavailable

9

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 794064

45450-028-670

Unavailable

13

HANDLEBAR (NOT AVAILABLE)

53100-051-020

Unavailable

14

HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 733909

53100-107-000

Unavailable

16

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE) | Use from Frame SN 424487 to 588928

53132-028-000

$24.75

16

HOLDER, HANDLE (LOWER) | Use from Frame SN 588929 This part replaces 53132-028-010.

53132-124-000

Unavailable

16

HOLDER, HANDLE (LOWER) | Use from Frame SN 588929

53132-124-000

Unavailable

17

RUBBER, HANDLE CUSHION (UPPER) (NOT AVAILABLE) | Use from Frame SN 424487

53133-028-000

Unavailable

18

RUBBER, HANDLE CUSHION (LOWER) | Use from Frame SN 424487

53134-028-000

Unavailable

19

SEAT, HANDLE RUBBER (NOT AVAILABLE) | Use from Frame SN 424487

53135-028-000

Unavailable

21

PIPE, THROTTLE GRIP | Use from Frame SN 933541

53141-115-000

Unavailable

21

PIPE, THROTTLE GRIP (NOT AVAILABLE) | Use from Frame SN 424487 to 890842

53141-271-000

Unavailable

22

HINGE, THROTTLE WIRE | Use from Frame SN 424487

53161-250-000

Unavailable

23

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE) | Use from Frame SN 546493 This part replaces 53162-035-000.

53162-042-000

Unavailable

23

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE) | Use from Frame SN 546493

53162-042-000

Unavailable

25

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE) | Use from Frame SN 424487 to 546492

53162-271-000

Unavailable

28

LEVER, R. HANDLE | Use from Frame SN 717731 This part replaces 53175-028-670.

53175-230-010

Unavailable

28

LEVER, R. HANDLE | Use from Frame SN 640505 to 717733 This part replaces 53175-028-671.

53175-230-010

Unavailable

28

LEVER, R. HANDLE | Use from Frame SN 717731 This part replaces 53175-028-671.

53175-230-010

Unavailable

28

LEVER, R. HANDLE | Use from Frame SN 717731 This part replaces 53175-028-672.

53175-230-010

Unavailable

28

LEVER, R. HANDLE | Use from Frame SN 717731

53175-230-010

Unavailable

28

LEVER, R. HANDLE | Use from Frame SN 640505 to 717733

53175-230-010

Unavailable

29

LEVER, L. HANDLEBAR | Use from Frame SN 640505 to 707959 This part replaces 53178-028-010.

53190-242-670

Unavailable

29

LEVER, L. HANDLEBAR | Use from Frame SN 594484 to 640504

53178-028-672

Unavailable

29

LEVER, L. HANDLEBAR | Use from Frame SN 707960

53178-028-672

Unavailable

29

LEVER, L. HANDLEBAR | Use from Frame SN 640505 to 707959

53190-242-670

Unavailable

29

LEVER, L. HANDLEBAR | Use from Frame SN 890843

53178-028-030

Unavailable

29

LEVER, L. HANDLEBAR | Use from Frame SN 594484 to 640504 This part replaces 53178-028-670.

53178-028-672

Unavailable

29

LEVER, L. HANDLEBAR | Use from Frame SN 594484 to 640504 This part replaces 53178-028-671.

53178-028-672

Unavailable

29

LEVER, L. HANDLEBAR | Use from Frame SN 707960 to 717733 This part replaces 53178-028-671.

53178-028-672

Unavailable

30

CAP, HANDLE LEVER (NOT AVAILABLE) | Use from Frame SN 594484 to 640506

53180-028-670

Unavailable

31

BOLT, RR. BRAKE CABLE ADJUSTING (NOT AVAILABLE) | Use from Frame SN 424487

53192-030-000

Unavailable

32

PLATE, FORK TOP BRIDGE *NH35* (CLOUD SILVER) | Use from Frame SN 424487

53231-028-010AU

Unavailable

33

SCREW, HANDLEBAR LEVER PIVOT | Use from Frame SN 424487

90114-028-000

$7.26

34

BOLT, HEX. (6X28) | Use from Frame SN 424487

90117-065-000

$2.54

35

NUT, STEERING STEM | Use from Frame SN 424487 This part replaces 90304-011-000.

90304-159-000

$6.99

35

NUT, STEERING STEM | Use from Frame SN 424487

90304-159-000

$6.99

35

NUT, STEERING STEM | Use from Frame SN 424487 This part replaces 95020-11100.

90304-159-000

$6.99

36

NUT, FIXING | Use from Frame SN 424487

90321-315-670

$7.27

36

NUT, FIXING | Use from Frame SN 424487 This part replaces 90321-968-000.

90321-315-670

$7.27

37

NUT, HEX. (10MM) | Use from Frame SN 931481

90354-115-000

$3.86

37

NUT, HEX. (10MM)

94001-10000-0S

$1.51

37

NUT, HEX. (10MM)

94030-10000

$1.48

38

WASHER, STEERING STEM | Use from Frame SN 424487 This part replaces 90503-011-000.

90503-051-870

$2.74

38

WASHER, STEERING STEM | Use from Frame SN 424487

90503-051-870

$2.74

39

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.37

39

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.37

39

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.37

39

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.37

39

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.37

39

NUT, HEX. (6MM)

94001-06200-0S

$1.37

39

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.37

40

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

40

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

40

WASHER, PLAIN (6MM)

94101-06800

Unavailable

41

CAP A, LEVER | Use from Frame SN 640505 to 717733 This part replaces 95010-16000.

95010-16001

$8.57

41

CAP A, LEVER | Use from Frame SN 640505 to 717733

95010-16001

$8.57

42

GRIP C, R. HANDLE | Use from Frame SN 424487

95011-13100

$10.02

43

GRIP C, L. HANDLE | Use from Frame SN 424487

95011-13200

$10.02

45

HOLDER A1, HANDLEBAR (UPPER) | Use from Frame SN 424487 This part replaces 95014-21100.

95014-21101

$6.28

45

HOLDER A1, HANDLEBAR (UPPER) | Use from Frame SN 424487

95014-21101

$6.28

47

JOINT A, BRAKE ARM | Use from Frame SN 424487 This part replaces 95015-31000.

95015-31001

$1.94

47

JOINT A, BRAKE ARM | Use from Frame SN 424487

95015-31001

$1.94

48

NUT A, BRAKE ROD ADJUSTING | Use from Frame SN 424487

95015-41000

$1.62
