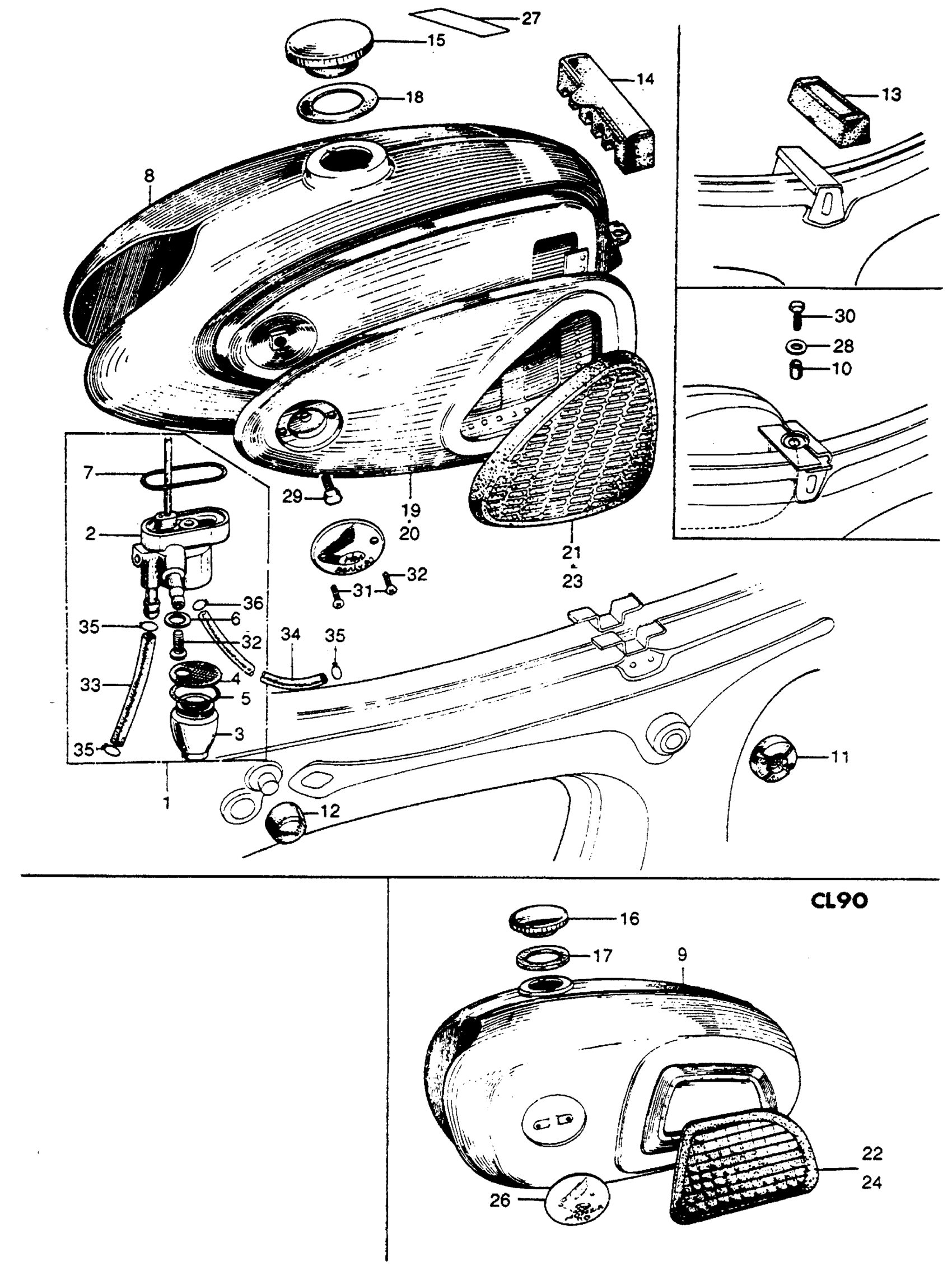

Honda S90A MOTORCYCLE, JPN, VIN# S90-111565 TO S90-142498 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. | Use from Frame SN 646844A This part replaces 16950-028-010.

16950-070-700

$40.18

1

PETCOCK ASSY. | Use from Frame SN 646844A This part replaces 16950-028-015.

16950-070-700

$40.18

1

PETCOCK ASSY. | Use from Frame SN 646844A

16950-070-700

$40.18

1

PETCOCK ASSY. | Use from Frame SN 424487 to 646843A This part replaces 16950-028-000.

16950-028-005

Unavailable

2

BODY SET, PETCOCK (NOT AVAILABLE) | Use from Frame SN 646844A

16951-028-010

Unavailable

2

BODY SET, PETCOCK (NOT AVAILABLE) | Use from Frame SN 424487 to 646843A

16951-028-000

Unavailable

3

CUP, FUEL STRAINER | Use from Frame SN 424487

16952-028-000

Unavailable

4

SCREEN, FUEL STRAINER | Use from Frame SN 424487

16957-028-000

Unavailable

5

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED) | Use from Frame SN 424487

16080-898-631

$22.69

5

O-RING (2.4X18.6) | Use from Frame SN 424487 This part replaces 16955-283-000.

16075-GHB-B00

$4.65

5

O-RING (2.4X18.6) | Use from Frame SN 424487 This part replaces 16958-011-000.

16075-GHB-B00

$4.65

5

O-RING (2.4X18.6) | Use from Frame SN 424487 This part replaces 16958-028-000.

16075-GHB-B00

$4.65

6

GASKET, PETCOCK BODY | Use from Frame SN 424487

16993-011-000

Unavailable

7

O-RING (23.8X2.4) | Use from Frame SN 424487

16997-273-000

$4.72

8

TANK, FUEL (NOT AVAILABLE) | Use from Frame SN 646844A

17500-028-811Z

Unavailable

10

COLLAR, FUEL TANK SETTING (NOT AVAILABLE) | Use from Frame SN 446881 to 646843A

17601-028-000

Unavailable

11

SPACER, FUEL TANK | Use from Frame SN 424487

17602-028-000

Unavailable

12

RUBBER, FR. FUEL TANK | Use from Frame SN 636554

17611-028-000

$4.17

12

RUBBER, FR. FUEL TANK | Use from Frame SN 424487 to 636554 This part replaces 17611-011-000.

17611-051-000

$4.85

12

RUBBER, FR. FUEL TANK | Use from Frame SN 424487 to 636554

17611-051-000

$4.85

13

RUBBER, RR. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 424487 to 446880

17612-028-010

Unavailable

14

RUBBER, RR. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 446881

17613-056-010

Unavailable

16

CAP, FUEL FILLER | Use from Frame SN 424487 This part replaces 17620-259-000.

17620-402-020

Unavailable

16

CAP, FUEL FILLER | Use from Frame SN 424487 This part replaces 17620-292-020.

17620-402-020

Unavailable

16

CAP, FUEL FILLER | Use from Frame SN 424487 This part replaces 17620-317-000.

17620-402-020

Unavailable

16

CAP, FUEL FILLER | Use from Frame SN 424487 This part replaces 17620-329-000.

17620-402-020

Unavailable

16

CAP, FUEL FILLER | Use from Frame SN 424487 This part replaces 17620-329-010.

17620-402-020

Unavailable

16

CAP, FUEL FILLER | Use from Frame SN 424487 This part replaces 17620-402-000.

17620-402-020

Unavailable

16

CAP, FUEL FILLER | Use from Frame SN 424487 This part replaces 17620-402-010.

17620-402-020

Unavailable

18

GASKET (39X58X3) | Use from Frame SN 424487 This part replaces 17631-259-000.

17631-ZE1-000

$2.75

18

GASKET (39X58X3) | Use from Frame SN 424487 This part replaces 17631-329-000.

17631-ZE1-000

$2.75

18

GASKET (39X58X3) | Use from Frame SN 424487 This part replaces 17631-329-003.

17631-ZE1-000

$2.75

19

COVER, R. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 424487 to 780102 This part replaces 17640-028-000.

17640-028-020

Unavailable

19

COVER, R. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 424487 to 780102

17640-028-020

Unavailable

20

COVER, L. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 424487 to 780102 This part replaces 17650-028-000.

17650-028-020

Unavailable

20

COVER, L. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 424487 to 780102

17650-028-020

Unavailable

21

RUBBER, R. KNEE GRIP (NOT AVAILABLE) | Use from Frame SN 424487

17661-028-000

Unavailable

23

RUBBER, L. KNEE GRIP (NOT AVAILABLE) | Use from Frame SN 424487

17662-028-000

Unavailable

26

EMBLEM, L. FUEL TANK | Use from Frame SN 424487 to 780102

87020-070-010

$33.85

26

EMBLEM, R. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 780103

87121-070-010

Unavailable

26

EMBLEM, L. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 780103

87122-070-010

Unavailable

27

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE) | Use from Frame SN 932941

87560-323-670A

$3.33

28

WASHER, PLAIN (6MM) | Use from Frame SN 446881 to 646843A This part replaces 90514-700-000.

94103-06800

$0.75

28

WASHER, PLAIN (6MM) | Use from Frame SN 446881 to 646843A

94103-06800

$0.75

29

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.48

29

BOLT, HEX. (6X10)

92101-06010-0A

$1.48

30

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.00

30

BOLT, HEX. (6X20)

92101-06020-0A

$1.00

31

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.18

31

SCREW, PAN (6X18)

93500-06018-0A

$1.18

32

SCREW, OVAL (3X8)

93700-03008-0B

$1.35

32

SCREW, OVAL (3X8) This part replaces 93700-03008-02.

93700-03008-0B

$1.35

33

TUBE (4.5) This part replaces 95001-45000.

95001-45000-40

Unavailable

33

BULK HOSE, FUEL (4.5X3000) (4.5)

95001-45003-60M

$49.17

33

TUBE (4.5) This part replaces 95001-45000-90.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45085.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45095.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45100.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45100-90.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45105.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45118.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45120.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45130.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45140.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45150.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45180.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45190.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45210.

95001-45000-40

Unavailable

33

TUBE (4.5) This part replaces 95001-45475.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45000.

95001-45000-40

Unavailable

34

BULK HOSE, FUEL (4.5X3000) (4.5)

95001-45003-60M

$49.17

34

TUBE (4.5) This part replaces 95001-45000-90.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45085.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45100.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45100-90.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45105.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45120.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45130.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45140.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45150.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45180.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45190.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45210.

95001-45000-40

Unavailable

34

TUBE (4.5) This part replaces 95001-45475.

95001-45000-40

Unavailable

35

CLIP, TUBE (4.5)

95002-45000

$1.20
