2007 Yamaha Attak (RXW10W) Primary Sheave Diagram

← All diagrams

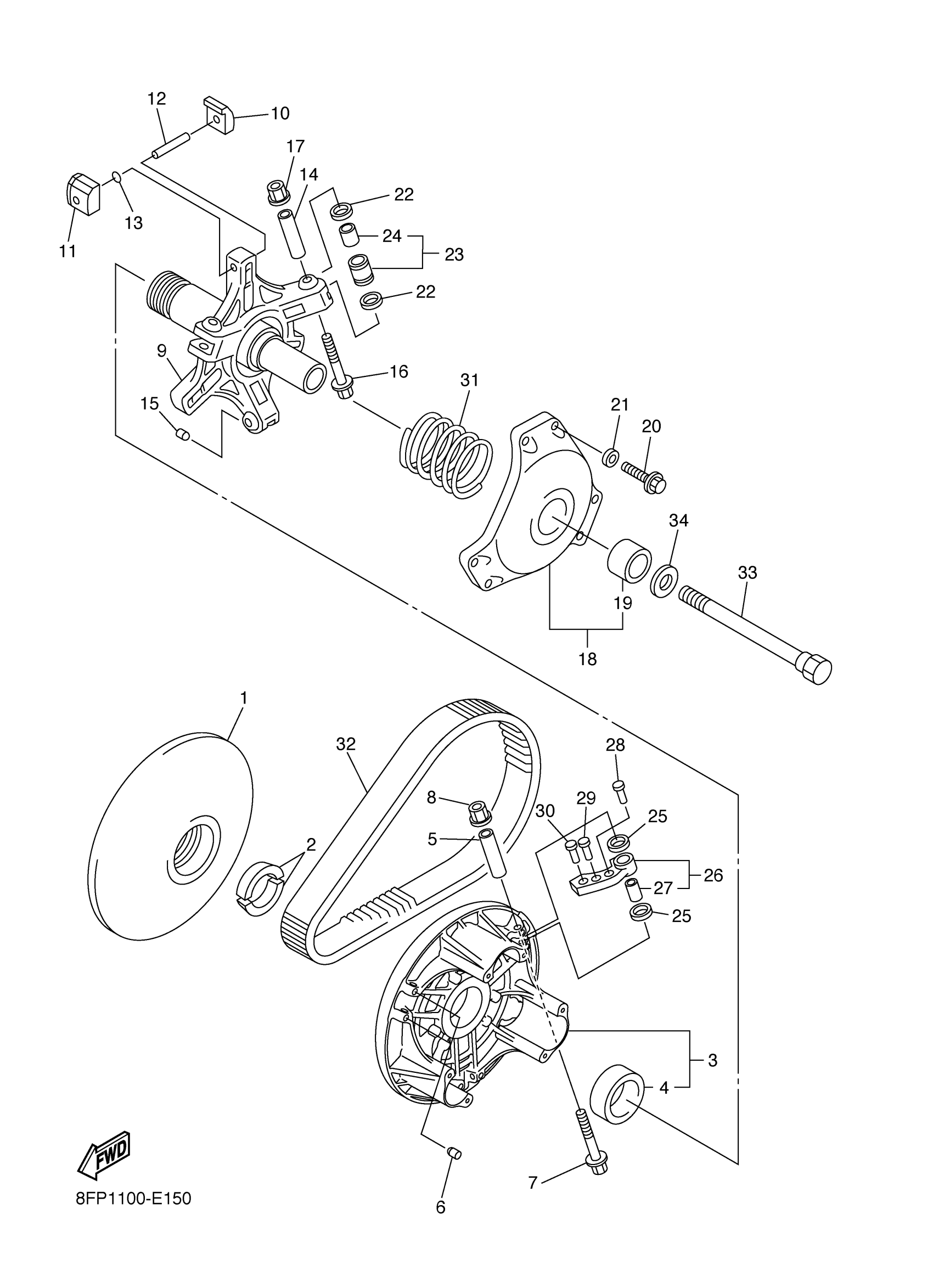

Find the part on the Primary Sheave diagram for your 2007 Yamaha Attak (RXW10W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Attak (RXW10W) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

1
Out of stock

2

STOPPER

8V0-17639-00-00

1
Out of stock

3

PRIMARY SLIDING SHEAVE COMP.

8FP-17620-00-00

1
Out of stock

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1
Out of stock

5

COLLAR

90387-0514T-00

1
Out of stock

6

BOLT, SET

90113-05041-00

1
Out of stock

7

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

8

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

9

SPIDER COMPLETE

8FA-17640-02-00

—
Out of stock

10

SLIDER

8BW-17653-00-00

1
Out of stock

11

SLIDER

8ES-17653-00-00

1
Out of stock

12

PIN, SPRING (7F7)

91609-50032-00

1
Out of stock

13

DAMPER, SLIDER

8ES-17655-00-00

1
Out of stock

14

COLLAR

90387-0514U-00

1
Out of stock

15

BOLT, SET

90113-05041-00

1
Out of stock

16

BOLT, WASHER BASED(88R)

90105-05644-00

1
Out of stock

17

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

18

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

—
Out of stock

19

BUSH, SOLID(8CP)

90380-28237-00

—
Out of stock

20

BOLT, HEXAGON

97017-06030-00

—
Out of stock

21

WASHER(6TA)

92907-06600-00

—
Out of stock

22

WASHER, PLATE(8BV)

90202-09227-00

—
Out of stock

23

ROLLER, COMP

8FG-17624-00-00

—
Out of stock

24

BUSH

90386-09001-00

—
Out of stock

25

WASHER, PLATE(88R)

90202-08204-00

—
Out of stock

26

WEIGHT COMP

8FP-17605-00-00

—
Out of stock

27

BUSH

90386-08002-00

—
Out of stock

28

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—
Out of stock

29

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—
Out of stock

30

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—
Out of stock

31

SPRING, COMPRESSION

90501-582L1-00

—
Out of stock

32

V-BELT

8DN-17641-01-00

1
Out of stock

33

BOLT (L=156.5MM)

8V0-17647-10-00

—
Out of stock

34

WASHER(JN5)

92907-16100-00

—
Out of stock
