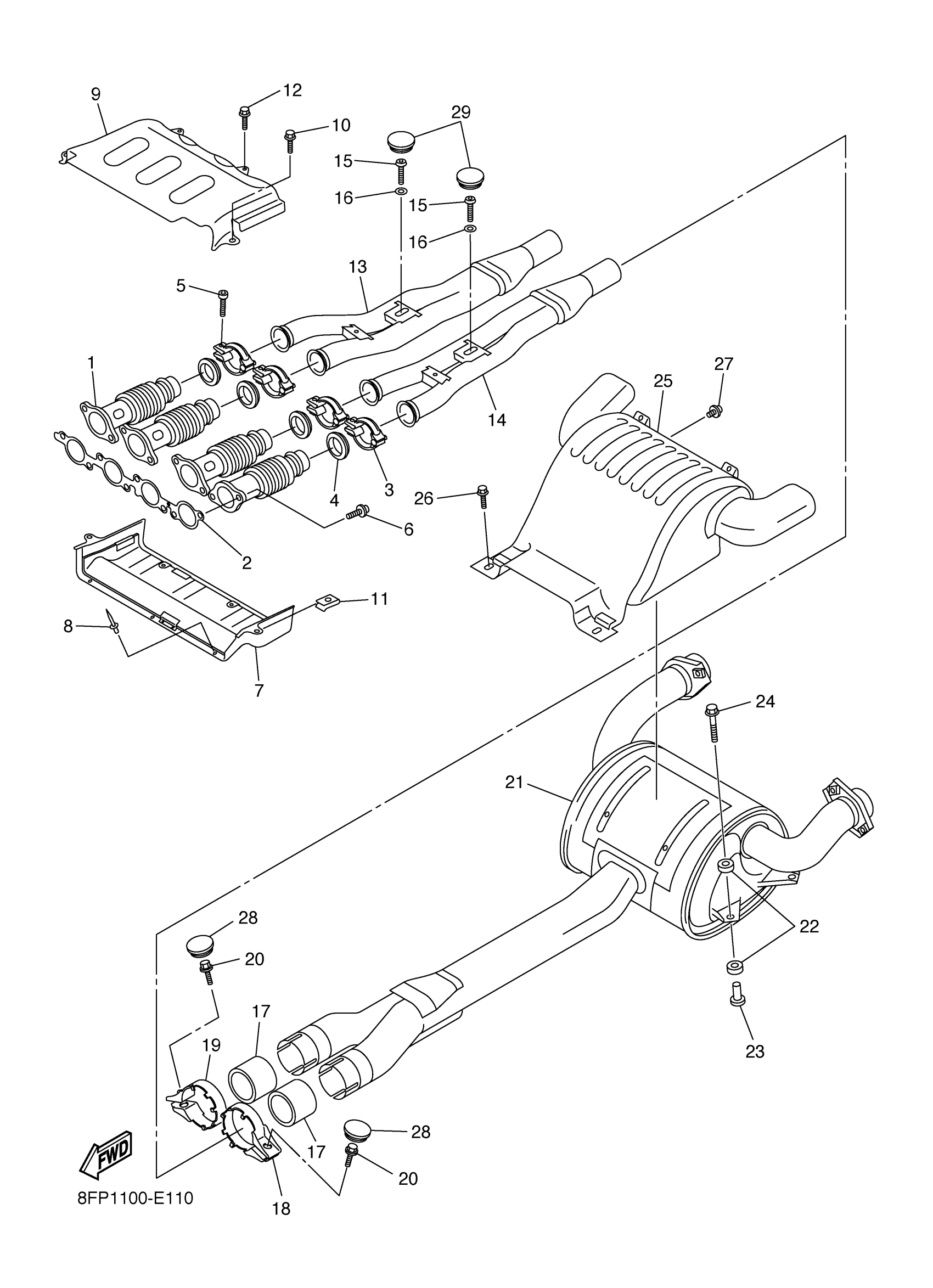

Yamaha RXW10W (ATTAK) 8FT3 2007 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

8FU-14615-01-00

$168.66

2

GASKET, EXHAUST PIPE

8FA-14613-00-00

$20.11

3

BAND, MUFFLER

8FA-14715-00-00

$31.11

4

GASKET, EXHAUST PIPE

99999-03989-00

$25.75

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

6

BOLT, SMALL FLANGE

95027-08020-00

$5.75

7

COVER, EXHAUST

8FU-14627-10-00

Unavailable

8

RIVET, BLIND

90267-47195-00

$3.12

9

EXHAUST COVER ASS'Y

8FP-14637-00-00

Unavailable

10

BOLT, FLANGE

95817-06008-00

$5.76

11

NUT, SPRING

90183-060A0-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$1.40

13

EXHAUST PIPE ASSY 1

8FR-14610-00-00

$387.62

14

EXHAUST PIPE ASSY 2

8FR-14620-00-00

$387.05

15

BOLT, BUTTON

92017-08025-00

$5.75

16

WASHER, PLAIN

92990-08200-00

$2.36

17

GASKET, MUFFLER

8FA-14714-10-00

Unavailable

18

BAND, SILENCER

8FA-14788-00-00

Unavailable

19

BAND, SILENCER

8FA-14789-00-00

Unavailable

20

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

21

SILENCER ASSY

8FP-14750-10-00

Unavailable

22

DAMPER, MUFFLER

8FA-14737-00-00

Unavailable

23

COLLAR

90387-08071-00

Unavailable

24

BOLT, WITH WASHER

90119-08062-00

Unavailable

25

PROTECTOR ASSY

8FP-14708-01-00

Unavailable

26

BOLT, WITH WASHER

90119-06179-00

Unavailable

27

BOLT, FLANGE

95817-06008-00

$5.76

28

PLUG

90338-20004-00

Unavailable

29

PLUG

90338-20007-00

Unavailable
