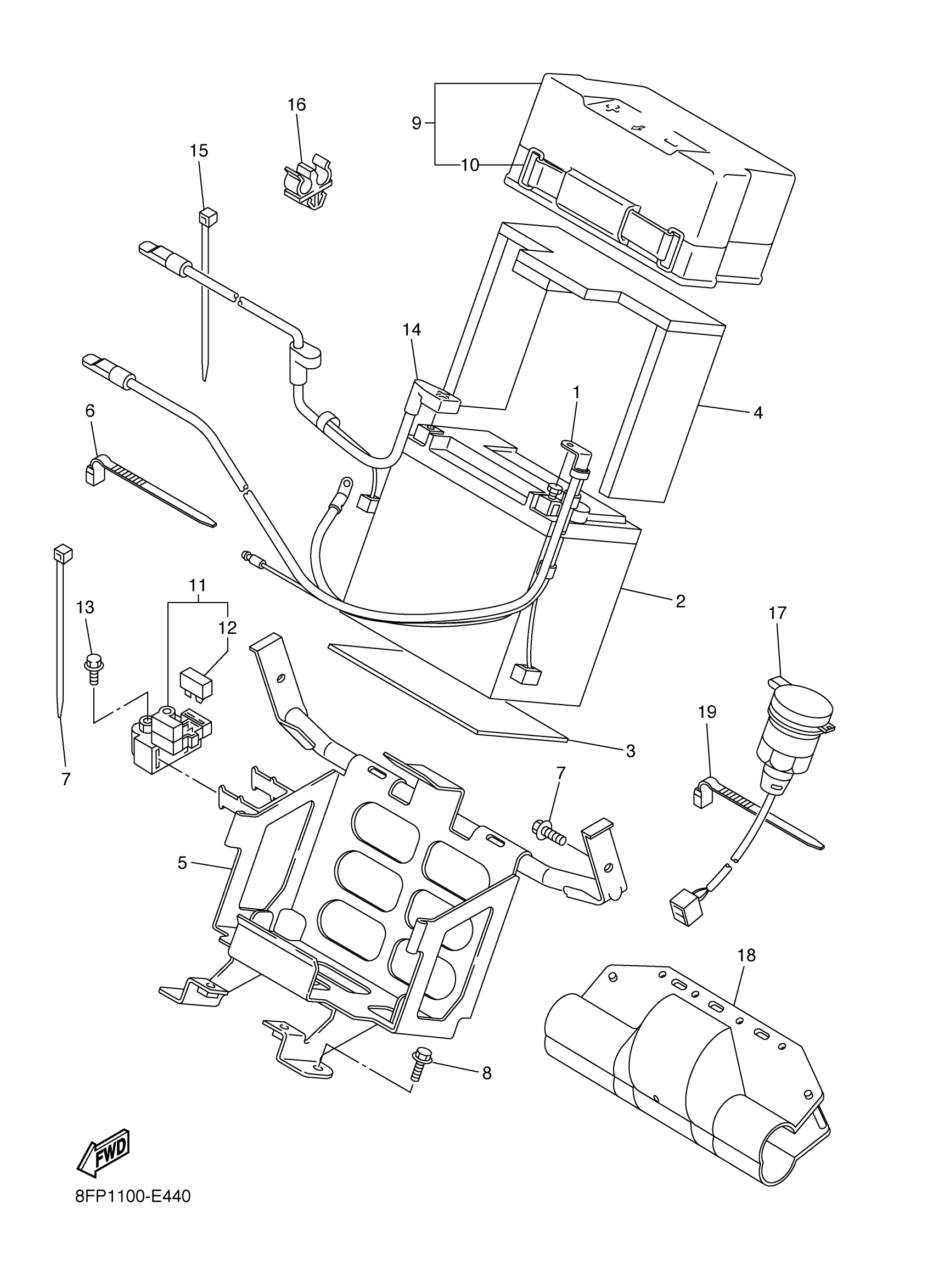

Find the part on the Electrical 2 diagram for your 2007 Yamaha Attak (RXW10W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Attak (RXW10W) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE, MINUS LEAD

8FP-82116-01-00

1
Out of stock

2

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

1
Out of stock

3

SEAT, BATTERY

8FA-82122-00-00

—

$6.11

In stock

4

PLATE, BATTERY FITTING

8FU-82136-00-00

—

$19.83

In stock

5

BRACKET, BATTERY

8FP-2199G-01-00

1
Out of stock

6

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

7

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

8

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

9

COVER, BATTERY

8FU-82129-00-00

—

$56.82

In stock

10

BAND, BATTERY

8DM-82131-10-00

1

$12.75

In stock

11

1

$101.37

In stock

12

FUSE (10A)

42X-82151-00-00

1

$2.16

In stock

13

BOLT, SMALL FLANGE

95027-06008-00

1

$5.60

In stock

14

WIRE, PLUS LEAD

8FP-82115-00-00

—

$50.68

In stock

15

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

16

CLAMP(87A)

90464-08126-00

—
Out of stock

17

TERMINAL COMP.

8FP-8254B-00-00

—

$148.14

In stock

18

COVER

8FP-8252U-00-00

—

$16.38

In stock

19

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock
