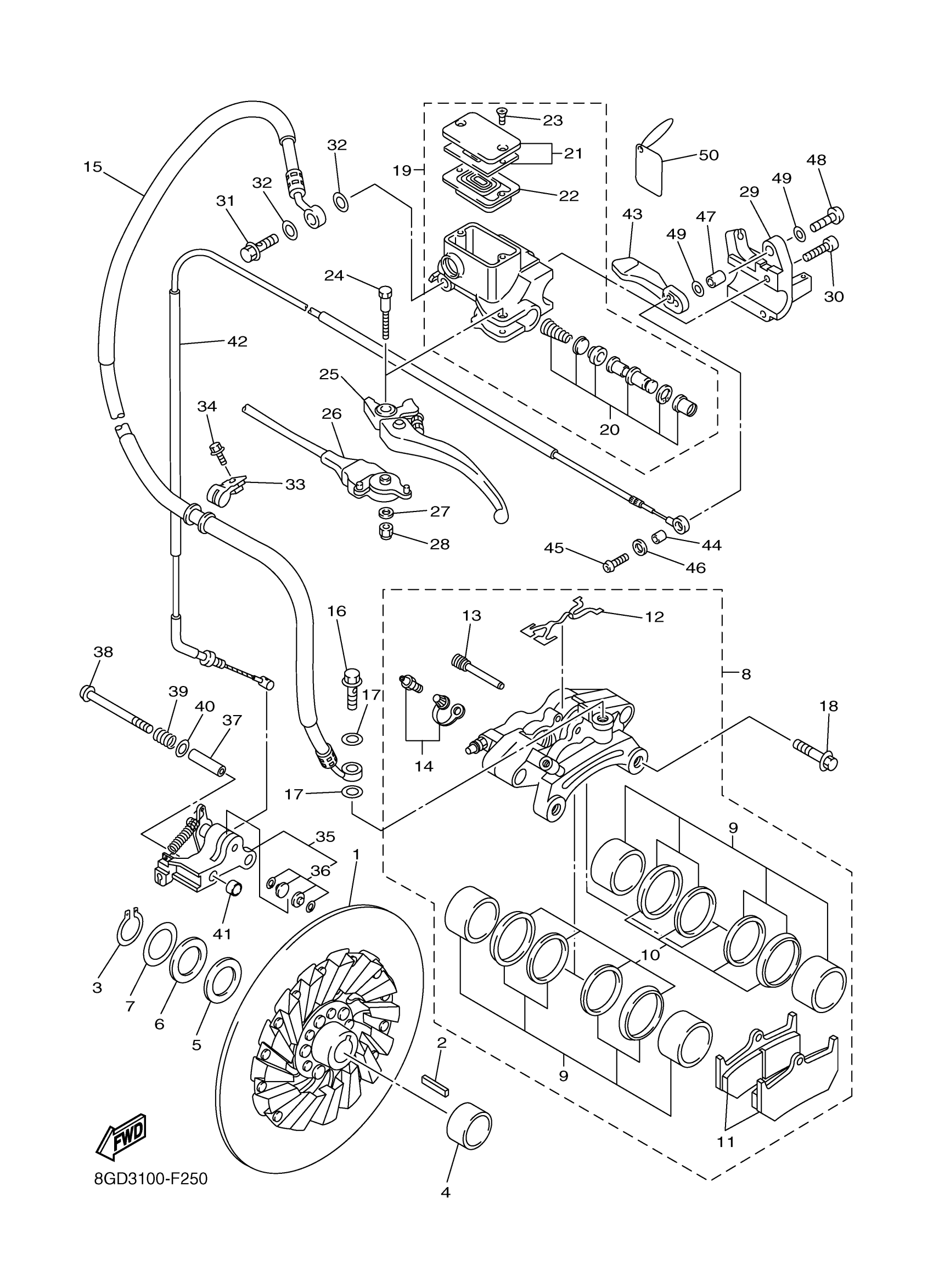

Find the part on the Brake diagram for your 2007 Yamaha Attak (RXW10W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Attak (RXW10W) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK BRAKE ASSY

8FU-2581T-00-00

1
Out of stock

2

KEY, STRAIGHT

90282-07002-00

1
Out of stock

3

CIRCLIP

99009-24400-00

1
Out of stock

4

COLLAR

90387-25012-00

1
Out of stock

5

COLLAR

90387-25011-00

1
Out of stock

6

WASHER, PLATE (888)

90201-25527-00

1
Out of stock

7

WASHER, PLATE (8R6)

90201-252F1-00

1
Out of stock

8

CALIPER ASSY (LEFT)

8FU-2580T-01-00

—
Out of stock

9

PISTON ASSY, CALIPER

8FU-W0057-00-00

—
Out of stock

10

CALIPER SEAL KIT

3JD-W0047-10-00

—
Out of stock

11

BRAKE PAD KIT 2

8FU-W0046-01-00

1
Out of stock

12

SUPPORT, PAD

8FU-25919-00-00

—
Out of stock

13

PIN, PAD

8FU-25924-00-00

—
Out of stock

14

BLEED SCREW KIT

8CR-W0048-00-00

1
Out of stock

15

HOSE, BRAKE 1

8GT-25872-10-00

1
Out of stock

16

BOLT, UNION(3GM)

90401-10159-00

—
Out of stock

17

WASHER, PLATE(481)

90201-10118-00

—
Out of stock

18

BOLT, FLANGE

90105-10096-00

—
Out of stock

19

MASTER CYLINDER SUB ASSY

8FA-W2587-00-00

—
Out of stock

20

CYLINDER KIT, MASTER

8CR-W0041-00-00

—
Out of stock

21

RESERVOIR CAP SET

8CR-W2585-00-00

—
Out of stock

22

DIAPHRAGM, RESERVOIR

55U-25854-00-00

—
Out of stock

23

SCREW, FLAT

98707-04012-00

—
Out of stock

24

BOLT, LEVER

8CR-2589F-00-00

—
Out of stock

25

LEVER 1

8DN-83912-00-00

—
Out of stock

26

STOP SWITCH ASSY

8FP-82530-00-00

—
Out of stock

27

WASHER, PLAIN

8CR-8398X-00-00

—
Out of stock

28

NUT, NYLON

95707-05300-00

—
Out of stock

29

BRACKET, MASTER CYLINDER

8FA-25867-00-00

—
Out of stock

30

BOLT,SOCKET

91317-06025-00

—
Out of stock

31

BOLT, UNION(3GM)

90401-10159-00

—
Out of stock

32

WASHER, PLATE(481)

90201-10118-00

—
Out of stock

33

HOLDER, BRAKE HOSE

8FA-25886-00-00

—
Out of stock

34

BOLT(3KJ)

90109-063F1-00

—
Out of stock

35

PARKING BRAKE COMP.

8FU-25970-01-00

—
Out of stock

36

PARKING BRAKE PAD KIT

8FA-W0045-00-00

—
Out of stock

37

COLLAR

90387-06058-00

—
Out of stock

38

BOLT

90111-06048-00

—
Out of stock

39

SPRING, COMPRESSION

90501-120A0-00

—
Out of stock

40

WASHER 6474553400

90201-12161-00

—
Out of stock

41

COLLAR

90387-06085-00

—
Out of stock

42

CABLE, BRAKE

8FP-26351-00-00

—
Out of stock

43

LEVER 2

8FA-83922-00-00

—
Out of stock

44

COLLAR

90387-06043-00

—
Out of stock

45

BOLT, BUTTON HEAD

92017-06014-00

—
Out of stock

46

. WASHER, PLATE

90201-06050-00

1
Out of stock

47

COLLAR

90387-081M9-00

1
Out of stock

48

BOLT, BUTTON

92017-08020-00

—
Out of stock

49

WASHER PLATE 141181390000

90201-08085-00

—
Out of stock

50

TAG, CAUTION

8CR-23496-00-00

1
Out of stock
