2006 Yamaha Attak (RXW10L) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 2006 Yamaha Attak (RXW10L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

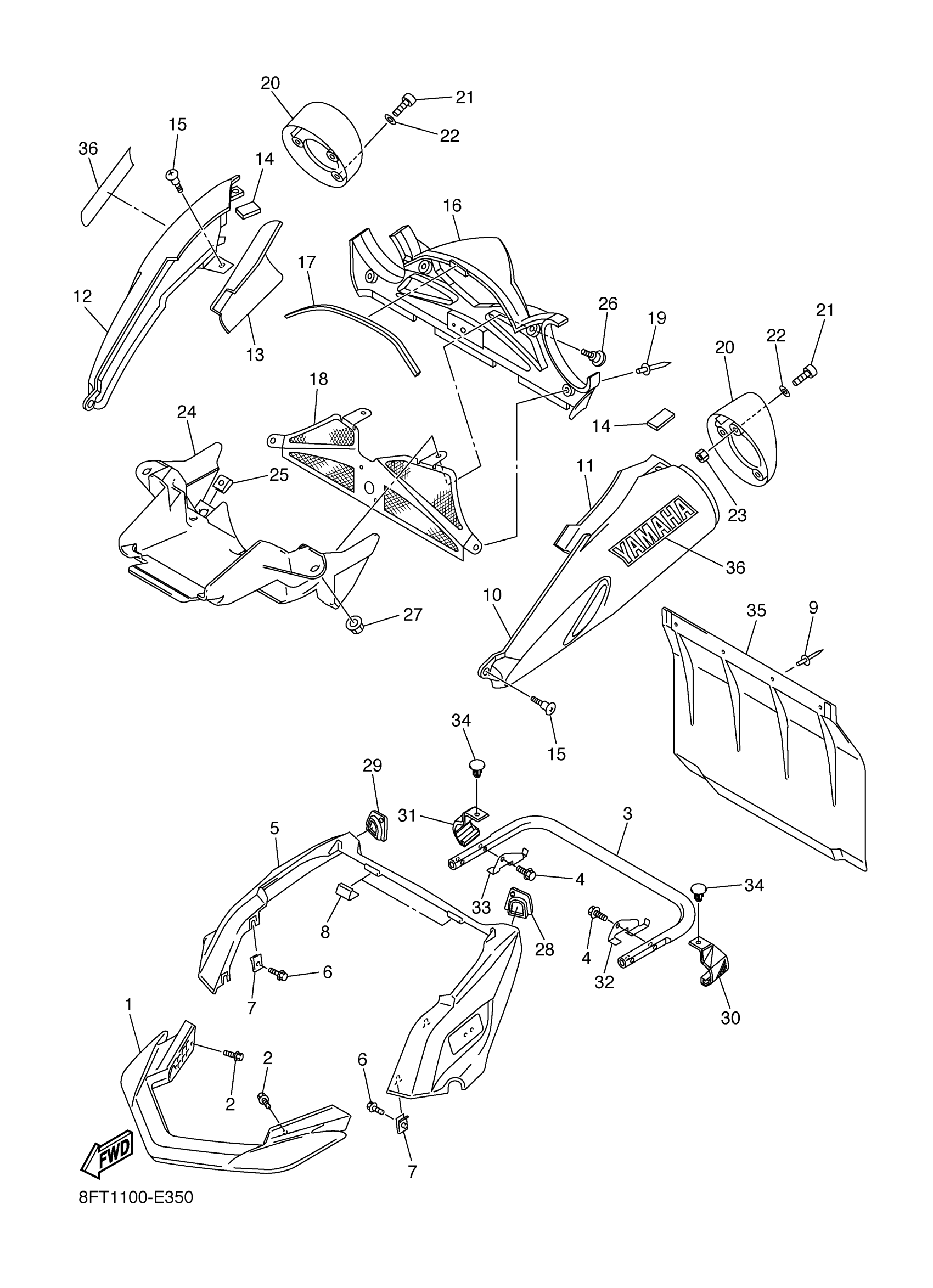

2006 Yamaha Attak (RXW10L) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8FA-77511-01-00

1
Out of stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

3

BUMPER, REAR 1

8FG-77541-01-00

1
Out of stock

4

BOLT, FLANGE(8AB)

95817-08020-00

1
Out of stock

5

BUMPER, REAR 2

8EP-77542-00-00

1
Out of stock

6

BOLT, FLANGE

95817-06016-00

1
Out of stock

7

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

8

TAPE 4

8FA-7717H-00-00

1
Out of stock

9

RIVET, BLIND

90267-47200-00

1
Out of stock

10

PROTECTOR 1

8FP-77551-01-P0

—
Out of stock

10

PROTECTOR 1

8FP-77551-01-P1

1
Out of stock

11

LINING, SHROUD 1

8FP-77261-00-00

1
Out of stock

12

PROTECTOR 2

8FP-77552-01-P0

—
Out of stock

12

PROTECTOR 2

8FP-77552-01-P1

—
Out of stock

13

LINING, SHROUD 2

8FP-77262-00-00

—
Out of stock

14

LINING, SHROUD 3

8FP-77263-00-00

—
Out of stock

15

SCREW, BINDING

90154-06009-00

—
Out of stock

16

COVER, TAILLIGHT

8FP-84516-01-00

—
Out of stock

17

TRIM 8

8FP-77234-00-00

—
Out of stock

18

LOUVER 1

8FP-77441-00-00

—
Out of stock

19

RIVET, BLIND(8CH)

90267-47187-00

—
Out of stock

20

CAP

8FP-77517-00-00

—
Out of stock

21

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

23

NUT, HEXAGON

95380-06600-00

1
Out of stock

24

BRACKET, TAILLIGHT

99999-03831-00

1
Out of stock

25

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

26

SCREW, BINDING

90154-06009-00

—
Out of stock

27

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

28

GROMMET 1

8EP-77431-00-00

—
Out of stock

29

GROMMET 2

8EP-77432-00-00

—
Out of stock

30

COVER, 3

8EP-77563-00-00

—
Out of stock

31

COVER, 4

8EP-77564-00-00

—
Out of stock

32

PROTECTOR 4

8EP-77554-00-00

—
Out of stock

33

PROTECTOR 5

8EP-77555-00-00

—
Out of stock

34

PLUG

90338-08220-00

1
Out of stock

35

FLAP

8GT-K7595-00-00

1
Out of stock

36

EMBLEM, YAMAHA

99244-00140-00

—
Out of stock
