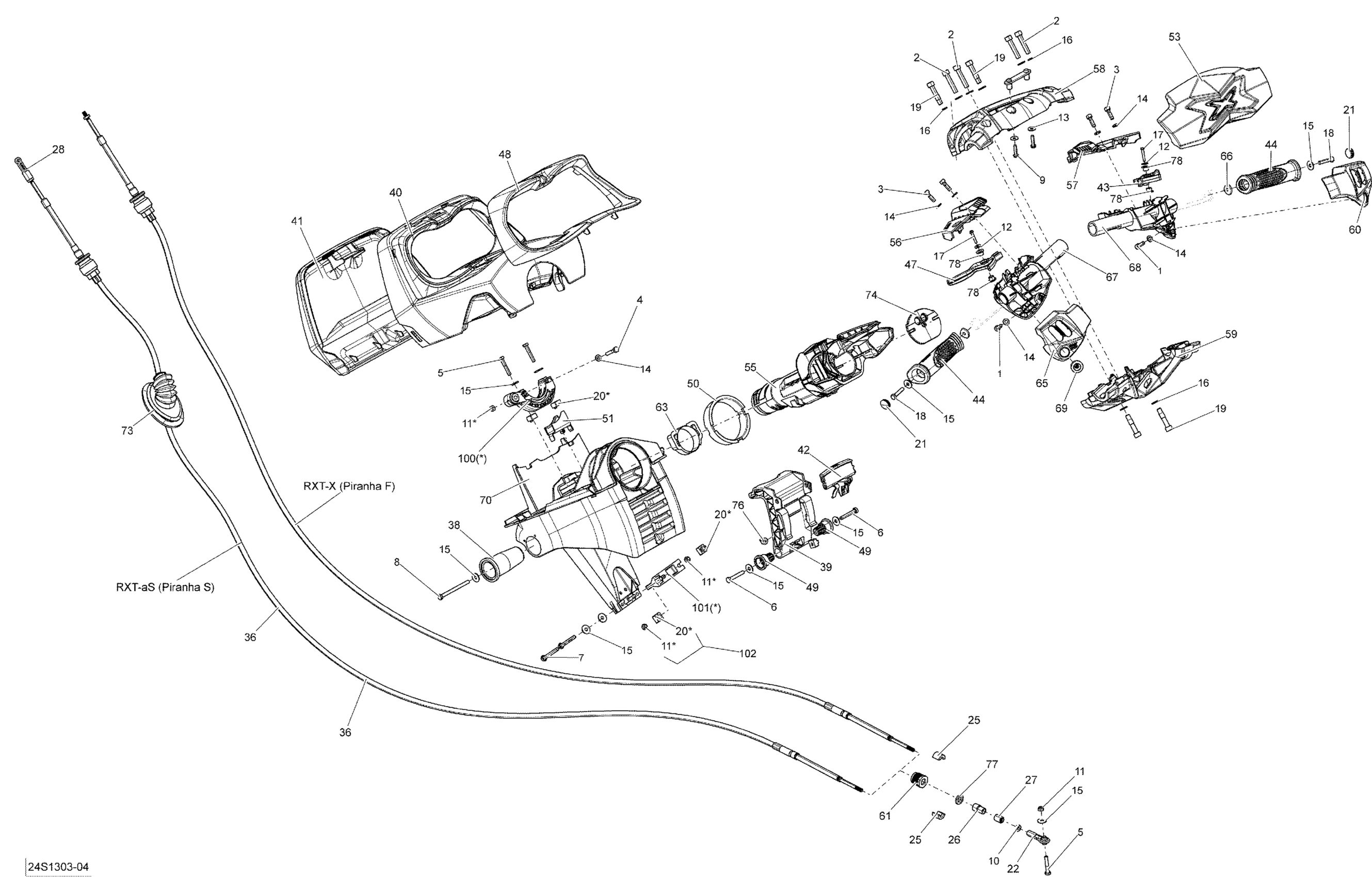

Sea-doo RXT-X aS 260 & RS. 2013 Steering Diagram
#
1
Socket Screw M6 X 16
205061660
Unavailable
2
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
3
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
4
Hex. Screw M6 X 30
207063060
Unavailable
5
Hex. Screw M6 X 35
207163560
Unavailable
6
Hex. Screw M6 X 40
207064060
Unavailable
7
Hex. Screw M6 X 50
207165060
Unavailable
8
Hex Screw M6 X 80
207168060
Unavailable
9
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
10
Hex. Nut 1/4"-28
211100056
Unavailable
11
Elastic Stop Nut M6, Brass
232561200
Unavailable
12
Flat Washer 4 mm, Stainless
234042600
Unavailable
13
Flat Washer 5 mm, Stainless
234052600
Unavailable
15
Flat Washer M6, Stainless
234062600
Unavailable
17
Hex. Flange Screw K40 X 25
241142560
Unavailable
18
Hex. Screw M6 X 30, Scotch Grip
250000002
Unavailable
19
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
Unavailable
20
Housing Nut M6 | Included 550f to 550f2
269502408
Unavailable
21
Black, Cap
277000203
Unavailable
22
Ball Joint
277000775
Unavailable
25
Half Ring
277001527
Unavailable
26
End Piece
277001583
Unavailable
27
Wiper Rod
277001582
Unavailable
28
Ball Joint
277001180
Unavailable
36
Steering Cable
277001602
Unavailable
38
Steering Support Pivot
277001605
Unavailable
39
Handle Ass'y | Includes 780 to 780c
277001658
Unavailable
40
Gauge Support
277001953
Unavailable
41
Gauge Support Cover
277001613
Unavailable
42
LOCK - Call your local BRP dealership
277001616
Unavailable
43
Throttle Handle
277001944
Unavailable
44
Handlebar Grip
277002286
Unavailable
47
Reverse Handle
277001945
Unavailable
48
Gauge Trim, Black
277001630
Unavailable
49
Pivot
277001652
Unavailable
50
Wear Ring
277001653
Unavailable
51
Spacer
277001654
Unavailable
53
Handle Pad
277001683
Unavailable
55
Steering Colomn
277001807
Unavailable
56
LH UPPER HOUSING - Call your local BRP dealership
277001686
Unavailable
57
Upper Housing RH
277001688
Unavailable
58
FRONT EXTENSION BLOC - Call your local BRP dealership
277001909
Unavailable
59
REAR EXTENSION BLOC - Call your local BRP dealership
277001910
Unavailable
60
RH Housing Cover
277001718
Unavailable
61
Steering Cable Lock This part replaces 277000784.
277001729
Unavailable
63
Wear Ring
277002318
Unavailable
65
LH HOUSING COVER - Call your local BRP dealership
277001794
Unavailable
66
Insert Grip Handle
277001863
Unavailable
68
RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.
277001951
Unavailable
69
Red, Knob Switch
277001887
Unavailable
70
Steering Support | Includes 710 to 710b
277001942
Unavailable
73
Grommet | Model with Suspension
293720083
Unavailable
74
Grommet
293720086
Unavailable
77
Rubber Washer
293830063
Unavailable
78
Bushing
293900091
Unavailable
100
Support Ass'y | Includes 460 to 460b
277002179
Unavailable
101
Thrust Support Ass'y
277001655
Unavailable
102
Housing Nut M6 | Included 550f to 550f2
269502408
Unavailable
