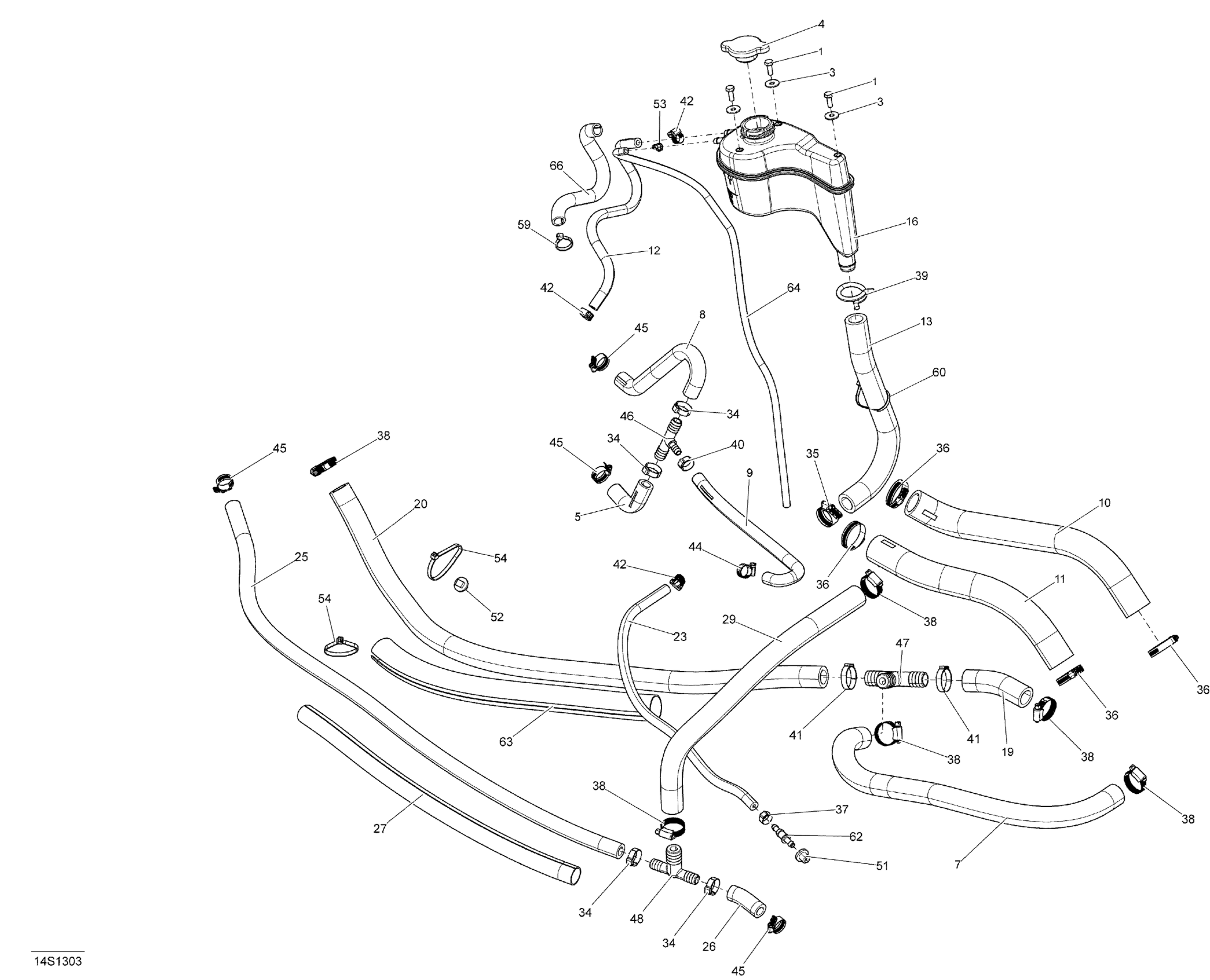

Sea-doo RXT-X aS 260 & RS. 2013 Cooling System Diagram

#

Description
Price

1

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

3

Flat Washer M6, Stainless

234062600

$0.73

4

Pressure Cap | Includes 720 to 720a

276000100

$23.85

5

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$17.88

7

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

8

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$17.88

9

Formed Hose | Without Catalyst

276000246

$17.13

10

Radiator Hose This part replaces 276000240.

276000491

$46.24

11

Radiator Hose

276000241

$30.57

12

Was 275500549 Hose 1/4"

219704357

$178.33

13

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

16

Coolant Tank

276000265

$117.88

19

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

20

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

23

Was 415129508 Bleeder Hose

219704416

$11.48

25

Was 276000001 Hose 12.5 mm

219704394

$49.22

26

Was 276000001 Hose 12.5 mm

219704394

$49.22

27

Tubing 25 MM 1000MM Long

219704402

$14.57

29

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

34

Oetiker Clamp

293650012

$5.67

35

Tridon Gear Clamp

293650019

$5.52

36

Tridon Gear Clamp

293650185

$12.52

37

Oetiker Gear Clamp

293650025

$2.82

38

Tridon Gear Clamp

293650051

$4.15

39

Spring Clamp

293650115

$2.82

40

Oetiker Clamp | Europe

293650030

$4.96

41

Oetiker Gear Clamp

293650165

$4.96

42

Tridon Gear Clamp

293650170

$2.00

44

Tridon Gear Clamp

293650171

$2.82

45

Tridon Gear Clamp

293650172

$3.07

46

T-Fitting

293710116

$16.39

47

T-Fitting

293710131

$14.43

48

T-Fitting

293710132

$10.88

51

Grommet

293720029

$1.30

52

Mount Dart

293730040

$0.99

53

Tie Wrap 94 mm | 4X4

293750001

$0.96

54

Tie Wrap 368 mm

293750008

$0.97

59

Tie Wrap 94 mm | 4X4

293750001

$0.96

60

Tie-Rap 180 mm

414115200

$0.10

62

Male Connector

414518500

$4.01

63

Tubing 25 MM 1000MM Long

219704402

$14.57

64

Polyurethane Hose 10000Mm Long

219704410

$52.96

66

Was 409901800 Tubing (13 mm)

219704400

$10.79
