Description

Price

1

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

2

Flat Washer M6, Stainless

234062600

$0.64

3

Pressure Cap | Includes 720 to 720a

276000100

$20.77

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

5

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

6

Formed Hose | Without Catalyst

276000246

$14.92

7

Tubing 25 MM 1000MM Long

219704402

$12.69

8

Radiator Hose This part replaces 276000240.

276000491

$40.27

9

Radiator Hose

276000241

$26.62

10

FORMED HOSE - Call your local BRP dealership

276000238

Unavailable

11

FORMED HOSE - Call your local BRP dealership

276000239

Unavailable

12

Was 276000001 Hose 12.5 mm

219704394

$42.87

13

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

14

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

15

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

16

Coolant Tank

276000265

$102.67

18

Was 275500549 Hose 1/4"

219704357

$183.82

19

FORMED HOSE - Call your local BRP dealership

276000305

$23.82

21

Oetiker Clamp

293650012

$4.94

26

Tridon Gear Clamp

293650019

$4.81

27

Tridon Gear Clamp

293650185

$10.91

32

Tridon Gear Clamp

293650185

$10.91

33

Tridon Gear Clamp

293650051

$3.61

35

Tridon Gear Clamp

293650051

$3.61

36

Spring Clamp

293650115

$2.46

37

Oetiker Clamp | Europe

293650030

$4.32

38

Tridon Gear Clamp

293650170

$1.74

39

Tridon Gear Clamp

293650171

$2.46

40

Tridon Gear Clamp

293650172

$2.68

41

Tridon Gear Clamp

293650172

$2.68

45

T-Fitting

293710116

$14.27

46

T-Fitting

293710132

$9.48

47

Mount Dart

293730040

$0.86

48

Tie Wrap 94 mm | 4X4

293750001

$0.83

49

Tie Wrap 368 mm

293750008

$0.85

50

Tie Wrap 368 mm

293750008

$0.85

51

Tie Wrap 368 mm

293750008

$0.85

52

Tie-Rap 180 mm

414115200

$0.09

53

Tie Wrap 368 mm

293750008

$0.85

54

Polyurethane Hose 10000Mm Long

219704410

$46.12

35a

Tridon Gear Clamp

293650172

$2.68

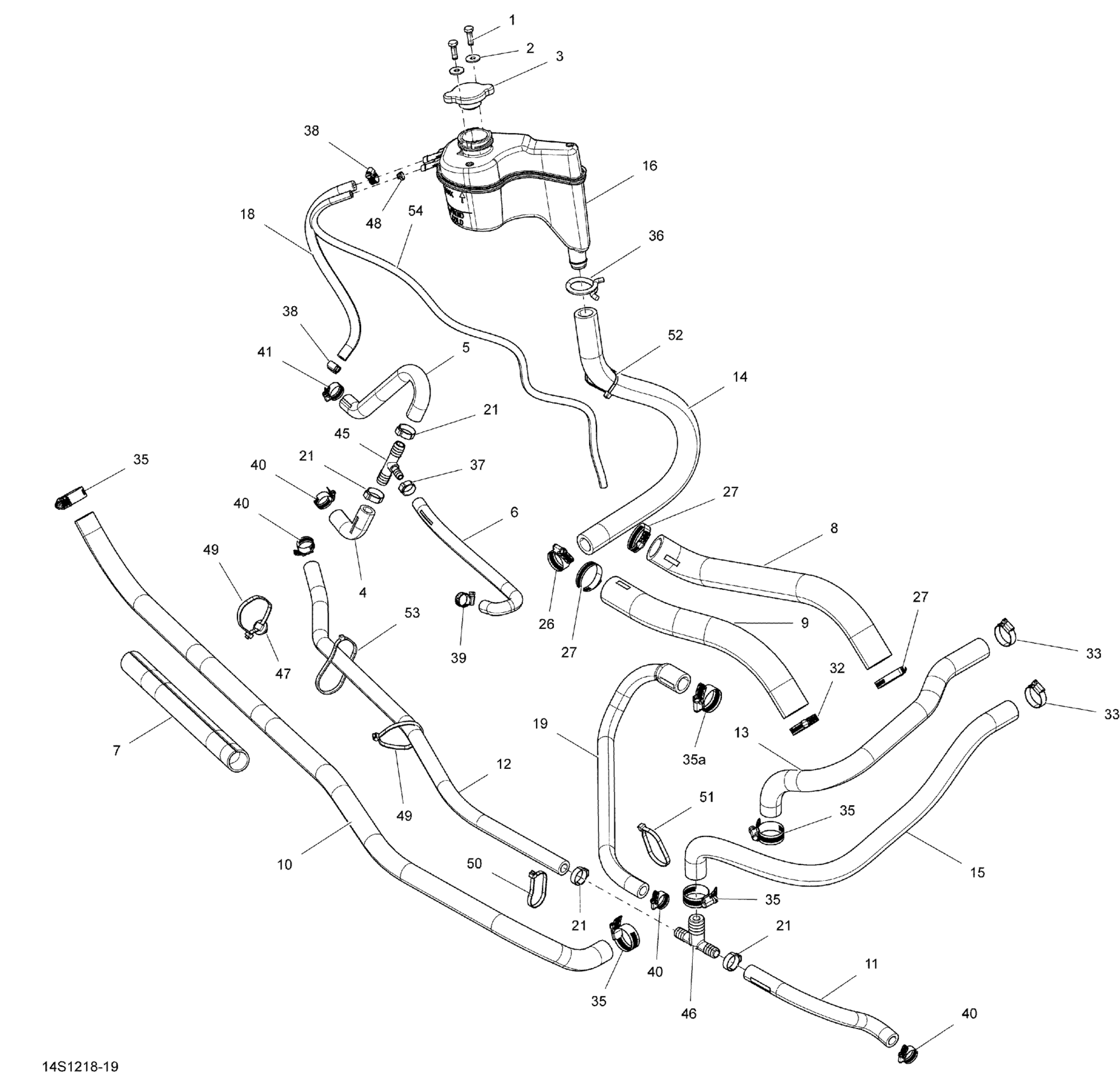

Sea-doo RXT 260 (RS), 2012 Cooling System Diagram

FORMED HOSE - Call your local BRP dealership

FORMED HOSE - Call your local BRP dealership
