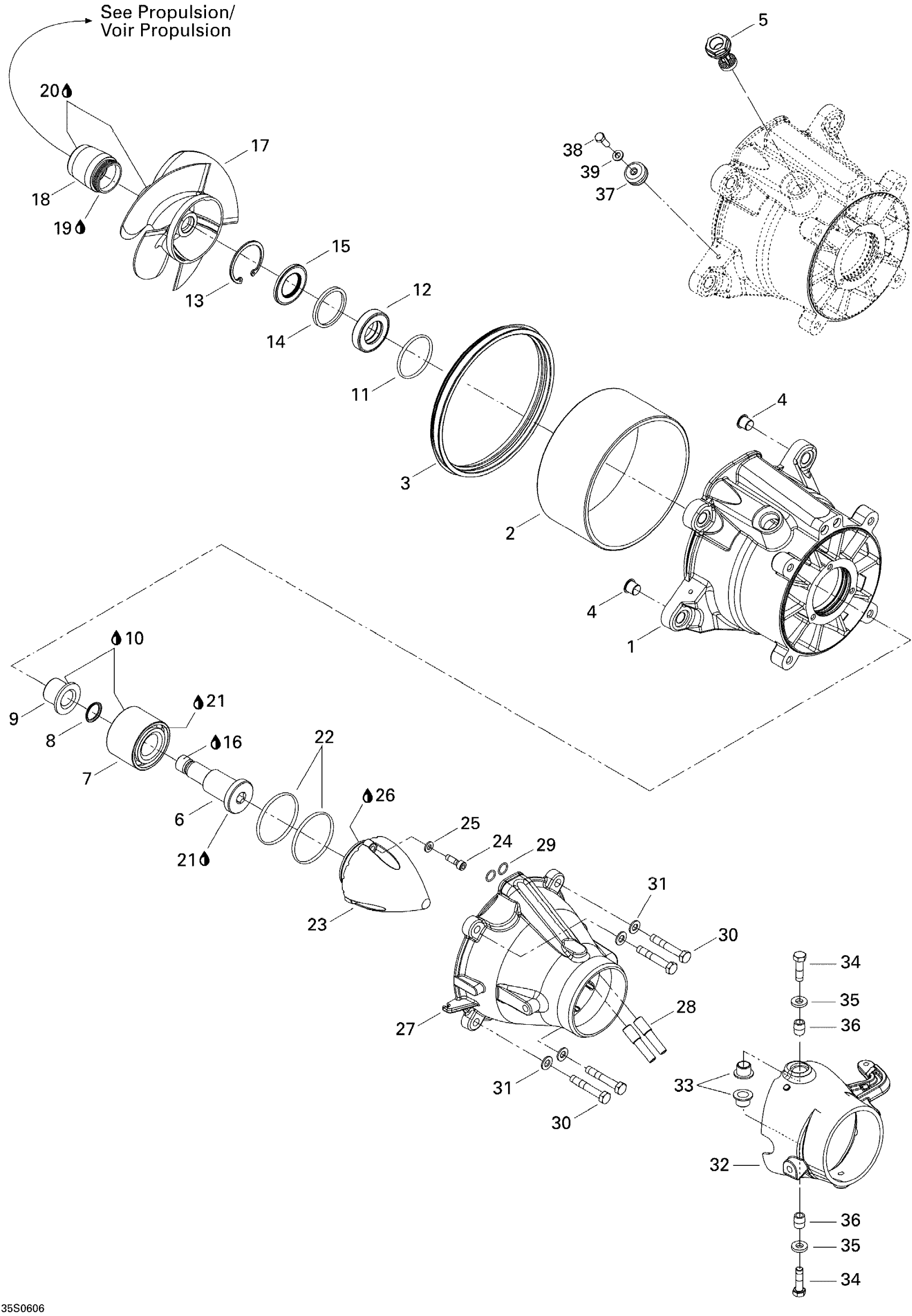

Sea-doo RXT, 2006 Pump Diagram
#
1
Impeller Housing
267000084
Unavailable
2
Wear Ring
267000372
Unavailable
3
Neoprene Seal
293200087
Unavailable
4
Bushing
267000093
Unavailable
5
Plug | Includes 370z to 370z1
267000282
Unavailable
6
Impeller Shaft
267000054
Unavailable
7
Angled Bearing This part replaces 267000030.
267000900
Unavailable
8
O-Ring
505070315
Unavailable
9
Shaft Sleeve
267000318
Unavailable
10
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
11
O-Ring
293300090
Unavailable
12
Seal
271002071
Unavailable
13
Circlip
293370038
Unavailable
14
Spacer
271001393
Unavailable
15
Oil Seal
293200089
Unavailable
16
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
17
Impeller Ass'y This part replaces 267000250.
267000699
Unavailable
18
Guard
271002228
Unavailable
19
Était Was 293800050 Loctite 577, 250 ml
219704459
Unavailable
20
Synthetic Grease, 400 G
293550010
Unavailable
21
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
22
O-Ring
293300086
Unavailable
23
Impeller Cover
267000262
Unavailable
24
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
26
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
27
VENTURI - Call your local BRP dealership
267000221
Unavailable
28
Siphon Tube
271001133
Unavailable
30
HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership
207384060
Unavailable
31
Stainless, Flat Washer 8 mm
234081600
Unavailable
32
STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.
267000552
Unavailable
33
Venturi Bushing
293900001
Unavailable
34
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
35
Flat Washer M8.5 x 18
293050001
Unavailable
36
Sleeve
271001816
Unavailable
37
Anode Zinc
271001813
Unavailable
38
Hex. Screw M6 X 20, Scotch Grip
207362060
Unavailable
