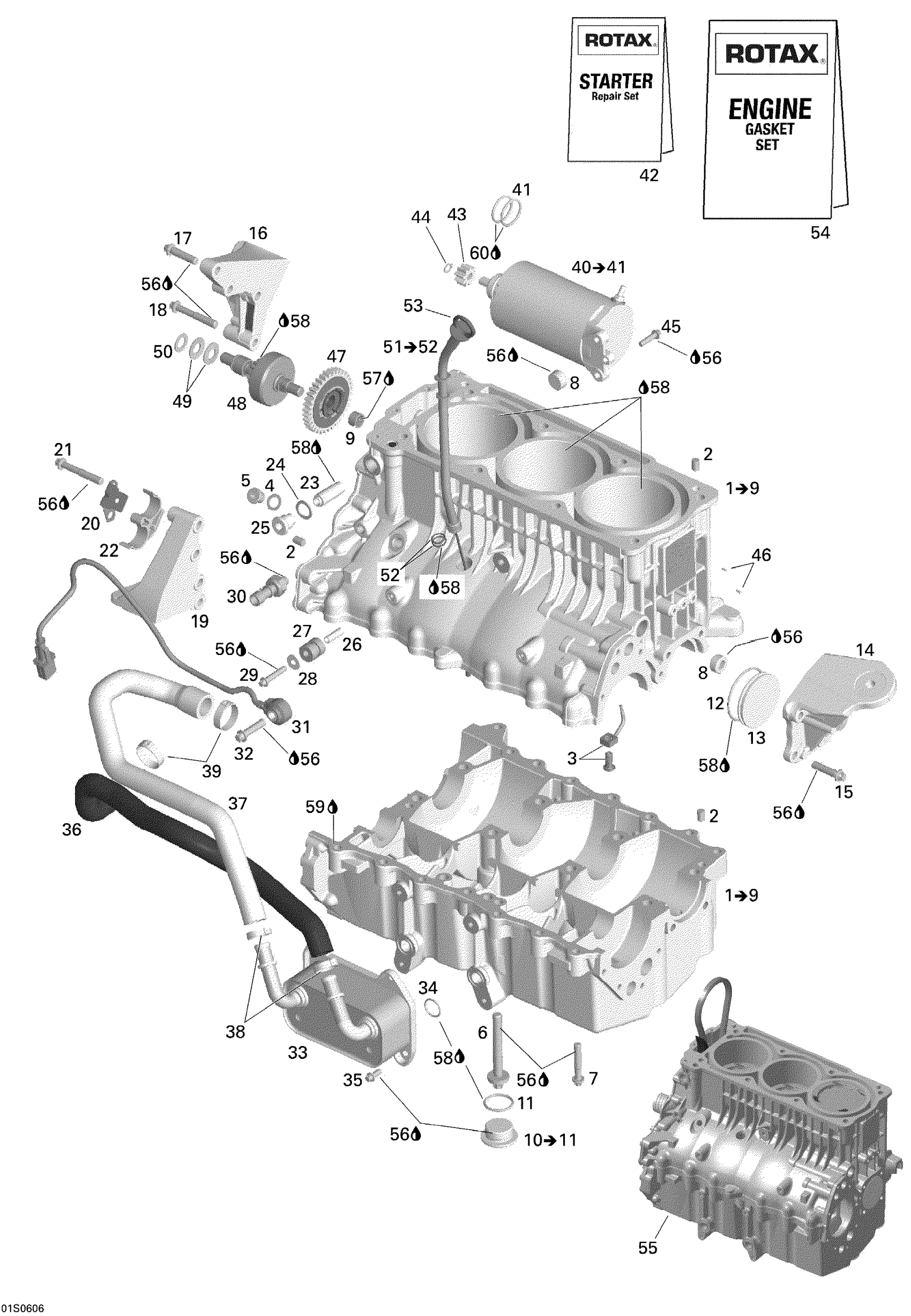

Sea-doo RXT, 2006 Engine Block Diagram
#
1
Cylinder Block With Sleeves | Includes 1 to 9 This part replaces 420892461.
420893511
Unavailable
2
Center Pin 8 X 12
420632010
Unavailable
3
Oil Spray Nozzle This part replaces 420956778.
420956827
Unavailable
4
Aluminum Sealing Ring
420250016
Unavailable
5
Plug Screw M12
420841923
Unavailable
6
Torx Flange Screw M10 X 82
420641120
Unavailable
7
Hex. Flange Screw M8 X 45
420641208
Unavailable
9
Needle Bushing
420232482
Unavailable
10
Plug Screw M30 X 1.5
420641171
Unavailable
11
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws
420631300
Unavailable
12
O-Ring
420430405
Unavailable
13
Plug Cover
420660110
Unavailable
14
FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.
420811792
Unavailable
16
Engine Bracket PTO, Exhaust
420811788
Unavailable
19
Engine Bracket PTO, Exhaust
420811784
Unavailable
20
Retaining Plate
420851740
Unavailable
22
Hose Bracket
420660290
Unavailable
25
Chain Tensioner With Screw | Includes no. 8-11
420236259
Unavailable
26
SPACER - Call your local BRP dealership
420847970
Unavailable
27
Rubber Bracket
420660090
Unavailable
28
Flat Washer M6
420827968
Unavailable
29
Torx Flange Screw M6 X 35
420440274
Unavailable
30
Oil Pressure Switch
420856533
Unavailable
33
Oil Radiator
420888850
Unavailable
34
O-Ring
420250057
Unavailable
35
Torx Flange Screw M6 X 16
420641048
Unavailable
36
FORMED HOSE - Call your local BRP dealership
420922796
Unavailable
37
FORMED HOSE - Call your local BRP dealership
420922791
Unavailable
38
Oeticker Gear Clamp, 25.6-706R
509000442
Unavailable
40
Electric Starter Ass'y | Includes no. 20-21
420888995
Unavailable
41
O-Ring
420631310
Unavailable
42
CARBON BRUSH SET - Call your local BRP dealership
420664710
Unavailable
43
Starter Gear, 9 Teeth
420834522
Unavailable
44
Retaining Ring
420845601
Unavailable
45
Torx Flange Screw M6 X 25
420641238
Unavailable
46
Grooved Pin
420249073
Unavailable
47
Bendix Starter This part replaces 420889872.
420890637
Unavailable
48
Bendix Starter This part replaces 420889872.
420890637
Unavailable
49
Spring Washer
420238300
Unavailable
50
Thrust Washer
420827261
Unavailable
51
Oil Level Tube
420956944
Unavailable
52
O-Ring
420950810
Unavailable
53
Oil Level Gauge
420956933
Unavailable
54
Engine Gasket Set
420889773
Unavailable
55
Not Available As Spare Part - Friction Washer
Unavailable
55
Engine Long Block This part replaces 420150338.
420150394
Unavailable
61
Engine Long Block This part replaces 420150338.
420150394
Unavailable
58
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
60
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
