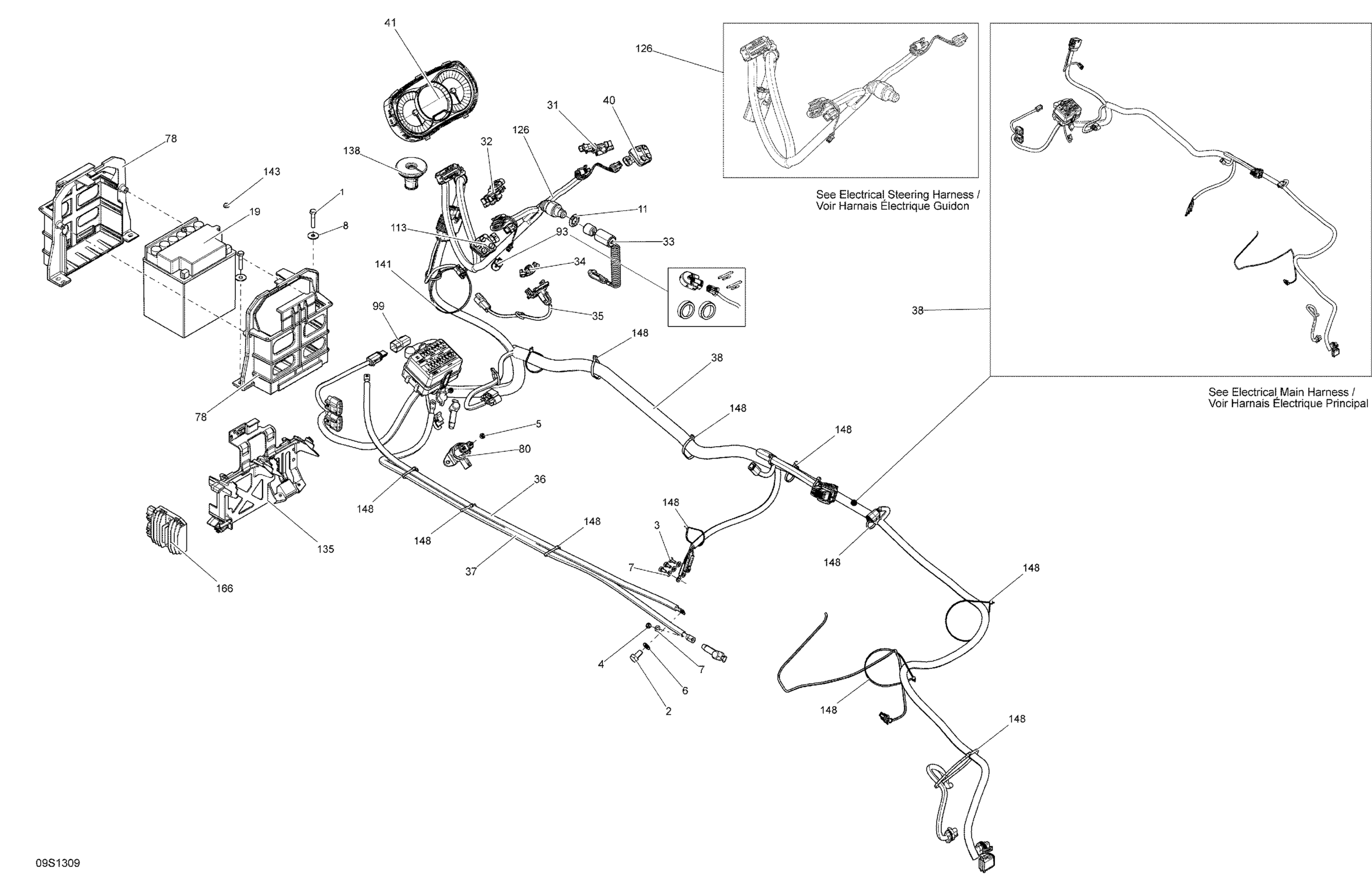

Sea-doo RXP-X 260 & RS, 2013 Electrical System Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

Unavailable

2

Hex. Screw M10 X 20, Scotch Grip

207302060

Unavailable

3

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

4

Elastic Stop Nut M6, Brass

232561200

Unavailable

6

Flat Washer 10 mm, Stainless

234000600

Unavailable

7

Stainless Flat Washer M6

234061600

$0.25

8

Flat Washer 8 mm, Stainless

234082600

Unavailable

11

Safety Nut (DESS Switch)

278002963

$2.72

19

Battery, 30 Amperes

278001882

Unavailable

31

Throttle Position Sensor

278002283

Unavailable

32

LH Throttle Sensor

278002284

Unavailable

33

Safety Lanyard, Learning Key

278002484

Unavailable

34

O.T.A.S Actuator

278003537

Unavailable

35

O.T.A.S. Sensor Ass'y

278003009

Unavailable

36

Battery Ground Cable

278003270

Unavailable

37

Cable-Starter

278003398

Unavailable

38

Wiring Harness

278002943

Unavailable

40

Switch RH Mode/Set

278002602

Unavailable

41

LCD Gauge X This part replaces 278002716.

278002961

Unavailable

78

Battery Support

278003306

Unavailable

80

Starter Relay

278003012

Unavailable

93

Start/Stop Switch Kit

295501137

Unavailable

99

Diagnostic Connector

278002704

Unavailable

113

Switch LH VTS/Sport/Eco | Package STD

278002767

Unavailable

126

Steering Harness Ass'y | Includes 1 to 2055

278002951

Unavailable

135

Support

278003048

Unavailable

138

Cable Grommet

293720092

Unavailable

141

Tie Wrap 368 mm

293750008

$0.85

143

Battery Bolt Kit

250000282

$2.95

148

Tie Rap, 533 mm

293750047

Unavailable

148

Tie-Rap 180 mm

414115200

$0.09

166

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92
